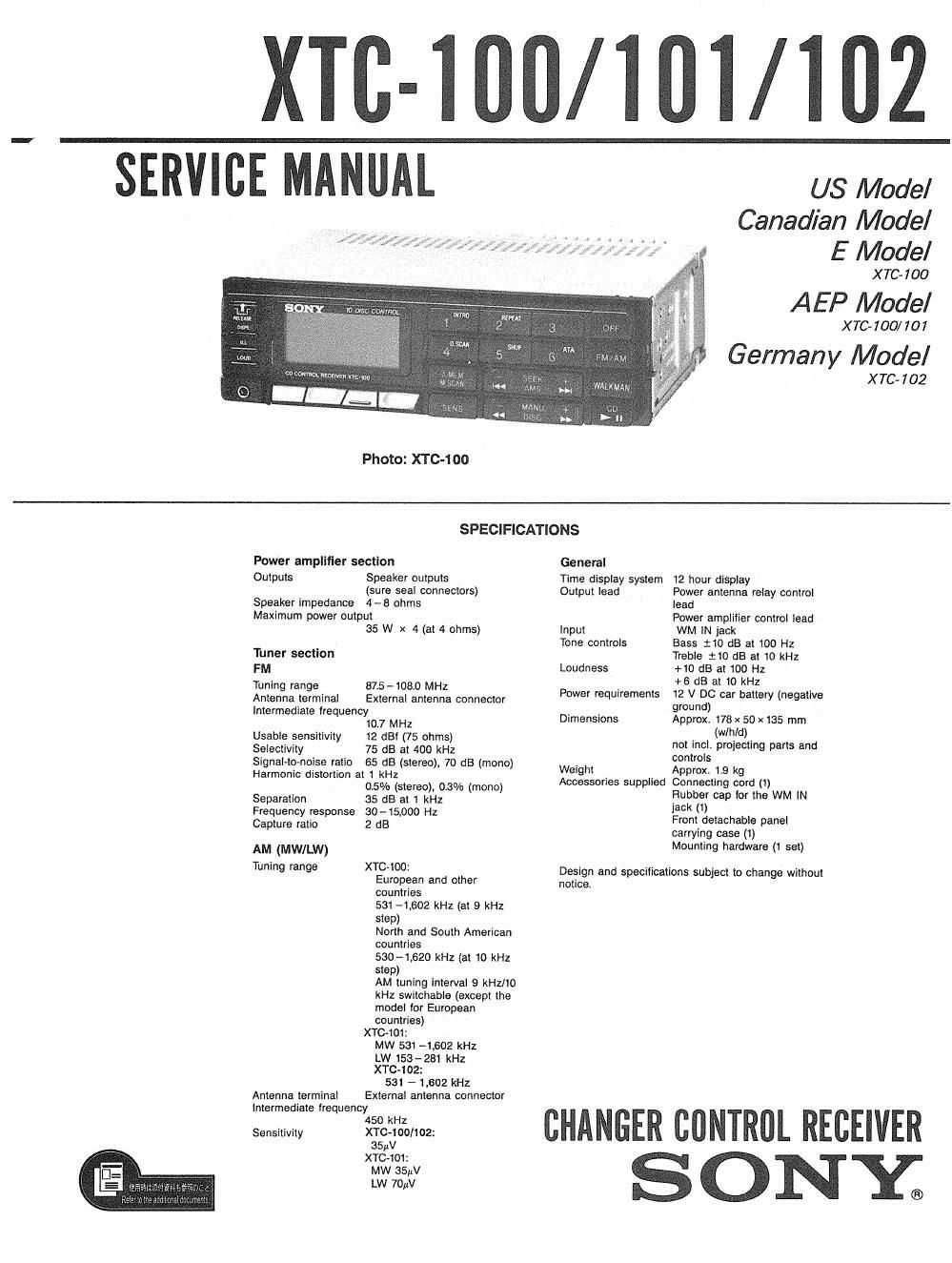

Sony xtc 102 service manual

Page 2

XTC-100/101/102

TABLE OF CONTENTS

Section m Page
Specifications .................................. 1
1. GENERAL

Location and Function of Controls ----------- 3

Setting the Clock ......................... 4

CD Operation .............. 4

Radio Reception ------------ 5

WALKMAN Connection 6

Installation 7

Connections ............................. 9
2. ADJUSTMENTS ........................ 11
3. DIAGRAMS
3-1. [C501 (,u PD7551 66F-2483B9),

[€801 ( u PD6125AG-7 29)

Functional DCSCIIptiOn .................... 14
3.2, Block Diagram ........................... 17
3-3. Schematic Diagram ....................... 21
3-4 Printed Wiring Boards - Main Section - ~ 24
3-51 Printed Wiring Boards

- Display, Power Section - --------------- 29
4. EXPLODED VIEWS .................... 37
5. ELECTRICAL PARTS LIST - 39

SAFETY-RELATED COMPONENT WARNINGI!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB«
LISHED BY SONY.

ATTENTION AU COMPQSANT AYANT RAPPORT
A LA SECURITE!

LES composmrs IDENTIFIES PAR uue MAROUE A
sun LES DIAGRAMMES SCHEMATIOUES ET LA LISTE
DES PIECES som- cmnouss POUR LA sécunn'é
DE FONcTIONNEMENT. NE REMPLACER CEs com.
POSANTS QUE PAR DES PIECES sonv DONT LES
Muménos sum DONNES DANS c: MANUEL ou
DANS LES SUPPLEMENTS Puaués PAR SONY.
