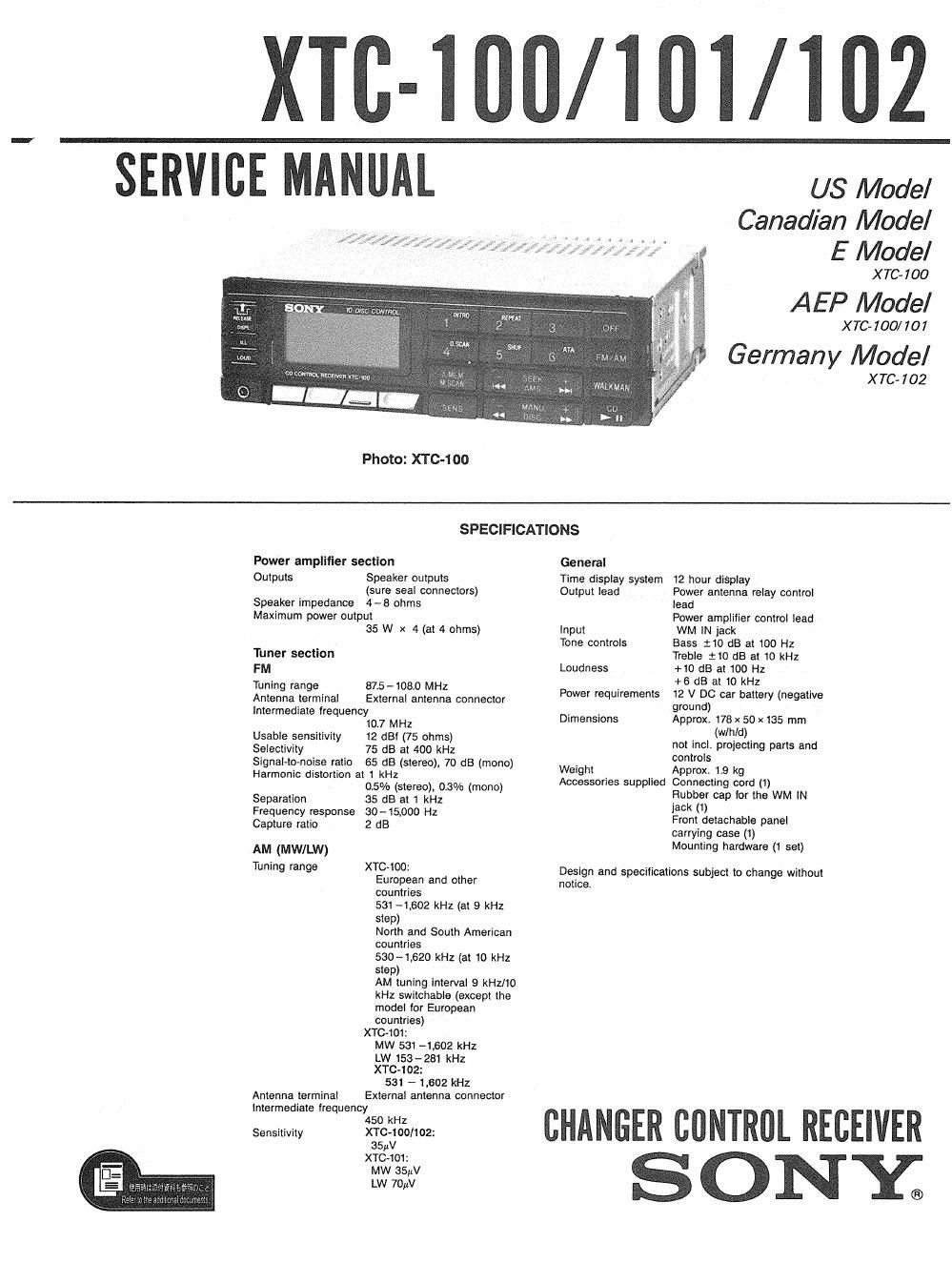

Sony xtc 100 service manual
This is the 53 pages manual for sony xtc 100 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony xtc 100 service manual (Ocr-read)
Page 2
XTC-100/101/102
TABLE OF CONTENTS
Section % Page
Specifications .................................. 1
1. GENERAL
Location and Function of Controls ---------- 3
Setting the Clock ......................... 4
CD Operation .............. 4
Radio Reception ------------ 5
WALKMAN Connection 6
Installation 7
Connections ............................. 9
2_ ADJUSTMENTS ........................ 1 1
3. DIAGRAMS
3-1l [0501 (,u PD75516GF-248389),
IC801 ( ,u PD61 25AG-7 29)
Functional Description ~~~~~~~~~~~~~~~~~~~~ 14
3.2. Block Diagram ........................... 17
33. Schematic Diagram ....................... 21
34. Printed Wiring Boards - Main Section - - 24
3-5. Printed Wiring Boards
- Display, Power Section - -------------- 29
4_ EXPLODED VIEWS .................... 37
5. ELECTRICAL PARTS LIST - 39
SAFETY-RELATED COMPONENT WARNINGI!
COMPONENTS IDENTIFIED BV MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB«
LISHED BY SONV.
ATTENTION AU COMPQSANT AYANT RAPPORT
A LA SECURITE!
LES composmrs IDENTIFIES PAR UNE MAROUE A
sun LES DIAGRAMMES SCHEMATIOUES ET LA LISTE
DES PIECES som- cmnouss POUR LA sécumré
DE FONCTIONNEMENT. NE REMPLACER CEs com.
POSANTS QUE PAR oss PIECES sonv DONT LES
NUMEROS sour DoNNés DANS c: MANUEL ou
DANS LES SUPPLEMENTS PUBLIES PAR SONY.
