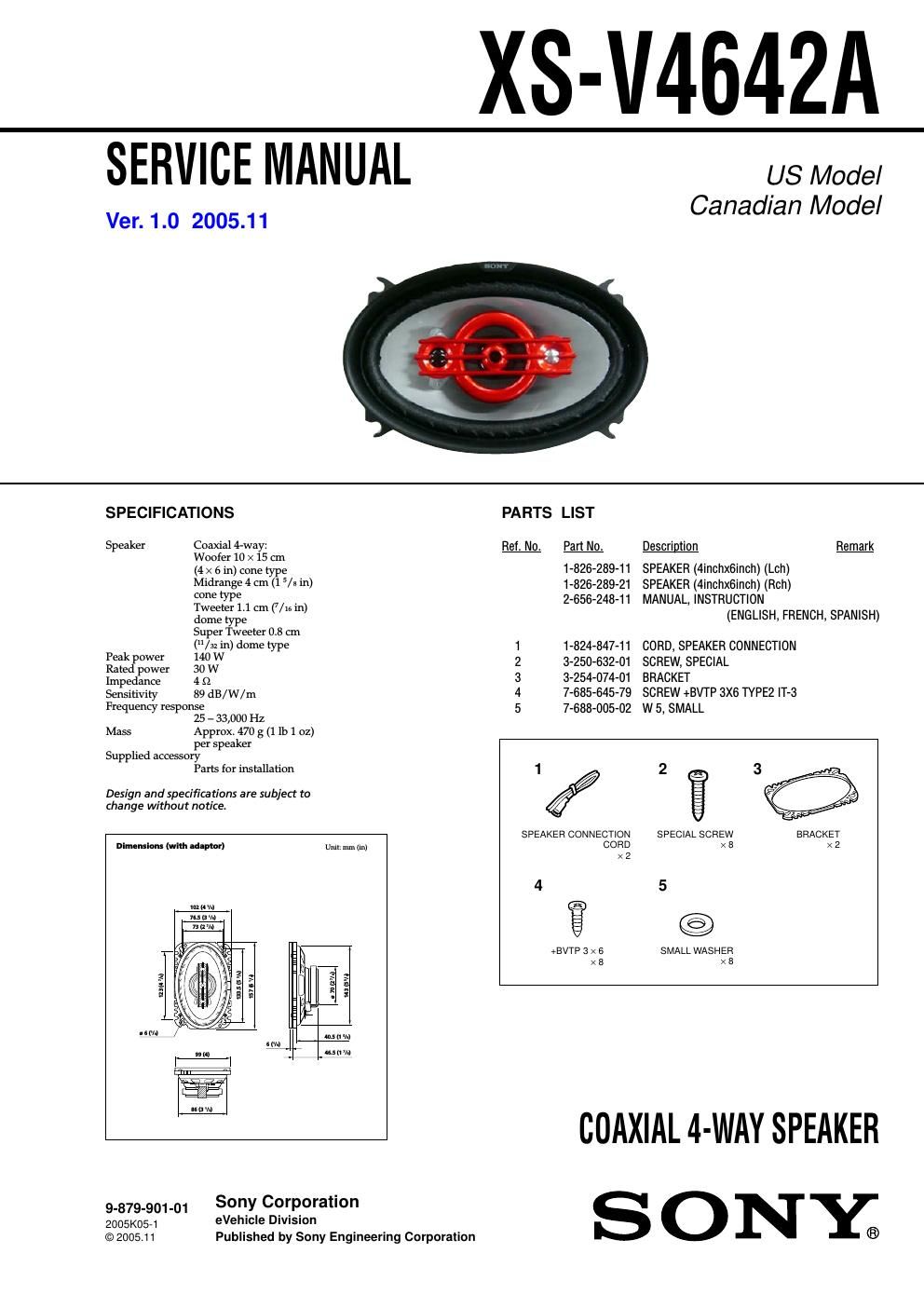

XS-V4642A

SERVICE MANUAL

Ver. 1.0 2005.11

US Model
Canadian Model

SPECIFICATIONS

Speaker Coaxial 4-way:
Woofer 10 x 15 cm
(4 x 6 in) com: type
Midrangc 4 Cm (1 5/5 in)
cone type
Twee 1.1 cm Wis in)
dome type
Super Tweeter 0.8 Cm
(/32 in) deme type
Peak power 140 w
Rated pewer 30 w
impedance 4 9
Sensitivity 89 dB/W/m
Frequency response
25 - 33,000 Hz

Mass Apprex. 470 g (1 1b 1 ez)
per speaker
Supplied accessury

Parts for installation

Design and specifications are subject to
change without notice.

PARTS LIST

Ref. No. Part No.
1-826-289-11
1-826-289-21
2-656-248-11

1-824-847-11
3-250-632-01
3-254-074-01
7-685-645-79
7»688-005-02

macaw-A

Descrigiion Remark

SPEAKER (4inchx6inch) (Lch)
SPEAKER (4inchx6inch) (Rch)
MANUAL, INSTRUCTION
(ENGLISH, FRENCH, SPANISH)

CORD, SPEAKER CONNECTION
SCREW, SPECIAL

BRACKET

SCREW +BVTP 3X6 TYPE2 lT-3
W 5, SMALL

Dlmensions (wlth ldlpol) Unit mm rin)

uu <4 v.»
7ssuld
u (1 u.)

we (1 v.)

45 5 mi

1 /
SPEAKER CONNECTION

CORD
X2

«mm

+BVTP3X6
X8

SPECIAL SCREW BRACKET
X 8 X 2

©

SMALL WASHER
X 8

9.879.901_01 Sony Corporation
2005mm eVehicle Division

@2005. Published by Sony Engineering Corporation

COAXIAL 4-WAY SPEAKER
S 0 NY;

Page 2

XS-V4642A

REVISION HISTORY

Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised

page.

Ver. Date Description of Revision

1.0 2005.1 1 New
