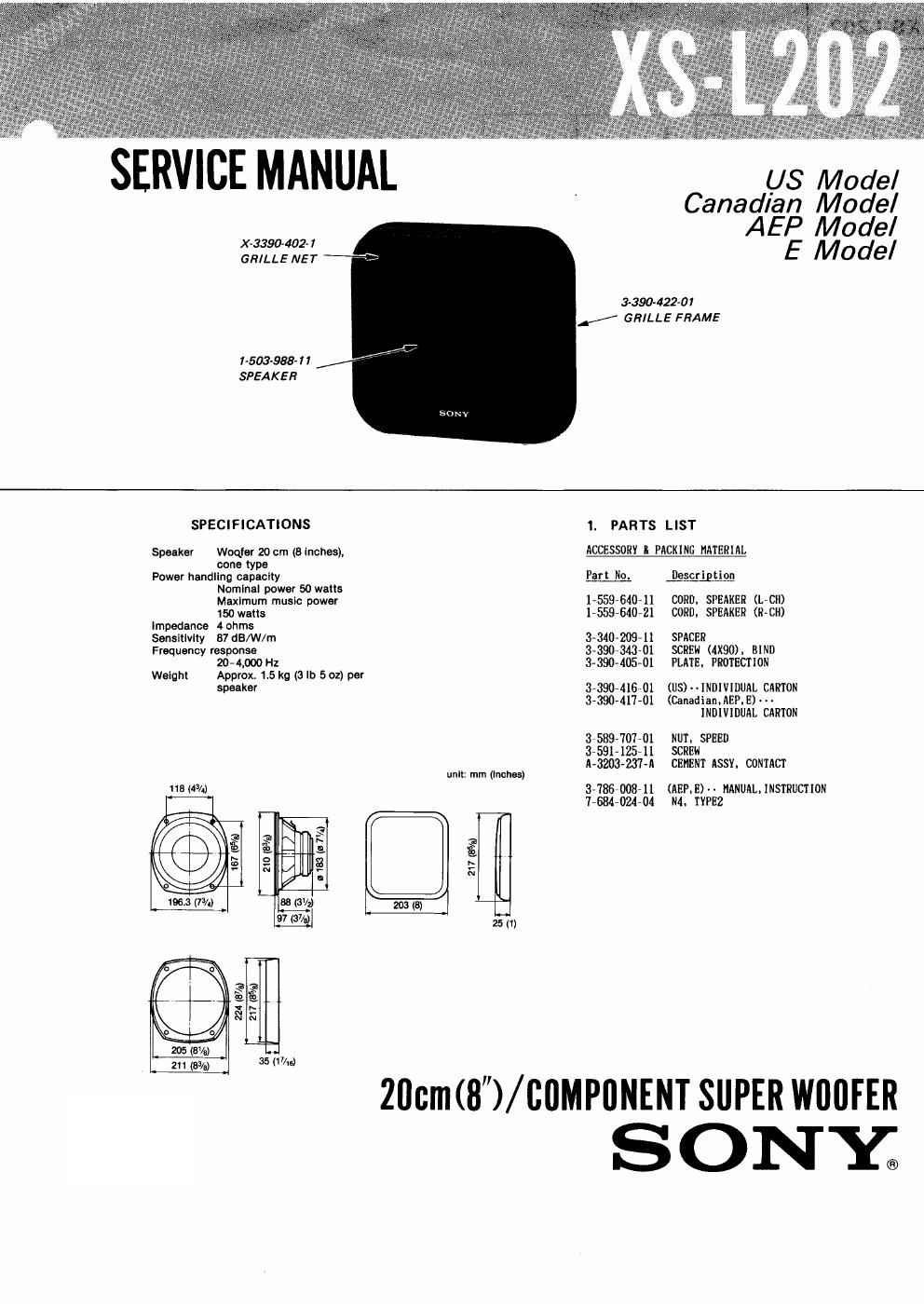

SERVICE MANUAL

US Model
Canadian Model
AEP Model

X-3390-402-1
GRILLE NET E Made,
3-390-422-01
/ GRILLE FRAME
1-503-988-11
SPEAKER
SPECIFICATIONS 1, PARTS LIST

Speaker quier 20 cm (8 Inches),
cone type

Power handllng capeclty
Nomlnal power 50 wens
Mexlmum muslc power
150 watts

Impedance 4ohms

Sensltlvlly 87 dB/W/m

Frequency response
2074.000 Hz

Weight Approx. 1.5 kg (3 lb 501) per
speaker

unll: mm (Inches)

new.)
3 3 3
E a», _ E §
§ E § 2
I w
I
35(st 209(3)
976%) 21371)
'5
E ,
L
E
3571'

ACCESSORY In PACKING MATERIAL

Part No. Descrigtion

1-559-640-11 com), SPEAKER (L-CH)
175597640721 com), SPEAKER (R-CH)

3-340»209-ll SPACER
349034301 SCREW (4X90). BIND
3-390405701 PLATE, PROTECTION

3-390-415~01 (US) - - INDIVIDUAL CARTON
3390-41701 (Canadian, AEP. E) - - -
INDIVIDUAL CANTON

7589-707-01 NUT, SPEED
-591-125-11 SCREW
-3203-23I-A CEMENT ASSI. CONTACT

486008-11 (AEP,E)~- HANUALJNSTRUCIION
>684-024-04 N4, TYPEZ
