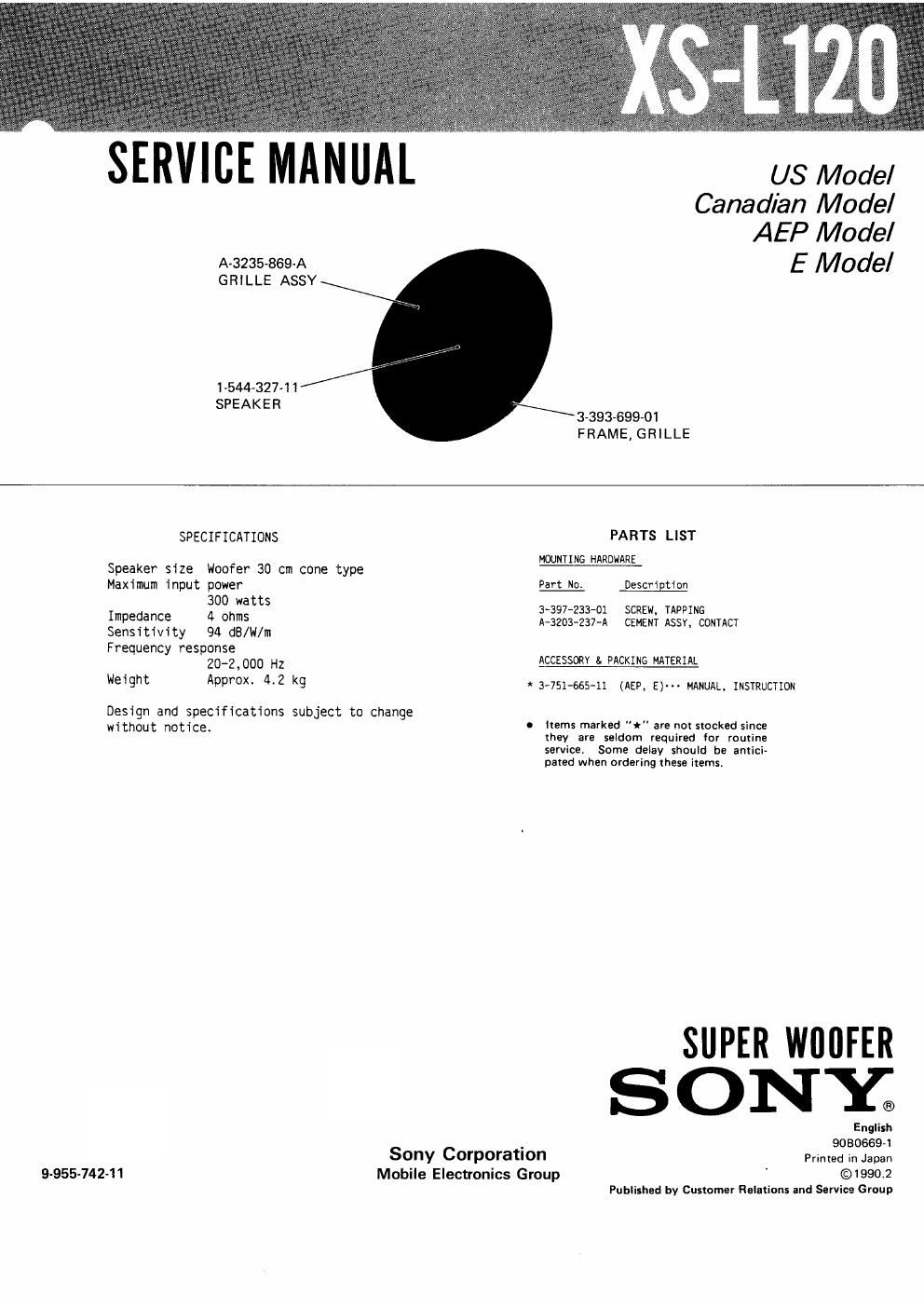

SERVICE MANUAL us Model
Canadian Model
AEP Model
E Model
A-3235-869-A
G R l L LE ASSY
1-544-327-11
SPEAKER
3-393-699-01
FRAME, GRILLE
SPECIFICATIONS
Speaker size Woofer 30 cm cone type
Maximum input power
300 watts
Impedance 4 ohms
Sensitivity 94 dB/W/m
Frequency response
20-2,000 Hz
Weight Approx. 4.2 kg
Design and specifications subject to change
PARTS LIST
W
Part Not Description
3-397-233-01 SCREW. TAPPTNG
A'3203-237-A CEMENT ASSY, CONTACT
ACCESSORY & PACKING MATERIAL
3-751-665-11 (AEP, E)-- MANUAL, INSTRUCTION
Items marked "1'" are not stocked since
without notice. . .
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items
SUPER WllllFER
SONY;
English
_ 90306694
Sony Corporatlon Primed in Japan
9-955-742-11 Mobile Electronics Group ' ©1990:
Published by Customer Relations and Service Group
