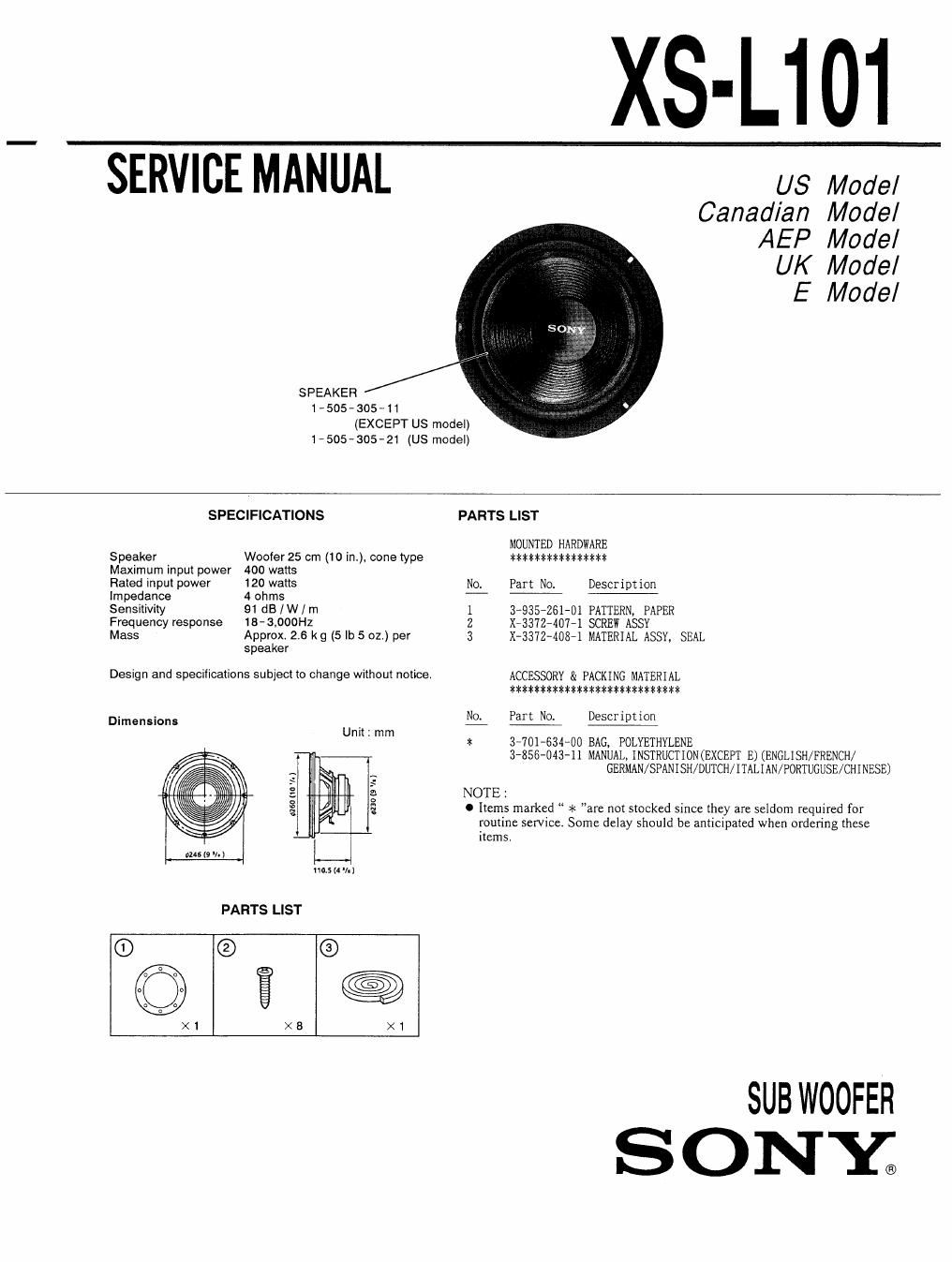

Page 1
XS-L101
SERVICE MANUAL
SPEAKER
1-505-305-11
(EXCEPT US model)
1' 505 - 305' 21 (US model)
US Model
Canadian Model
AEP Model
UK Model
E Model
SPECIFICATIONS
Speaker Wooier 25 cm (10in.),cone type
Maximum input power 400 watts
Rated input power 120 watts
Impedance 4 ohms
Sensitivity 91 dB/W l m
Frequency response 18-3,000Hz
Mass Approx. 2.6 k g (5 lb 5 oz.) per
speaker
Design and specifications subject to change without notice
Dimensions _
Unii : mm
mo (9 v, )
0.5 (4 .11)
PARTS LIST
(D (9 @
E @
X8 X1
PARTS LIST
MOUNTED HARDWARE
****************
Part No, Description
3-935-261-01 PATTERN, PAPER
X-3372-407-I SCREW ASSY
X3372»408*1 MATERIAL ASSY, SEAL
onxw-A z
.0
ACCESSORY & PACKING MATERIAL
HimHununwmtwlrun
No. Part No. Description
-)(-
3-701-634-00 BAG, POLYETHYLENE
3-856-043-11 MANUAL, INSTRUCTIOMEXCEPT E) (ENGLISH/FRENCH/
GERMAN/ SPANISH/ DUTCH/ I TALI AN/ PORTUGUSE/ CHINESE)
NOTE :
0 Items marked >i< "are not stocked since they are seldom required for
routine service. Some delay should be anticipated when ordering these
items
SUB WOOFER
SONY
