Sony xs l 100 service manual
This is the 1 pages manual for sony xs l 100 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

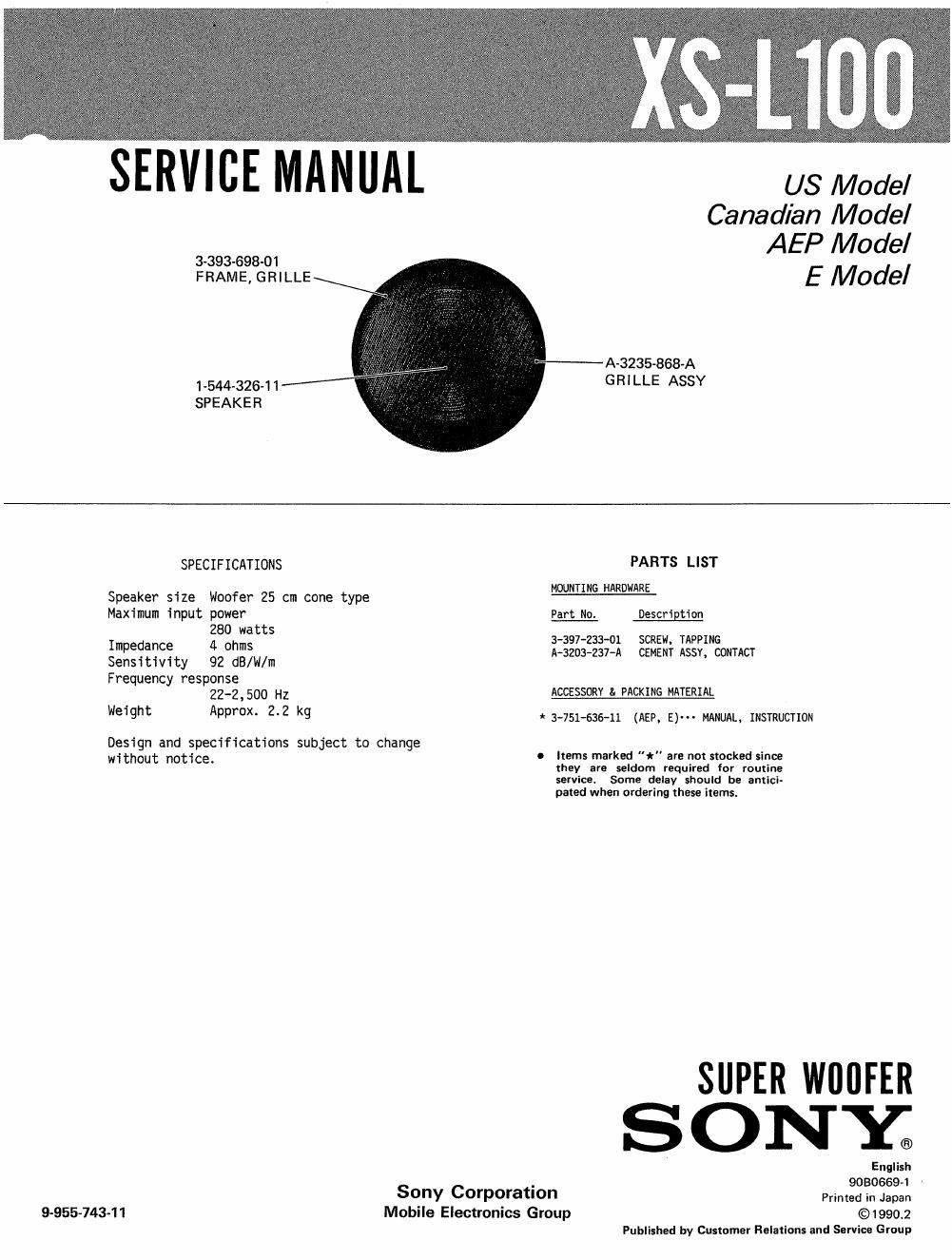

Extracted text from sony xs l 100 service manual (Ocr-read)
Page 1
ERI
3-393-69801
FRAME, GRILLE
1-544-326-1 1
SPEAKER
US Model
Canadian Model
AEP Model
E Model
A-3235-868-A
G R l L L E ASSY
SPECIFICATIONS
Speaker size Woofer 25 cm cone type
Maximum input power
280 watts
Impedance 4 ohms
Sensitivity 92 dB/W/In
Frequency response
22-2,500 Hz
Weight Approx. 2.2 kg
Design and specifications subject to change
without notice.
PARTS LIST
W
Part No. DescriEtion
3-397-233-01 SCREW, TAPPING
A~3203~237-A CEMENT ASSY, CONTACT
ACCESSURV & PACKING MATERIAL
* 3-751-636-11 (AEP, E)~- MANUAL, INSTRUCTION
0 Items marked *" are not stocked since
they are seldom required for routine
service. Some delay should be antlci-
pated when ordering these items.
SUPER WflllFER
SONE
English
. 90306694
Sony Corporation Printed in Japan
9-955-743-11 Mobile Electronics Group ©199o.2
Published by Customer Relations and Service Group
