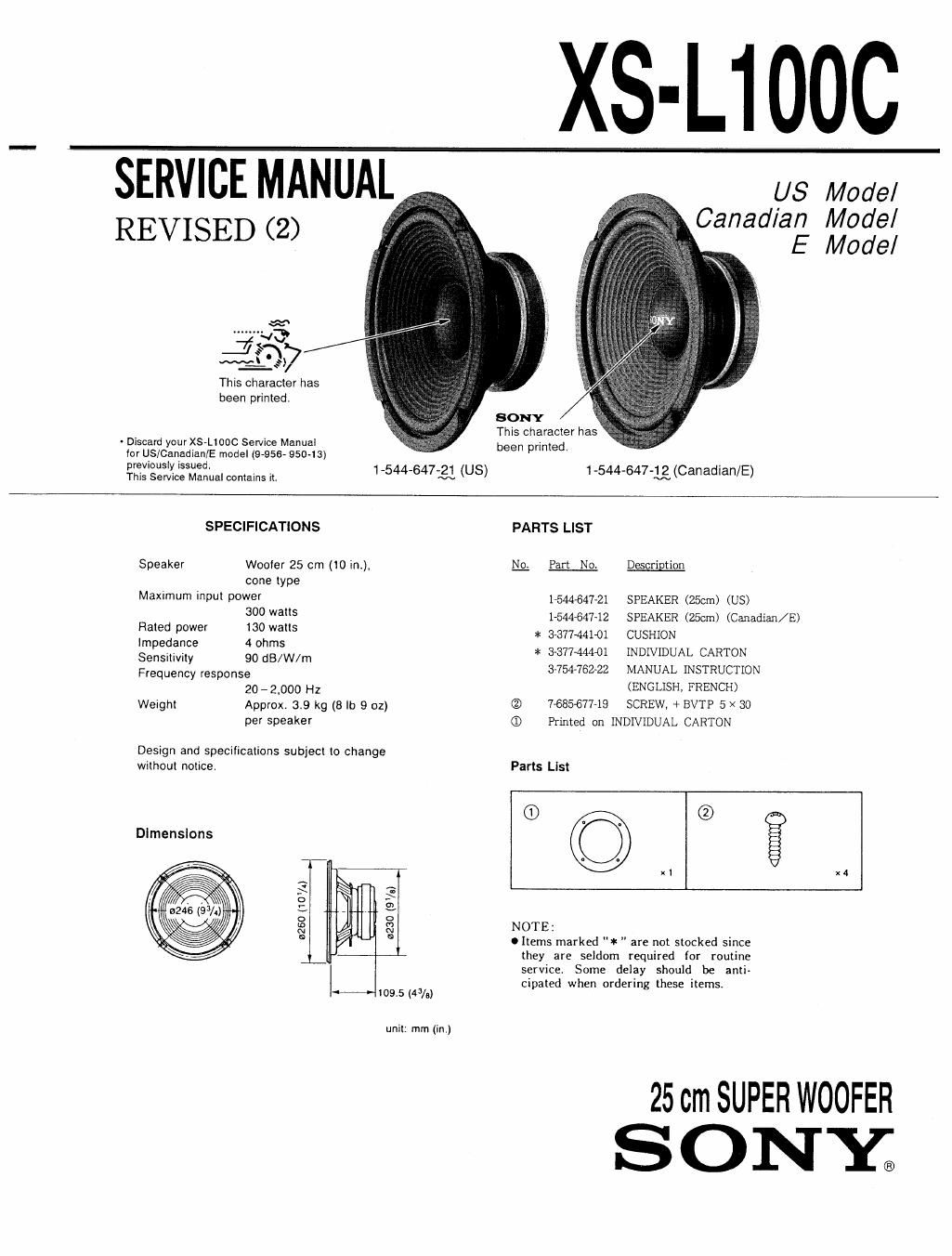

SERVICE MANUAL
REVISED (2)
This character has
been printed.
' Discard yourXS-LIOOC Service Manual
for US/Canadian/E model (9-958- 950-13)
previously issued,
This Service Manual contains it.
1-544-647-31 (US)
SPECIFICATIONS
Speaker Wooler 25 cm (10 in).
cone lype
Maximum input power
300 watts
Rated power 130 watts
Impedance 4 ohms
Sensitivity 90 dB/W/m
Frequency response
20 - 2.000 H2
Weight Approx. 39 kg (8 lb 9 oz)
per speaker
Design and specificalions subject Io change
without notice,
Dlmenslons
(was (91/
\\ V//
0230 (975)
H260 (10%)
109.5 (43/5)
unll; mm (in)
SONY
This character has
been printed.
XS-L100C
U8 Model
Canadian Model
E Model
1 "544647112, (Canadian/E)
PARTS LIST
& Part No. Description
154464721 SPEAKER (252m) (US)
1-544647-12 SPEAKER (250m) (Canadian/E)
* 34377414101 CUSHION
* 3-377-44401 INDIVIDUAL CARTON
3-754'762-22 MANUAL INSTRUCTION
(ENGLISH. FRENCH)
® 7685437749 SCREW, + BVTP 5 x 30
(D Printed on INDIVIDUAL CARTON
Parts Us!
(D (D
xl x4
NOTE:
O Items marked 1: are not stocked since
they are seldom required for routine
service Some delay should be anti-
cipated when ordering these items
25 cm SUPER WOOFER
SONY;
