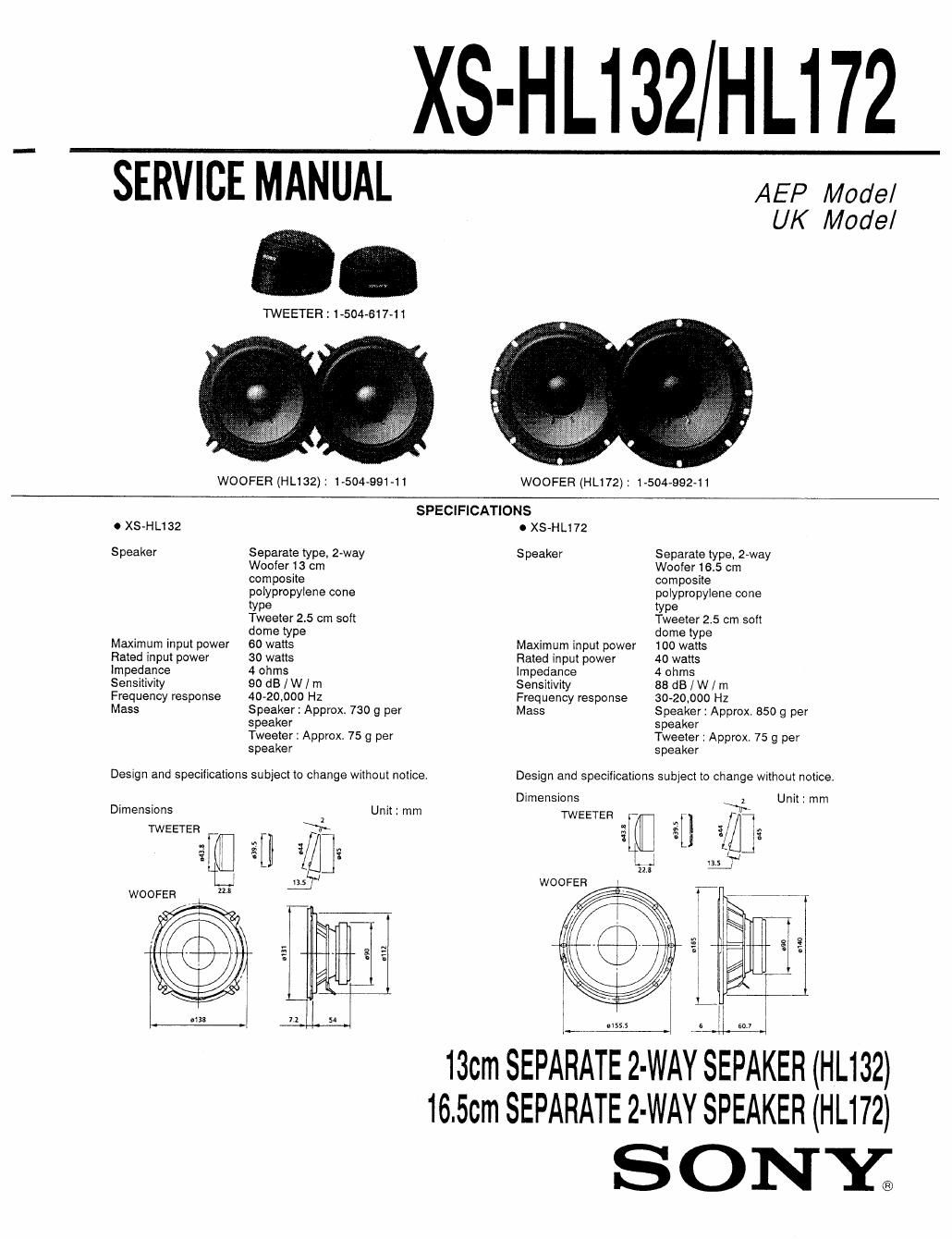

XS-HL132 HL172
SERVICE MANUAL
AEP Model
UK Mode/
TWEETER: 1504-61 7~11
WOOFER (HL132): 1504-99141
WOOFER (HL172) : 1-504-992-11
o XS-HL132
Speaker
Maximum input power
Rated input power
Impedance
Sensitivity
Frequency response
Mass
Design and specifications subject to change without notice,
Dimensions
TWEETER
SPECIFICATIONS
Separate type. 2~way
Woofer 13 cm
composite
polypropylene cone
W99
Tweeter 2.5 cm soft
dome type
60 watts
30 watts
4 ohms
90 dB / W / m
40-20000 Hz
Speaker: Approx 730 g per
speaker
Tweeter: Approx. 75 g per
speaker
Unit: mm
.19 5
ii it?
as i
L-geil
if"
O XS-HL172
Speaker
Maximum input power
Rated input power
Impedance
Sensitivity
Frequency response
Mass
Separate type. 2»way
Woofer 16,5 cm
composite
polypropyiene cone
type
Tweeter 2.5 cm soft
dome type
100 watts
40 watts
4 ohms
88 dB / W / m
(BO-20.000 HZ
Speaker: Approx. 850 g per
speaker
Tweeter : Approx 75 g per
speaker
Design and specifications subject to change without notice.
Dimensions
1 Unit: mm
TWEETER (H1 [n i :ZJ]
50,7
13cm SEPARATE 2-WAY SEPAKER (HL132)
16.50m SEPARATE 2-WAY SPEAKER (HL172)
SONY;
