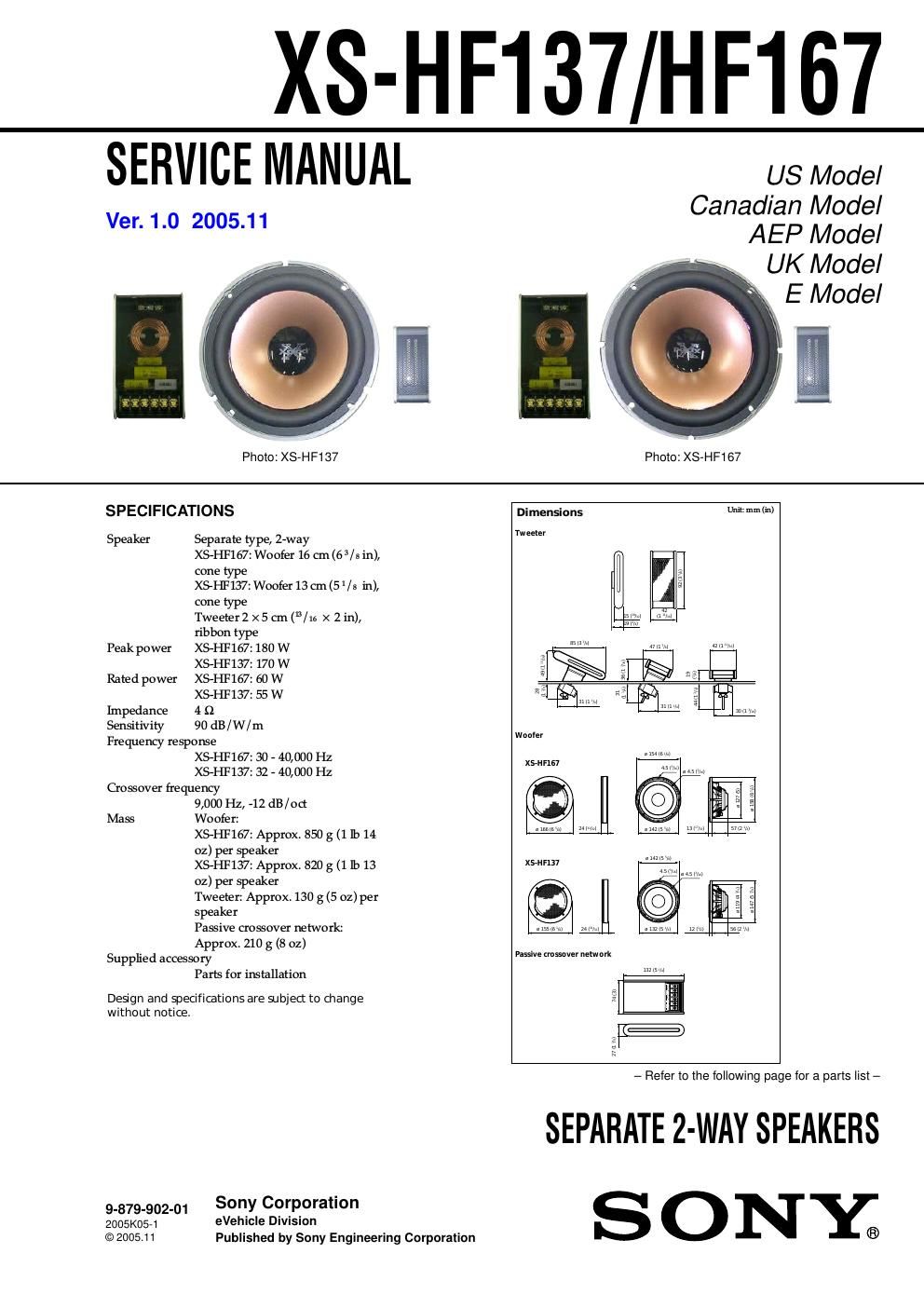

Sony xs hf 167 service manual
This is the 4 pages manual for sony xs hf 167 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony xs hf 167 service manual (Ocr-read)
Page 1
2 XS-HF137/HF167 1-479-508-11 SPEAKER NETWORK UNIT(PASSIVE CROSSOVER NETWORK) (XS-HF167) 1-479-509-11 SPEAKER NETWORK UNIT (PASSIVE CROSSOVER NETWORK) (XS-HF137) 1-826-257-11 SPEAKER (16cm) (Woofer) (XS-HF167: US, Canadian, E) 1-826-258-11 SPEAKER (13cm) (Woofer) (XS-HF137: US, Canadian, E) 1-826-259-11 SPEAKER (2x5cm) (Tweeter) 1-826-260-11 SPEAKER (16cm) (Woofer) (XS-HF167: AEP, UK) 1-826-261-11 SPEAKER (13cm) (Woofer) (XS-HF137: AEP, UK) 2-651-562-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH, TRADITIONAL CHINESE, SIMPLIFIED CHINESE, ARABIC, PERSIAN, INDONESIAN, THAI, MALAY, KOREAN) (US, Canadian, E) 2-651-562-21 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH, GERMAN, SWEDISH, DUTCH, PORTUGUESE, ITALIAN, POLISH, GREEK, RUSSIAN) (AEP, UK) 1 2-651-560-01 PAPER PATTERN (WO) (XS-HF167: US, Canadian, AEP, UK) 1 2-651-560-11 PAPER PATTERN (WO) (XS-HF167: E) 1 2-651-575-01 PAPER PATTERN (XS-HF137: US, Canadian, AEP, UK) 1 2-651-575-11 PAPER PATTERN (XS-HF137: E) 2 X-2067-965-1 GRILLE ASSY (XS-HF167) 2 X-2067-968-1 GRILLE ASSY (XS-HF137) 3 7-685-666-79 SCREW +BVTP 4X30 TYPE2 IT-3 4 X-2067-966-1 SCREW ASSY 5 X-2067-967-1 BRACKET ASSY 6 2-651-561-01 PAPER PATTERN (TW) (US, Canadian, AEP, UK) 6 2-651-561-11 PAPER PATTERN (TW) (E) PARTS LIST Ref. No. Part No. Description Remark 3 + BVTP4 × 30 × 4 for PASSIVE CROSSOVER NETWORK 4 6 5 BAR SCREW (M4 × 50) × 2 WASHER × 2 SPRING WASHER × 2 WING NUT × 2 BRACKET (A) × 2 BRACKET (H) × 2 BRACKET (L) × 2 PAPER PATTERN (TW) × 1 SCREW ASSY × 1 BRACKET ASSY × 1 for TWEETER 23 1 PAPER PATTERN × 1GRILLE ASSY × 2 + BVTP 4 × 30 × 8 for WOOFER
Page 2
3 XS-HF137/HF167 MEMO
