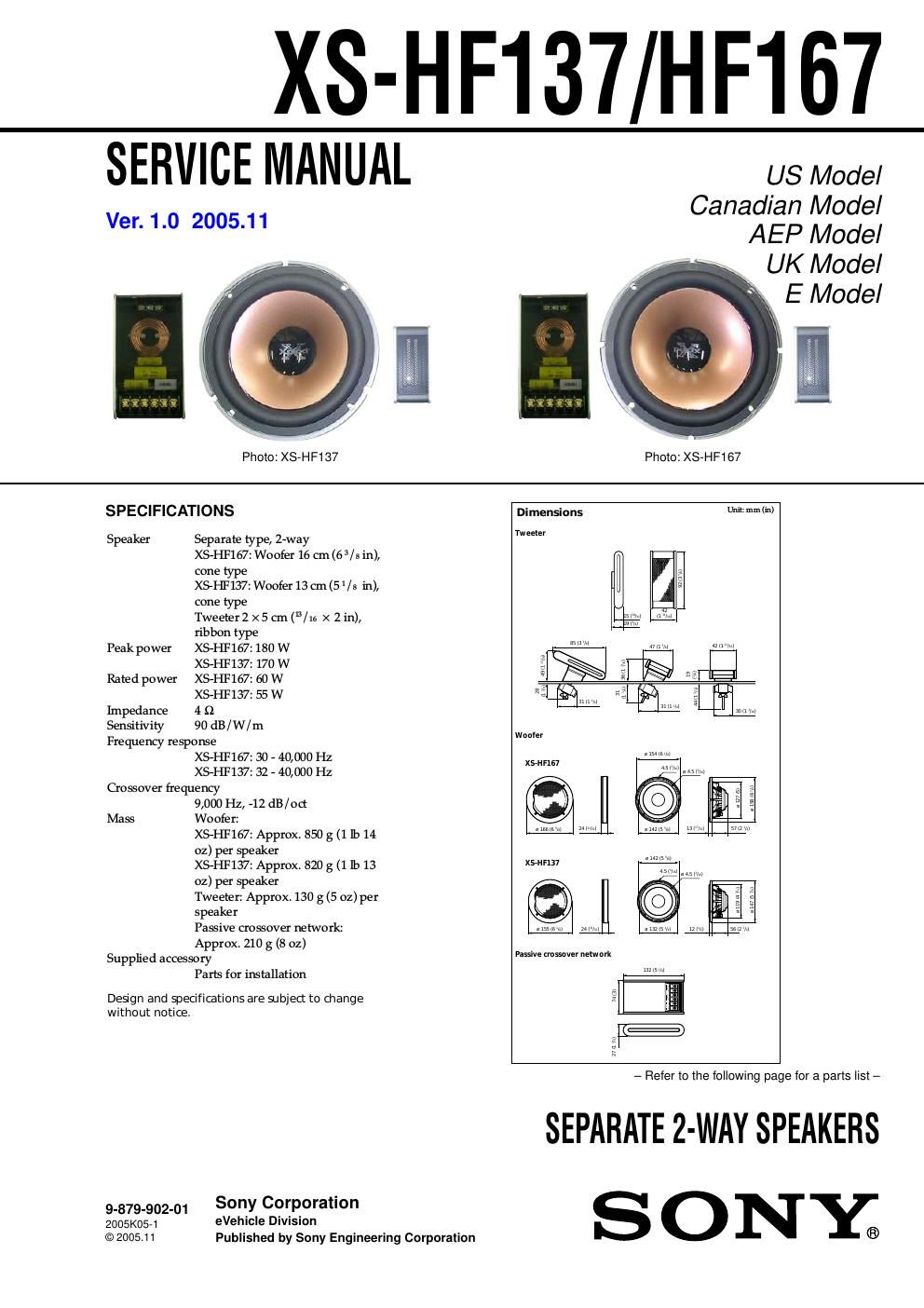

sony xs hf 137 service manual

Extracted text from sony xs hf 137 service manual (Ocr-read)


Page 1

2 XS-HF137/HF167 1-479-508-11 SPEAKER NETWORK UNIT(PASSIVE CROSSOVER NETWORK) (XS-HF167) 1-479-509-11 SPEAKER NETWORK UNIT (PASSIVE CROSSOVER NETWORK) (XS-HF137) 1-826-257-11 SPEAKER (16cm) (Woofer) (XS-HF167: US, Canadian, E) 1-826-258-11 SPEAKER (13cm) (Woofer) (XS-HF137: US, Canadian, E) 1-826-259-11 SPEAKER (2x5cm) (Tweeter) 1-826-260-11 SPEAKER (16cm) (Woofer) (XS-HF167: AEP, UK) 1-826-261-11 SPEAKER (13cm) (Woofer) (XS-HF137: AEP, UK) 2-651-562-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH, TRADITIONAL CHINESE, SIMPLIFIED CHINESE, ARABIC, PERSIAN, INDONESIAN, THAI, MALAY, KOREAN) (US, Canadian, E) 2-651-562-21 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH, GERMAN, SWEDISH, DUTCH, PORTUGUESE, ITALIAN, POLISH, GREEK, RUSSIAN) (AEP, UK) 1 2-651-560-01 PAPER PATTERN (WO) (XS-HF167: US, Canadian, AEP, UK) 1 2-651-560-11 PAPER PATTERN (WO) (XS-HF167: E) 1 2-651-575-01 PAPER PATTERN (XS-HF137: US, Canadian, AEP, UK) 1 2-651-575-11 PAPER PATTERN (XS-HF137: E) 2 X-2067-965-1 GRILLE ASSY (XS-HF167) 2 X-2067-968-1 GRILLE ASSY (XS-HF137) 3 7-685-666-79 SCREW +BVTP 4X30 TYPE2 IT-3 4 X-2067-966-1 SCREW ASSY 5 X-2067-967-1 BRACKET ASSY 6 2-651-561-01 PAPER PATTERN (TW) (US, Canadian, AEP, UK) 6 2-651-561-11 PAPER PATTERN (TW) (E) PARTS LIST Ref. No. Part No. Description Remark 3 + BVTP4 × 30 × 4 for PASSIVE CROSSOVER NETWORK 4 6 5 BAR SCREW (M4 × 50) × 2 WASHER × 2 SPRING WASHER × 2 WING NUT × 2 BRACKET (A) × 2 BRACKET (H) × 2 BRACKET (L) × 2 PAPER PATTERN (TW) × 1 SCREW ASSY × 1 BRACKET ASSY × 1 for TWEETER 23 1 PAPER PATTERN × 1GRILLE ASSY × 2 + BVTP 4 × 30 × 8 for WOOFER

Page 2

3 XS-HF137/HF167 MEMO
