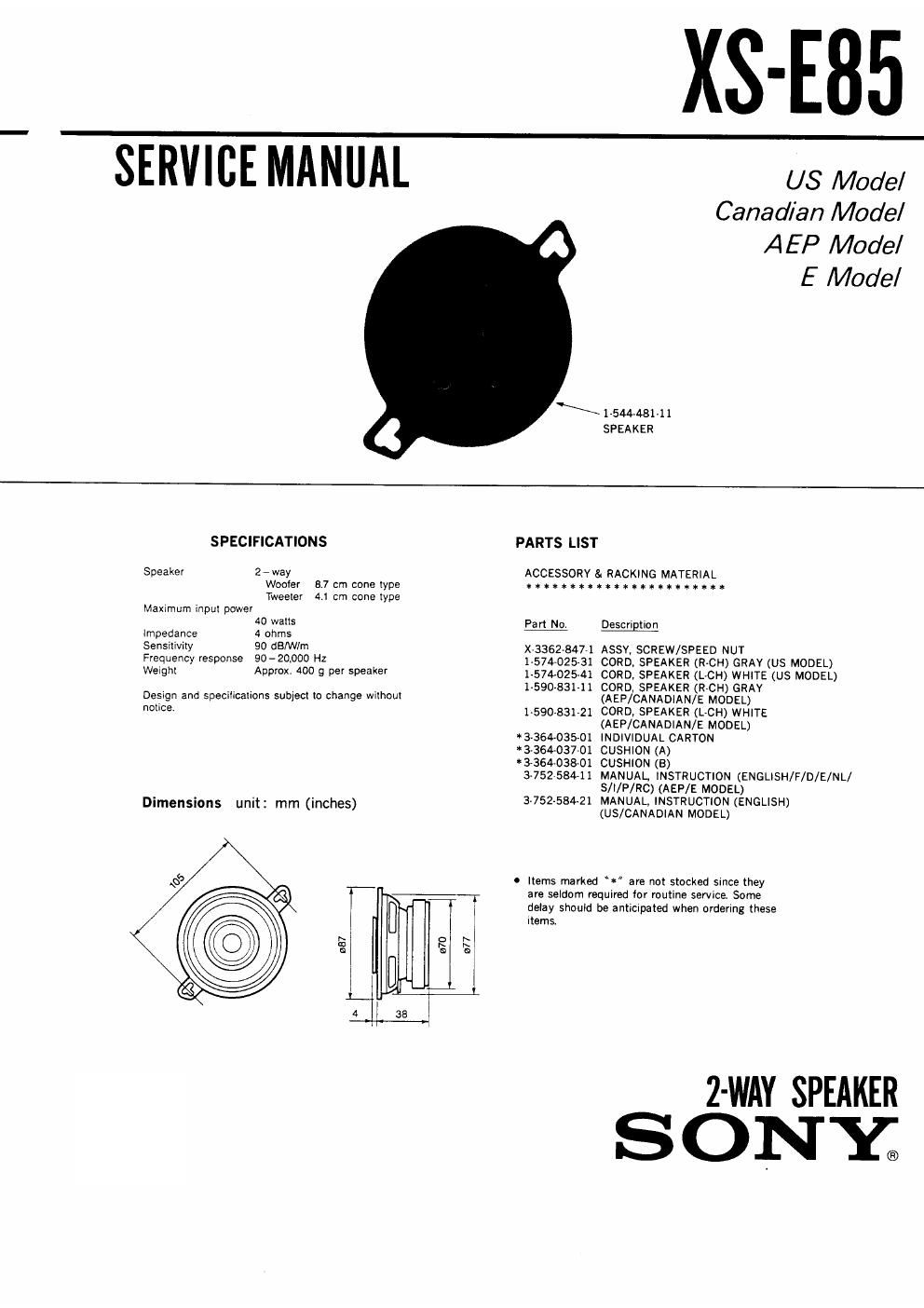

Page 1
XS-E85
SERVICE MANUAL
US Model
Canadian Model
AEP Model
E Model
\ 154448141
SPEAKER
SPECIFICATIONS
Speaker 2 - way
Wooier 8] cm cone type
Tweeter 41 cm cone type
Maximum Input power
40 watts
Impedance 4 ohms
Sensitivity 90 dB/Wlm
Frequency response 90- 20,000 Hz
Weight Approx. 400 g per speaker
Design and specihcations subject to change without
notice,
Dimensions unit: mm (inches)
(:51)
PARTS LIST
ACCESSORY & RACKING MATERIAL
artlfiilttarttttkfidwthsktfilttitk
Part NO.
X73362-847-I
1-57402531
1-574025-41
1-590831711
1-590831'21
* 3364-03501
" 3-364-037-01
* 3364-03801
3-752 584-11
3~752-58¢21
Description
ASSY, SCREW/SPEED NUT
CORD, SPEAKER (R-CH) GRAY (us MODEL)
CORD, SPEAKER (L~CH) WHITE (us MODEL)
CORD. SPEAKER (R-CH) GRAY
(AEP/CANADIAN/E MODEL)
CORD, SPEAKER (L-CH) WHITE
(AEP/CANADIAN/E MODEL)
INDIVIDUAL CARTON
CUSHION (A)
CUSHION (a)
MANUAL, INSTRUCTION (ENGLISH/F/D/E/NL/
S/I/P/RC) (AEP/E MODEL)
MANUAL, INSTRUCTION (ENGLISH)
(US/CANADIAN MODEL)
0 Items marked V are not stocked sInce they
are seldom requlred Ior routine semce. Some
delay should be antICIpated when ordering these
items
2-WAY SPEAKER
S ON Y;
Page 2
XS-E85
Right speaker Left speaker
[ Power amplifier etc, ]
Advantages of MultI-speakers
Car stereo
Englith
. 9100413~
Sony Corporation my in Jam;
9-956-22142 Mobile Electronics Group C 1991. 4
_2 ,7 Published by Customer Relations and Service Group
