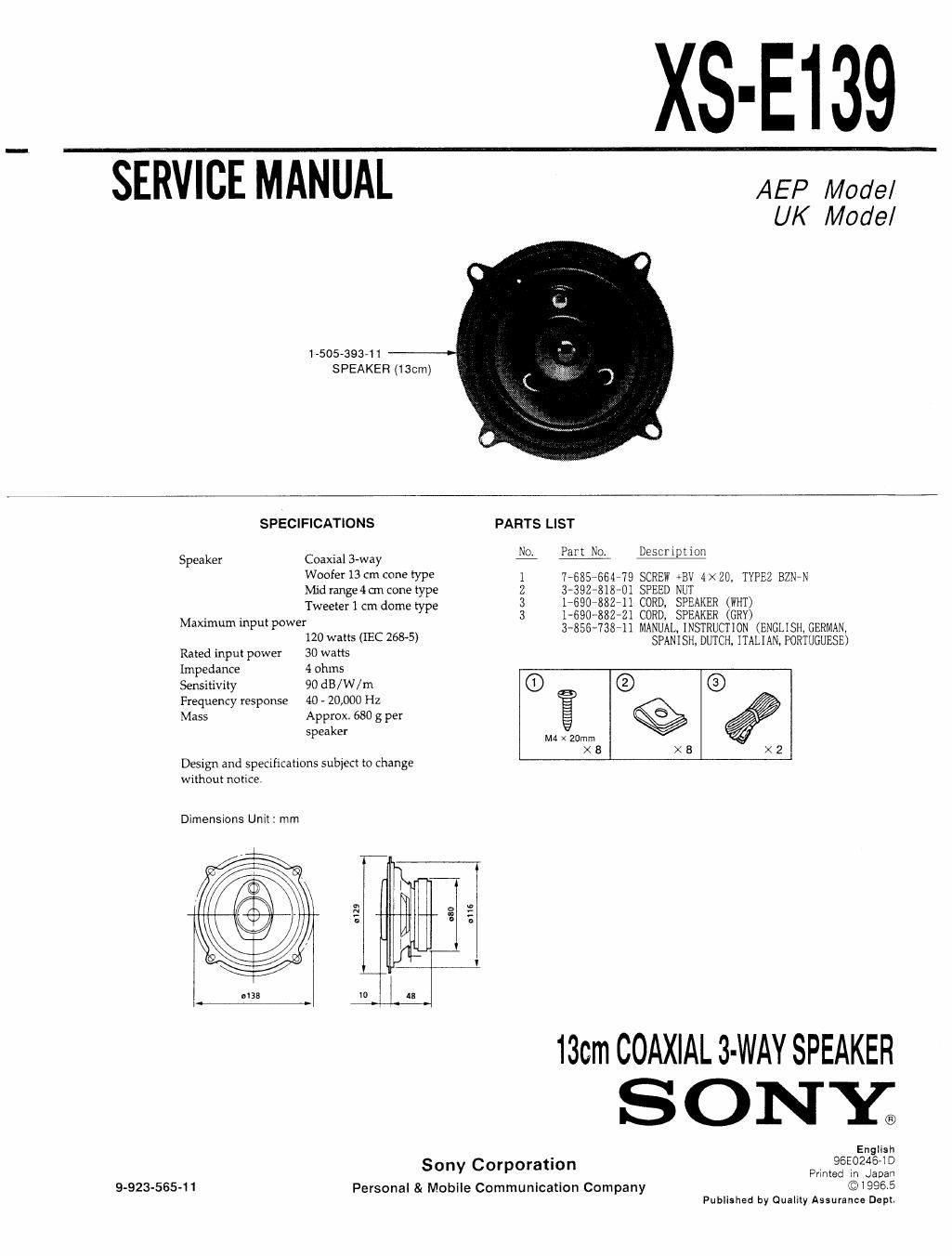

Page 1
XS-E139
SERVICE MANUAL
1-505-393-11
SPEAKER (130m)
AEP Model
UK Model
SPECIFICATIONS
Speaker Coaxial 3-way
Woofer 13 cm cone type
Mid range 4 cm cone type
Tweeter I cm dome type
Maximum input power
120 watts (IEC 2686)
Rated input power 30 watts
Impedance 4 ohms
Sensitivity 90 dB/ W/ m
Frequency response 40 - 20,000 Hz
Mass Approx. 680 g per
speaker
Design and specifications subject to change
without notice
Dimensions Unit: mm
«119
r
E:
030
PARTS LIST
Part No. Description
L
I 7-685-664-79 SCREW +BV 4X20. TYPEZ BZN'N
2 34924818-01 SPEED NUT
3 1,590,882, CORD, SPEAKER (WI-IT)
3 I-690~88Z~21 CORD, SPEAKER (GRY)
3-856-738-11 MANUAL, INSTRUCTION (ENGLISH. GERMAN,
SPANISH, DUTCH. ITALIAN, PORTUGUESE)
(D (9 ®
®
X3 X8 X2
«15
0 48
13cm COAXIAI. 3-WAY SPEAKER
S O N Y ®
. _ EngHsh
5°"v WWW Wines-9;:
9'923'555' Personal 8. Moblle Communication Company ©19965
Published by Quality Assurance Dept
