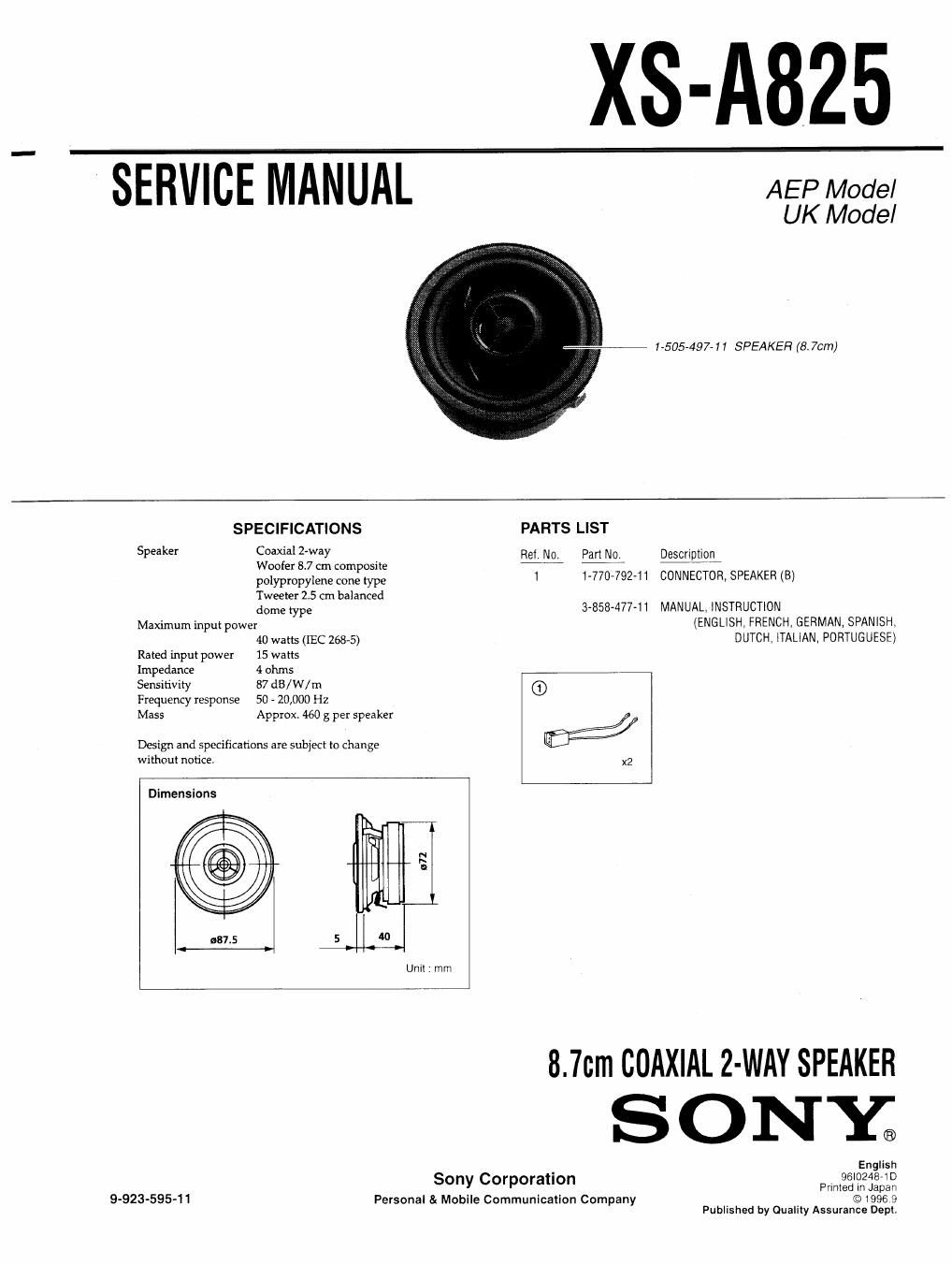

XS-A825
SERVICE MANUAL
AEP Model
UK Model
1505-49741 SPEAKER (8. 70m)
SPECIFICATIONS
Speaker Coaxial Z-way
Woofer 87 cm composite
poiyproperne cone type
Tweeter 2.5 cm balanced
dome type
Maximum input power
40 wats (IEC 268-5)
Rated input power 15 watts
Impedance 4 ohms
Sensitivity 87 dB/W/ m
Frequency response 50 - 20,000 Hz
Mass Approx, 460 g per speaker
Design and specifications are subject to change
without notice.
x2
Dimensions
_ , Q
a
5 I 40
Unit . mm
Sony Corporation
9-923-595-11 Personal & Mobile Communication Company
PARTS LIST
Rel. NE; Part No; Description
1 1-770-792-11 CONNECTOR, SPEAKER (B)
3-858-477-11
@637
MANUAL, INSTRUCTION
(ENGLISH. FRENCH, GERMAN, SPANISH,
DUTCH ITALIAN, PORTUGUESE)
8.76m COAXIAL 2-WAY SPEAKER
SONY®
English
96I0248-I D
Printed In Japan
© 1996 9
Published by Quality Assurance Dept,
