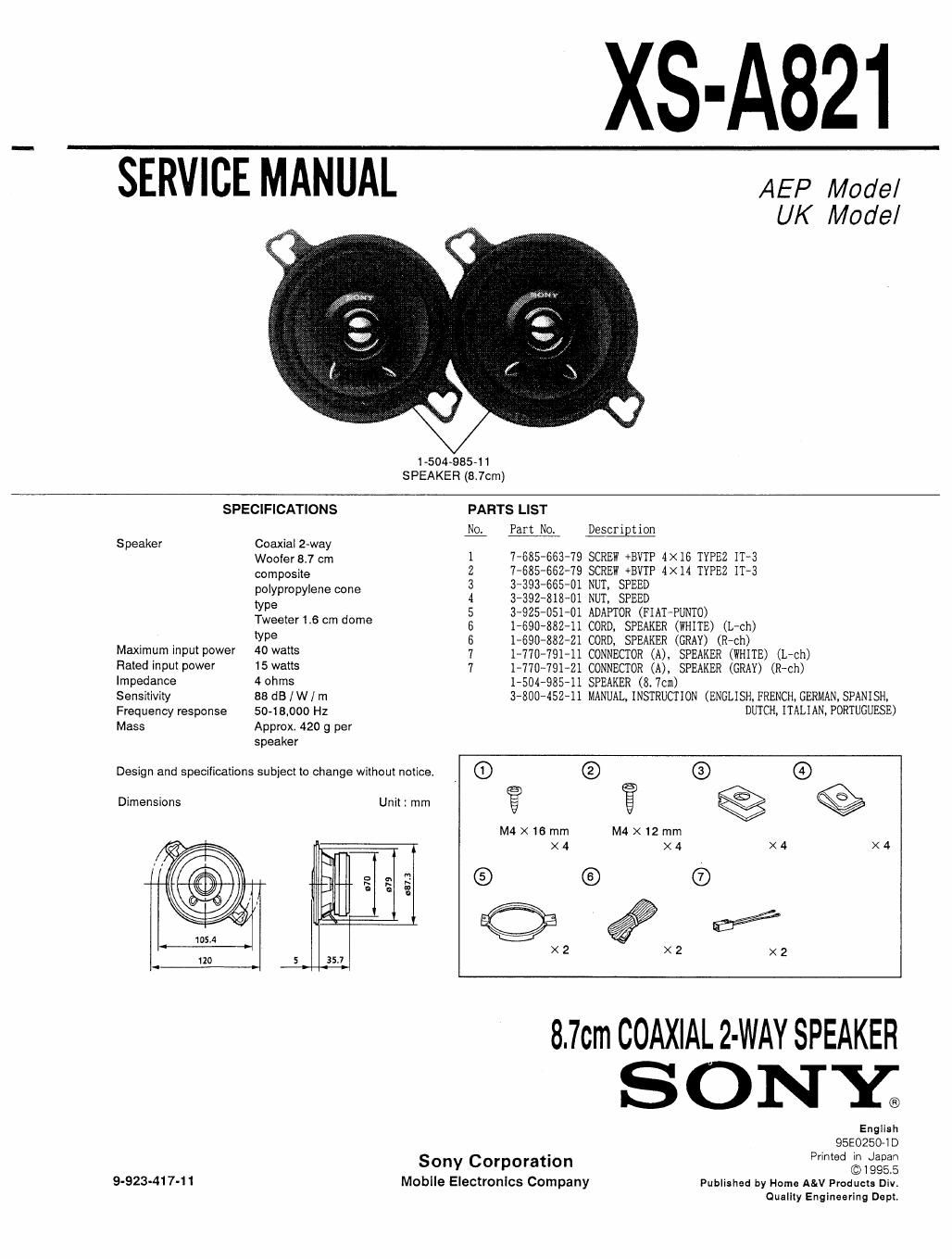

Page 1
XS-A821
SERVICE MANUAL
AEP Model
UK Model
1504-98541
SPEAKER (8.7crn)
SPECIFICATIONS
Speaker
Maximum input power
Rated input power
Impedance
Sensitivity
Frequency response
Mass
Design and specifications subject to change without notice.
Dimensions
Coaxial 2-way
Woofer 8.7 cm
composite
polypropylene cone
type
Tweeter 1.6 cm dome
type
40 watts
15 watts
4 ohms
88 dB / W / rn
50-1 3,000 HZ
Approx. 420 g per
speaker
Unit: mm
7.3
9-923-417-11
Sony Corporation
Mobile Electronics Company
& Part No.
PARTS LIST
Description
7-685-663-79 SCREW +BVTP 4X16 TYPEZ IT~3
7*685-662-79 SCREW +BVTP 4X14 TYPEZ IT-3
3-393-665-01 NUT. SPEED
3-392-818-01 NUT, SPEED
3-925-051-01 ADAPTOR (FIATAPUNTO)
1-690-882-11 CORD. SPEAKER (WHITE) (L-ch)
1-690-882-21 CORD, SPEAKER (GRAY) (R-ch)
1-770-791-11 CONNECTOR (A), SPEAKER (WHITE) (Lch)
1-770-791-21 CONNECTOR (A), SPEAKER (GRAY) (R-ch)
l~504-985*II SPEAKER (8.70m)
3-800-452-11 MANUAL, INSTRUCTION (ENGLISH. FRENCH. GERMAN, SPANISH.
DUTCH, ITALIAN, PORTUGUESE)
qqosmmAwNH
6) ©
? E
M4><16mm M4><12mm
x4 x4
@ 63
Q. %2 6%.
® 6)
X4
8.7cm COAXIAL 2-WAY SPEAKER
S 0 NY.
English
95E0250-1D
Printed in Japan
©19955
Publiuhed by Home A&V Products Div.
Quality Engineering Dept.
