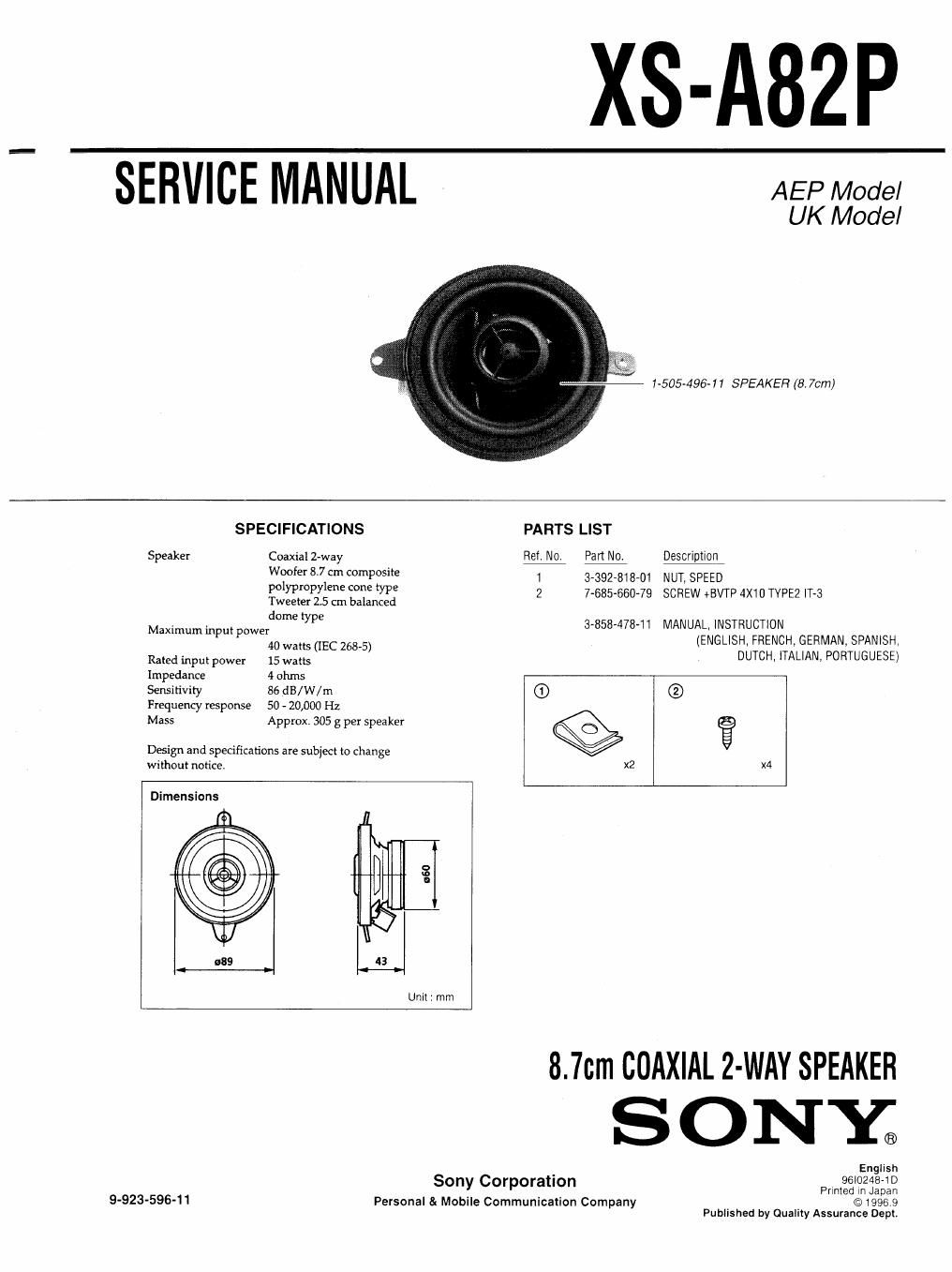

XS-A82P
SERVICE MANUAL
AEP Model
UK Model
1-505-496-11 SPEAKER (8V7Cm)
SPECIFICATIONS
Speaker
Coaxial 2~way
Woofer 8.7 cm composite
polypropylene cone type
Tweeter 2,5 cm balanced
dome type
Maximum input power
Rated input power
Impedance
Sensitivity
Frequency response
Mass
40 watts (IEC 268-5)
15 watts
4 ohms
86 dB/W/m
50 - 20,000 Hz
Approx 305 g per speaker
Design and specifications are subject to change
without notice.
Dimensions
@
060
43
Unil : mm
9-923-596-11
PARTS LIST
Ref. No.
1
Pan No.
Description
3392-818-01 NUT. SPEED
(ENGLISH, FRENCH, GERMAN, SPANISH,
DUTCH ITALIAN, PORTUGUESE)
2 74385-66049 SCREW +BVTP 4X10 TYPEZ IT'S
3-858-478-11 MANUAL, INSTRUCTION
(D (D
©
x2
3
x4
8.76m COAXIAL 2-WAY SPEAKER
SONY;
Sony Corporation
Personal 51 Mobile Communication Company
English
96I0245-1 D
Printed in Japan
© 1996 9
Published by Quality Assurance Dept.
