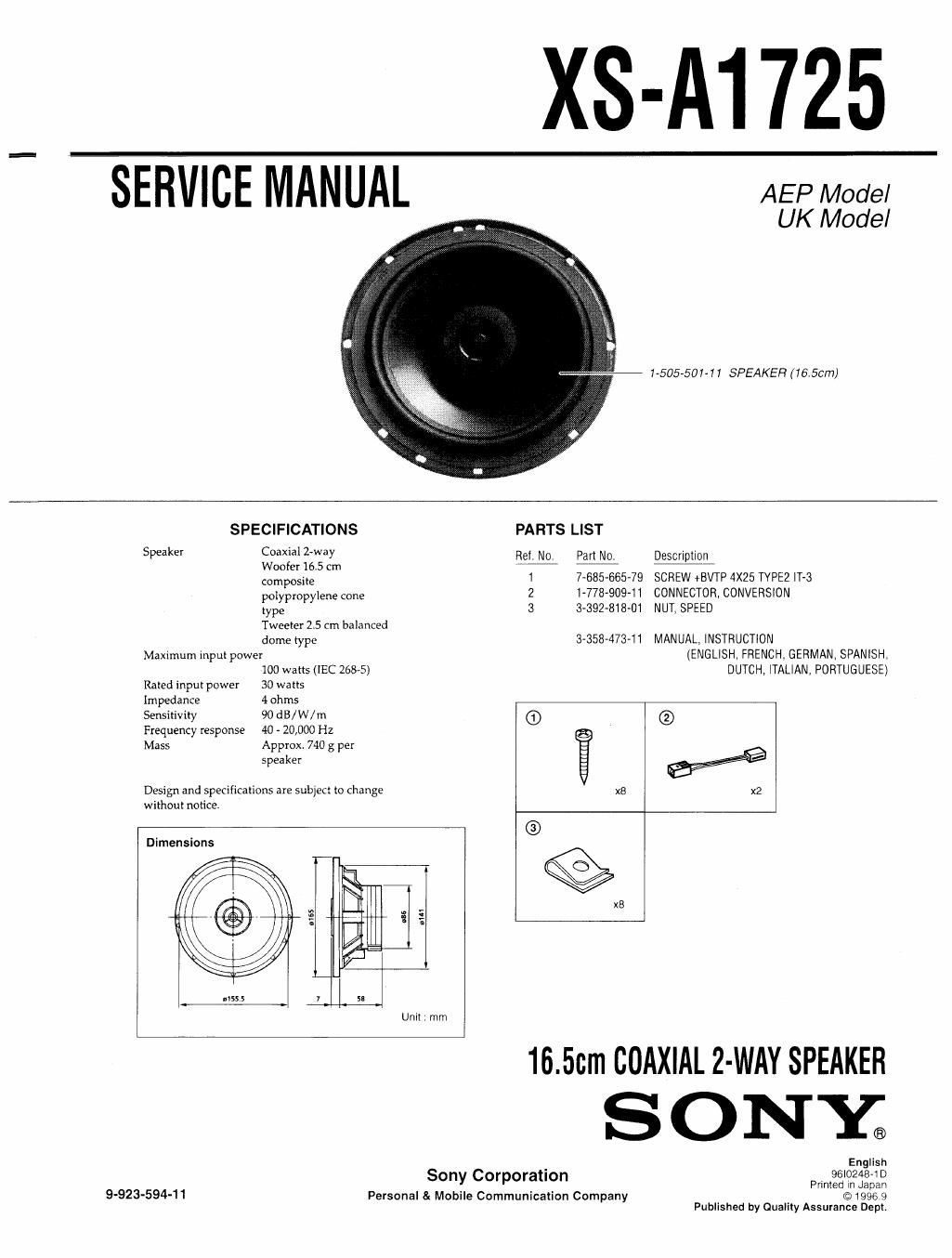

XS-A1725
SERVICE MANUAL
AEP Model
UK Model
1605-50141 SPEAKER (16. 5cm)
SPECIFICATIONS
Speaker Coaxial 2-way
Woofer 16.5 cm
composite
polypropylene cone
type
Tweeter 2.5 cm balanced
dome type
Maximum input power
100 watts (lEC 268-5)
Rated input power 30 watts
Impedance 4 ohms
Sensitivity 90dB/W/m
Frequency response 40 - 20,000 Hz
Mass Approx. 740 g per
spea ker
Design and specifications are subject to change
without notice.
Dimensions
n55
us
all!
Ullll : mm
(ENGLISH, FRENCH. GERMAN SPANISH,
DUTCH, ITALIAN, PORTUGUESE)
PARTS LIST
Ref, No Pan No. Description
1 7-685-665-79 SCREW +BVTP 4X25 TYPE2 IT-3
2 1-778-909-11 CONNECTOR, CONVERSION
3 3-392-818-01 NUT SPEED
3-358-473-11 MANUAL, INSTRUCTION
(D ©
16.50m COAXIAL Z-WAY SPEAKER
SONY;
Sony Corporation
9-923-594-11 Personal 8: Mobile Communicaiion Company
English
96l0248-1 D
Primed in Japan
E?) 19963
Published by Quality Assurance DepL
