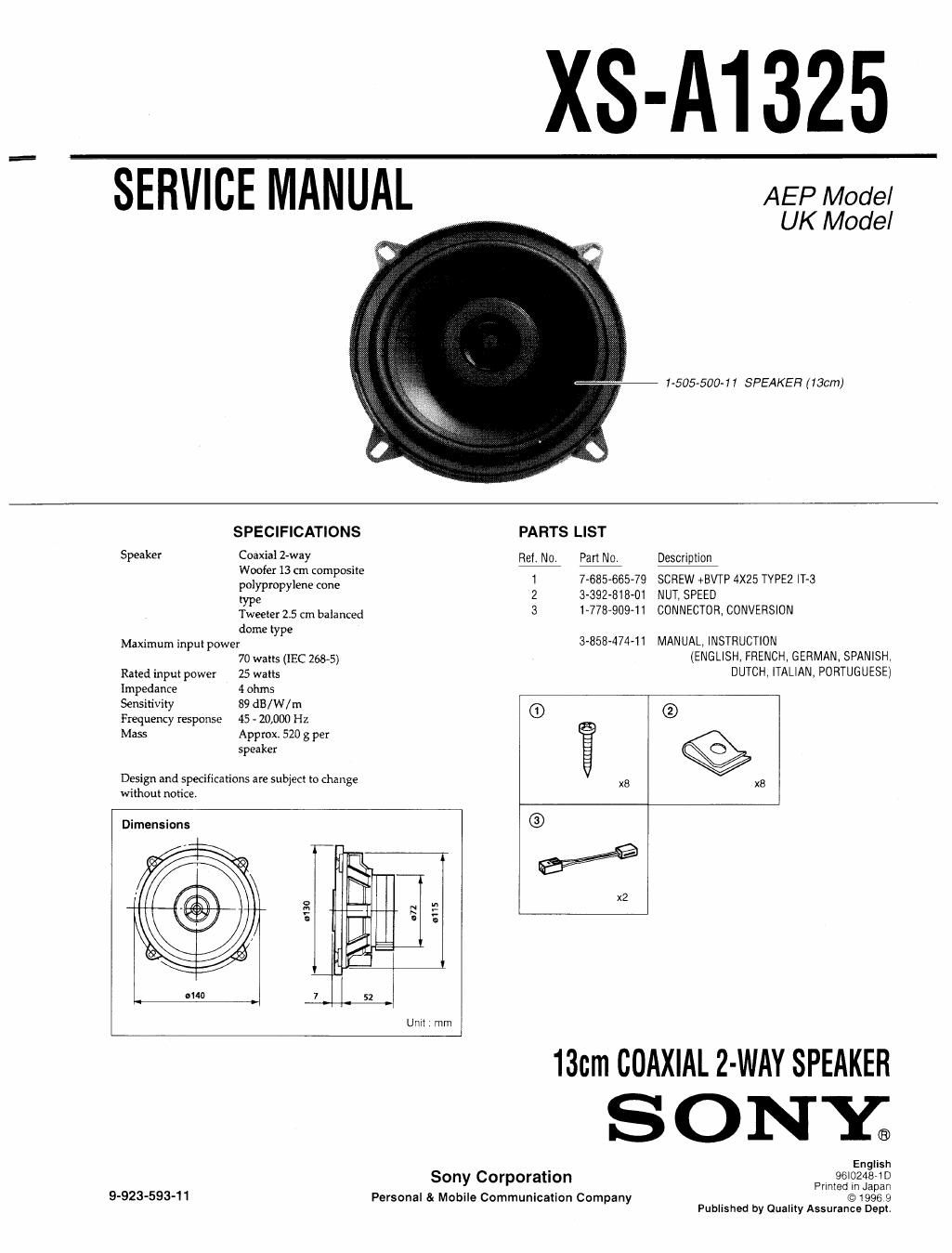

XS-A1325
SERVICE MANUAL
AEP Model
UK Model
1605500 SPEAKER {130m}
SPECIFICATIONS
Speaker Coaxial 2-way
Woofer 13 cm composite
polypropylene cone
YPe
Tweeter 2.5 cm balanced
dome type
Maximum input power
70 watts (IEC 26845)
Rated input power 25 wars
lmpedante 4 ohms
Sensitivity 89 dB/W/m
Frequency response 45 - 20,000 Hz
Mass Approx, 520 g per
speaker
Design and sped fica lions are subject to change
without notice.
Dimensions
I. _.
R Q 2
3 n 3
4.7%
Unitzmm
PARTS LIST
Ref. No. Pan No. Description
1 7-685»665-79 SCREW+BVTP4X25TYPE2IT-3
2 3-392-818-01 NUT,SPEED
3 1-778-909-11 CONNECTORCONVERSION
3-858-474-11 MANUALINSTRUCTION
(ENGLISH, FRENCH, GERMAN, SPANISH,
DUTCH. ITALIAN, PORTUGUESE)
® ®
x8 x8
@
x2
13cm COAXIAL 2-WAY SPEAKER
SONYE
Sony Corporation
9-923-593-11 Personal & Mobile Communication Company
English
96|0248»1 D
Printed in Japan
© 1996 9
