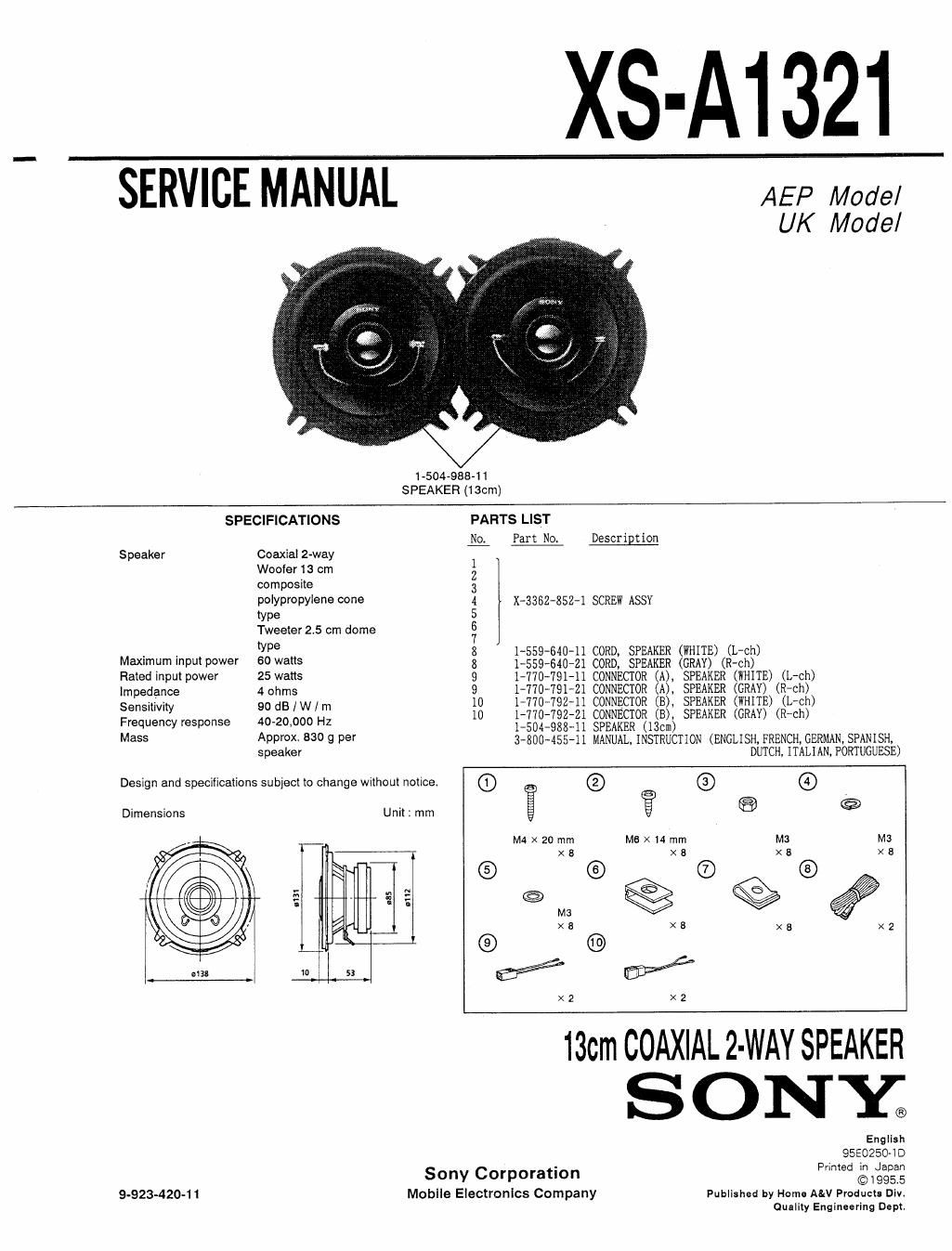

XS-Ai 321
SERVICE MANUAL
AEP Model
UK Model
1-504-9E8-I1
SPEAKER (130m)
SPECIFICATIONS
Speaker Coaxial 2-way
Woofer 13 cm
composiie
polypropylene cone
'YPe
Tweeter 2.5 cm dome
type
Maximum input power 60 watts
Hated input power 25 watts
Impedance 4 ohms
Sensitivity 90 dB / W / n1
Frequency response 40~20,000 Hz
Mass Approx. 830 g per
speaker
Design and specifications subject to change without notice.
Dimensions
Unitzmm
:13!
l
5
'112
10 53
9-923-420-1 1
Sony Corporation
Mobile Electronics Company
& Part No.
PARTS LIST
Descrigtion
X3362-852-1 SCREW ASSY
1-559~640-11 CORD, SPEAKER (WHITE) (L-Ch)
I~559-64U-21 CORD, SPEAKER (GRAY) (R-ch)
1-770-791-11 CONNECTOR (A), SPEAKER (WHITE) (Irch)
1770-791-21 CONNECTOR (A). SPEAKER (GRAY) (Rech)
0 1-770-792-11 CONNECTOR (8)4 SPEAKER (WHITE) (L-ch)
D 1-770-792-21 CONNECTOR (B). SPEAKER (GRAY) (R-ch)
I»504-988-11 SPEAKER (130m)
3-800-455-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, GERMAN, SPANISH,
DUTCH, ITALIAN. PORTUGUESE)
Hpmomwammamwy
G E (9 g (9 ® @ ©
@ Xs© *"£'§® 31.1:
e m %
x8. X8 x5 x2
MM
x2 x2
13cm COAXIAL 2-WAY SPEAKER
SONE
English
9550250-1D
Printed in Japan
©1995.5
Published by Home A&V Products Div.
Quality Engineering Dept
