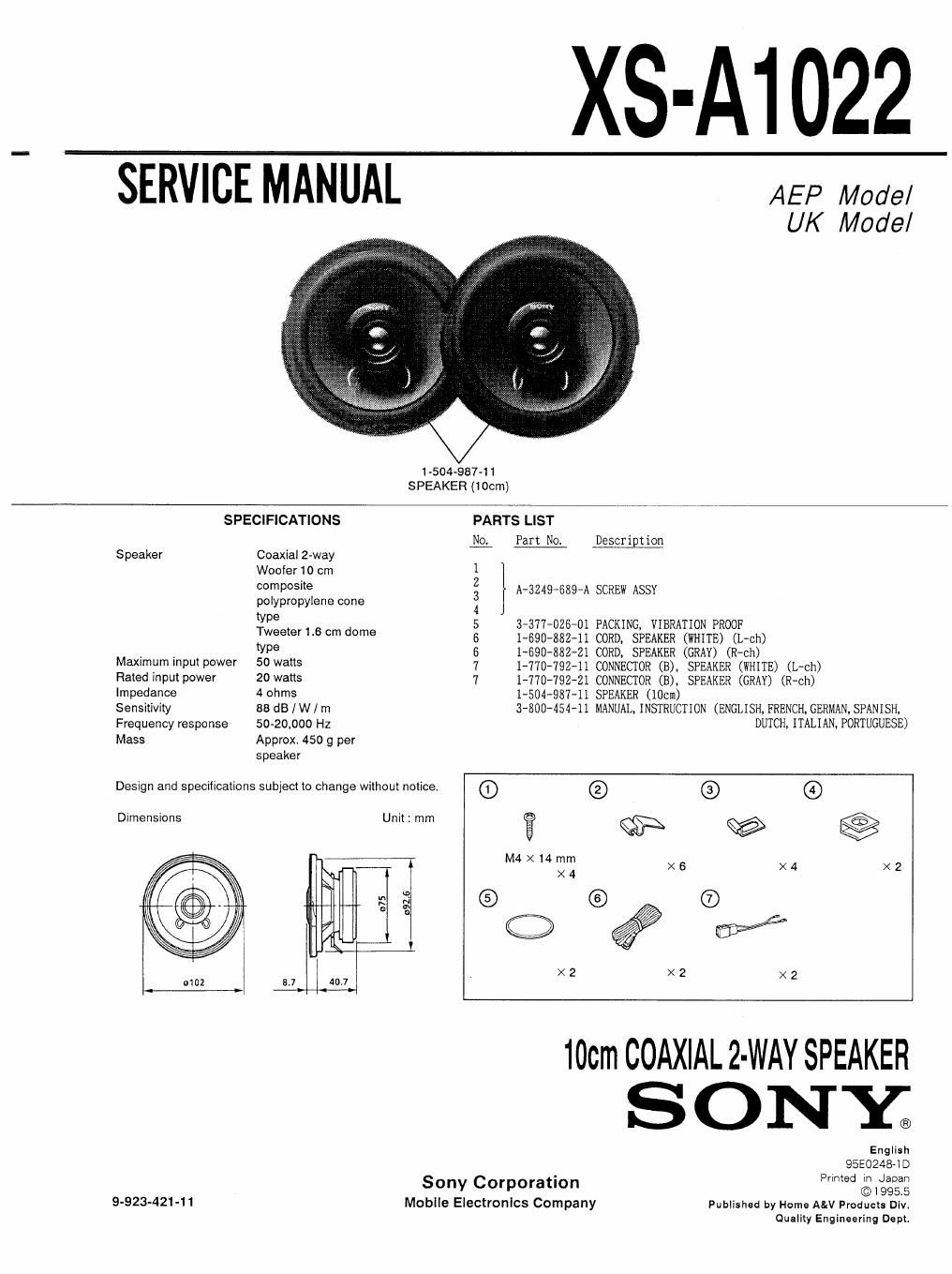

Page 1
XS-A1022
SERVICE MANUAL
AEP Model
UK Model
150495741
SPEAKER nocm)
SPECIFICATIONS
Speaker Coaxial 2-way
Woofer 10 cm
composite
polypropylene cone
W99
Tweeter 1.6 cm dome
type
Maximum input power 50 watts
Rated input power 20 walls
Impedance 4 ohms
Sensitivity 88 dB / W / m
Frequency response 50-20.000 Hz
Mass Approx. 450 g per
speaker
Design and specifications subject to change wilhoul notice,
Dimensions Unil: mm
075
992.6
Sony Corporation
Moblle Electronlcs Company
9-923-421-11
110; Part No.
PARTS LIST
Description
A-3249-689sA SCREW ASSY
3v377~026-01 PACKING, VIBRATION PROOF
1-690-882-11 CORD, SPEAKER (WHITE) (L-ch)
1-6907882-21 CORD, SPEAKER (GRAY) (R-ch)
1-770-792~Il CONNECTOR (B), SPEAKER (WHITE) (L-ch)
1-770-792-21 CONNECTOR (B), SPEAKER (GRAY) (R-ch)
1»504-987-11 SPEAKER (100m)
3-800-454-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, GERMAN, SPANISH,
DUTCH, ITALIAN, PORTUGUESE)
«I-Immmtht-I
E W @
X6 X4 X2
X2 X2 x2
10cm COAXIAL 2-WAY SPEAKER
S 0 NE)
English
QSEOZAS-ID
Printed in Japan
© 19955
Published by Home A&V Products Div,
Quality Engineering Dept.
