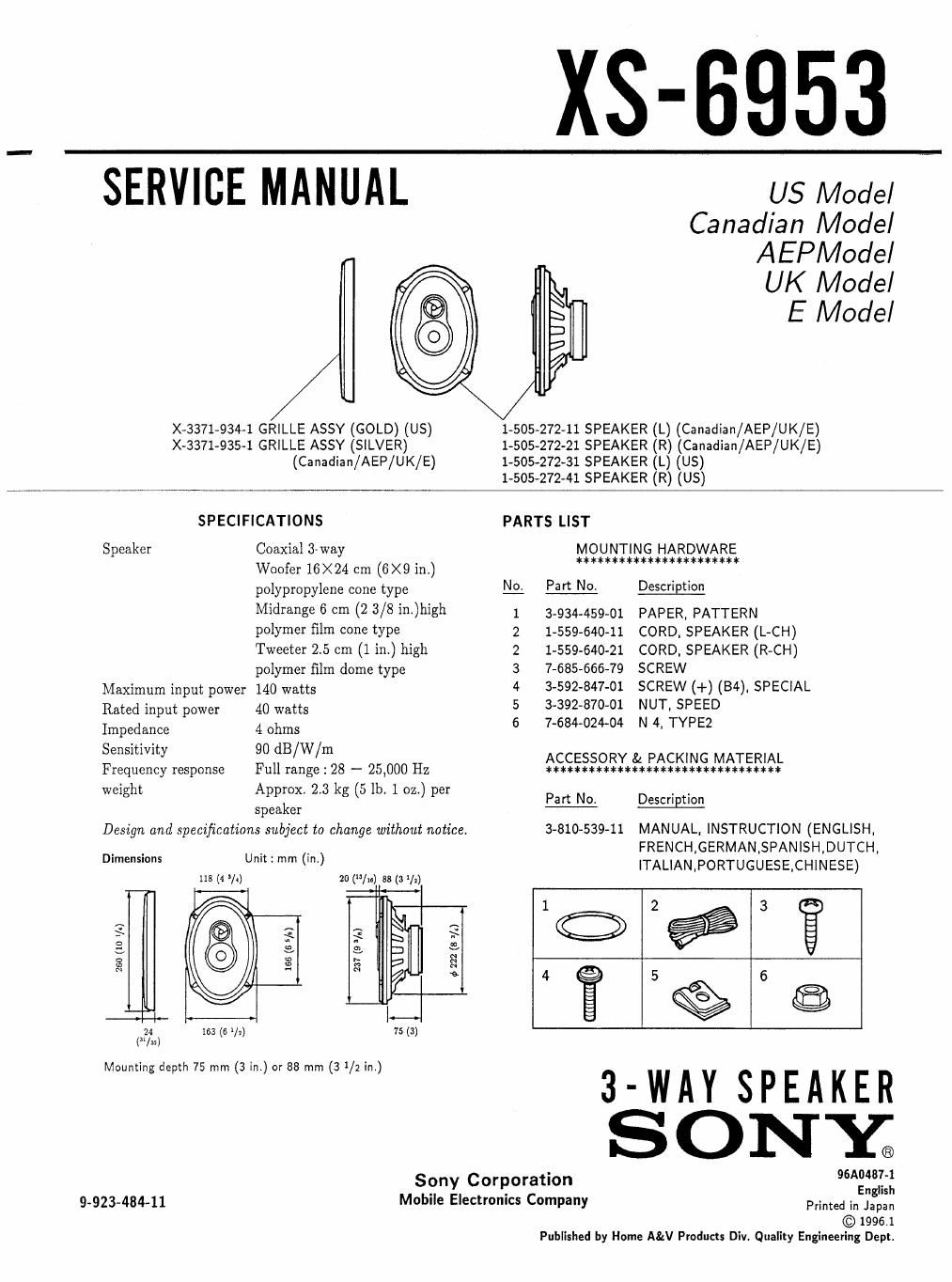

Page 1

XS-6953

SERVICE MANUAL

X-3371-934-1 GRILLE ASSY (GOLD) (US)
X-3371-935-1 GRILLE ASSY (SILVER)
(Canadian/AEP/UK/E)

US Model
Canadian Model
AEPMode/

UK Model

E Model

1505-272-11 SPEAKER (L) (Canadian/AEP/UK/E)
1-505-272-21 SPEAKER (R) (Canadian/AEP/UK/E)
1-505-272-31 SPEAKER (L) (US)
1-505-27241 SPEAKER (R) (US)

SPECIFICATIONS

Coaxial 3-way

Woofer 16x24 cm (6X9 in)
polypropylene cone type
Midrange 6 cm (2 3/8 in.)high
polymer ﬁlm cone type
Tweeter 25 cm (1 in.) high
polymer ﬁlm dome type
Maximum input power 140 watts

Speaker

Rated input power 40 watts

Impedance 4 ohms

Sensitivity 90 dB/W/m

Frequency response Full range : 28 - 25,000 Hz
weight Approx, 2.3 kg (5 ID 1 02) per

speaker

Design and speciﬁcations subject to change without notice.

Dimensions Unit: mm (in)

118 (4 V.) 20 (/n) 88 (3 V1)
3 a a 3 3
e e a: 9 E
N .4 a 7 g

, i I.-»

24 163 6' 75 3

(lazl ( l1) ( )

Mounting depth 75 mm (3 in.) or 88 mm (3 1/2 in.)

Sony Corporation
Mobile Electronics Company

9-923-484-11

PARTS LIST

2
osmawmrou p

MOUNTING HARDWARE

***********************

Description

PAPER, PATTERN
CORD, SPEAKER (L-CH)
CORD, SPEAKER (R-CH)
SCREW

SCREW (+) (B4), SPECIAL
NUT, SPEED

N 4. TYPE2

3934-459-01
1-559-640-11
1-559-640v21
7-685-666-79
3-592-847-01
3-392-870-01
7-684-024-04

ACCESSORY & PACKING MATERIAL

:0th****************************

Part No Description

3-810-539-11 MANUAL. INSTRUCTION (ENGLISH,
FRENCH.GERMAN.SPANISH,DUTCH,
ITALIAN.PORTUGUESE,CHINESE)

1©2%3

456

3-WAY SPEAKER
SONK

96AD487-l
English
