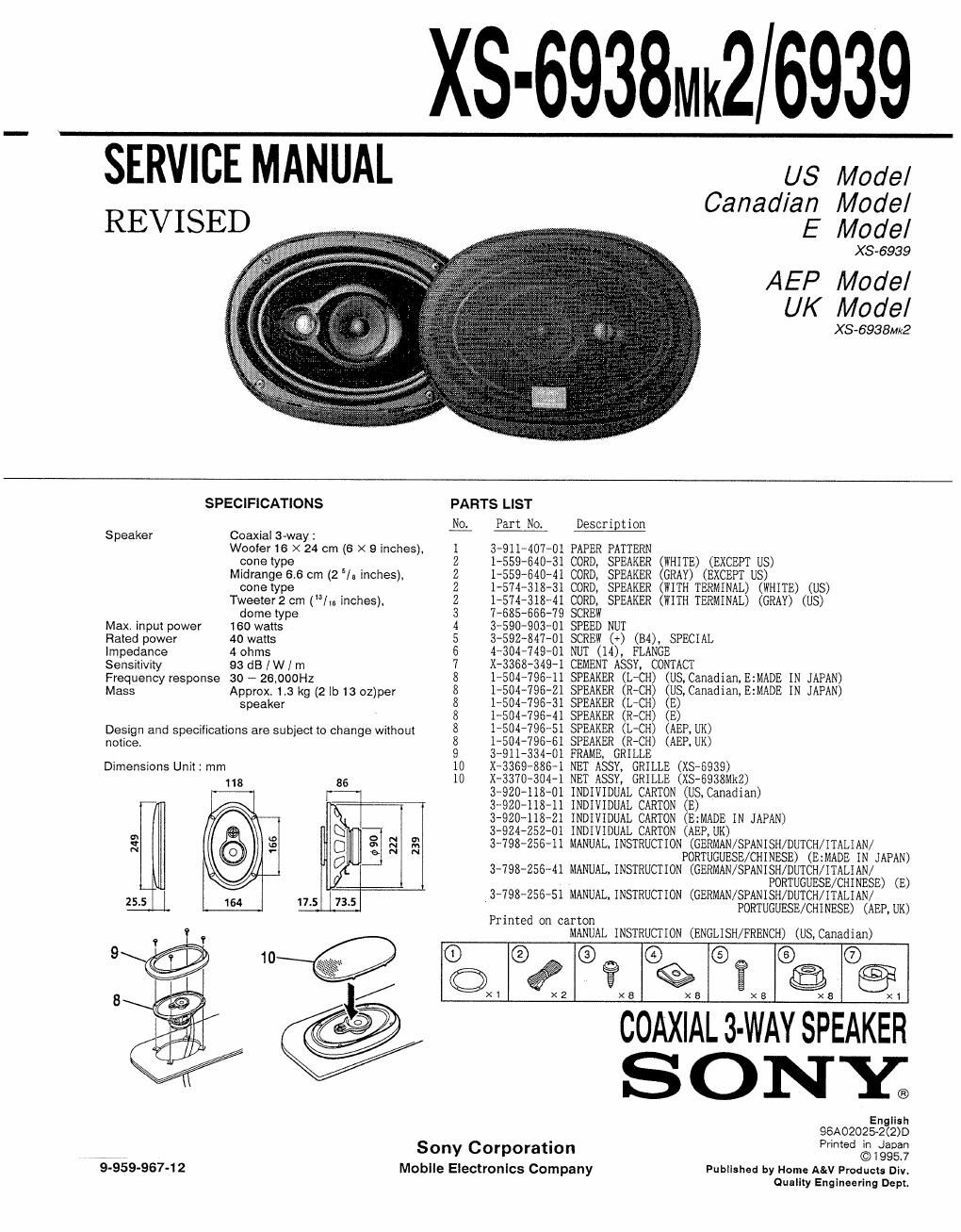

Page 1

XS-6938Mk2 6939

SERVICE MANUAL us Model

' /
REVISED 0mm}; M332

XS-6939
AEP Mode/
UK Mode/

X315938Mk2

SPECIFICATIONS PARTS LIST
& Part No. Descrigtion
Speaker Coaxial 3-way :
Woofer 16 X 24 cm (6 X 9 inches), I 3-911407'01 PAPER PATTERN
cone type 2 1-559-640-31 CORD, SPEAKER (WHITE) (EXCEPT US)
Midrange 6.6 cm (2 5/; inches). 2 1-559-640-41 CORD, SPEAKER (GRAY) (EXCEPT US)
cone type 2 1»574'318~31 CORD, SPEAKER (WITH TERMINAL) (WHITE) (US)
Tweetechm (/xs inches). 2 1-574318~"41 CORD, SPEAKER (WITH TERMINAL) (GRAY) (US)
dome type 3 7-685-666-79 SCREW
Max. input power 160 watts 4 3590-903-01 SPEED NUT
Rated power 40 watts 5 3-592-847-01 SCREW (+) (B4), SPECIAL
Impedance 4oth 6 4~304~749~01 NUT (14). FLANGE
Sensitivity 93 dB /W / m 7 X-3368-349~1 CEMENT ASSY, CONTACT
Frequency response 30 - 26,000Hz 8 1-504-796-11 SPEAKER (L-CH) (US, Canadian,E:MADE IN JAPAN)
Mass Approx, 1.3 kg (2|b13 oz)per 8 1-504-796-21 SPEAKER (R~CH) (US, Canadian,E:MADE IN JAPAN)
speaker 8 1-504-796-31 SPEAKER (L-CH) (E)
8 1-504-796-41 SPEAKER (R-CH) (E)
Design and specifications are subject to change without 3 1504495451 SPEAKER (LCH) (AEP, UK)
notice. 8 1-504-796461 SPEAKER (R-CI-I) (AERUK)
9 3-911-334-01 FRAME, GRILLE
Dimensions Unit: mm 10 X-3389-886-1 NET ASSY, GRILLE (XS5939)
113 10 X3370304-I NET ASSY, GRILLE (XS-6938Mk2)

3»920-118-01 INDIVIDUAL CARTON (US, Canadian)
3-920-118-11 INDIVIDUAL CARTON (E)
3-920-118-21 INDIVIDUAL CARTON (EzmADE IN JAPAN)
3-924-252-01 INDIVIDUAL CARTON (AEP, UK)
349845641 MANUAL. INSTRUCTION (GERMAN/SPANISH/DUTCH/ITALIAN/
PORTUGUESE/CHINESE) (EzMADE IN JAPAN)
3-798-256-41 MANUAL, INSTRUCTION (GERMAN/SPANISH/DUTCH/ITALIAN/
PORTUGUESE/CHINESE) (E)
3-798-256-51 MANUAL, INSTRUCTION (GERMAN/SPANISH/DUTCH/ITALIAN/
PORTUGUESE/CHINESE) (AEP,UK)
Printed on carton

MANUAL INSTRUCTION (ENGLISH/FRENCH) (US, Canadian)
(D (9 @ ® @ (D
Q

©$§ .@

x 1 x 2 x a x 8 x 8 x 8 x I
COAXIAL 3-WAY SPEAKER
English
95AOZO?52(2)D
7," Sony Corporation PM 5133?;
9-959-967-12 Mobile Electronlcs Company Pub|lshed by Home A&V Products Div.

Quality Engineering Dept.
