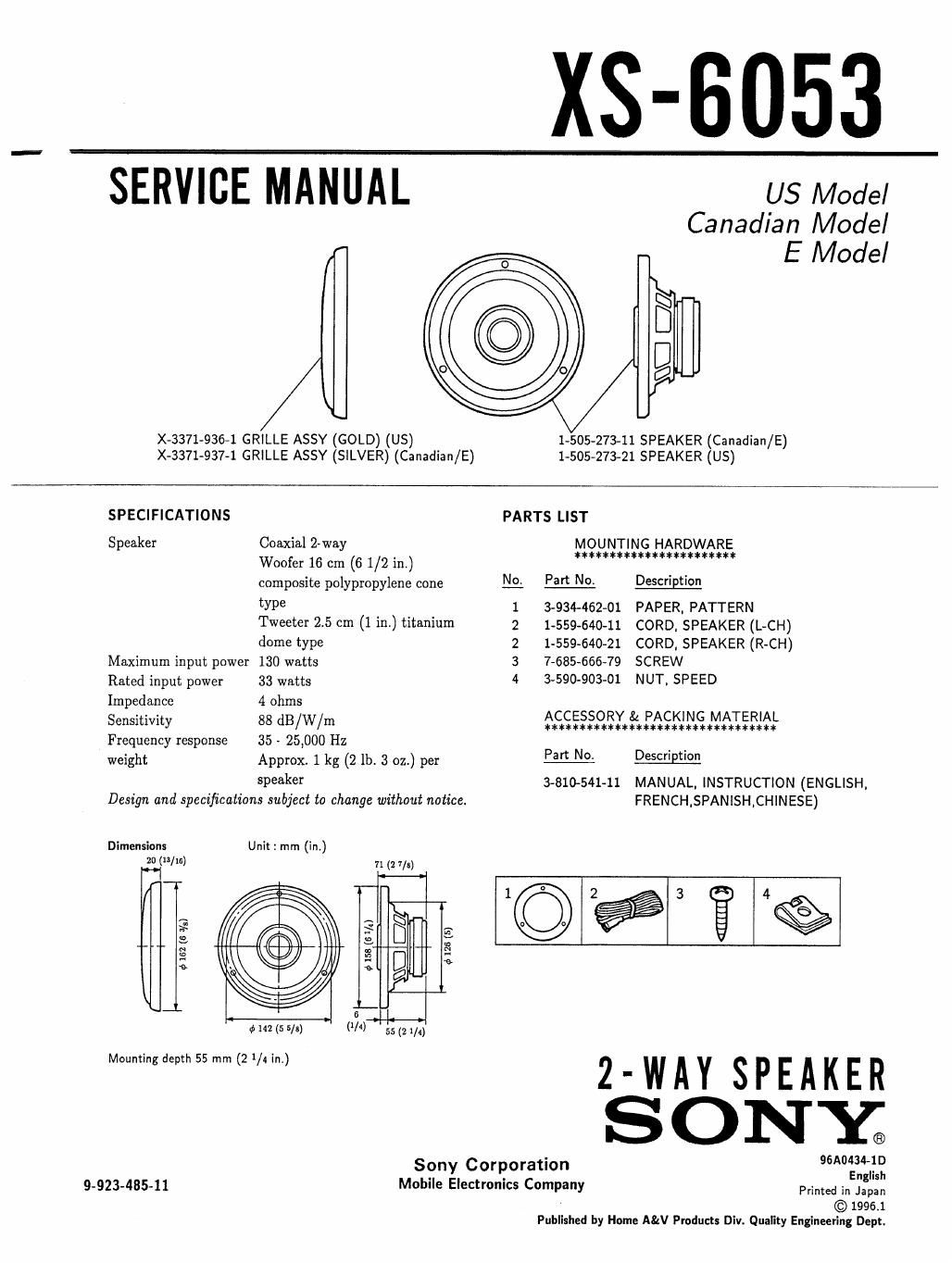

Page 1
XS-6053
SERVICE MANUAL
ll
X-3371-936-l GRILLE ASSY (GOLD) (US)
man-937.1 GRILLE ASSY (SILVER) (Canadian/E)
US Model
Canadian Model
E Model
1-505-273-11 SPEAKER (Canadian/E)
1-505-273-21 SPEAKER (US)
SPECIFICATIONS
Speaker Coaxial 2-way
Woofer 16 cm (6 1/2 in.)
composite polypropylene cone
type
Tweeter 2.5 cm (1 in.) titanium
dome type
Maximum input power 130 watts
Rated input power 33 watts
Impedance 4 ohms
Sensitivity 88 dB /W/m
Frequency response 35 ~ 25,000 Hz
weight Approx. 1 kg (2 1b 3 oz.) per
speaker
Design and specifications subject to change without notice.
Unit: mm (in.)
Dimensions
20 (Ia/u) 71 (2 7/3)
PARTS LIST
2
Auroral-a p
MOUNTING HARDWARE
**$*¥******************
Description
PAPER. PATTERN
CORD, SPEAKER (L-CH)
CORD, SPEAKER (R-CH)
SCREW
NUT. SPEED
Part No.
3-934-462-01
1-559-640-11
1~559~640-21
7-685~666-79
3-590-903-01
ACCESSORY & PACKING MATERIAL
*********************************
Part No. Description
3-810-541-11 MANUAL, INSTRUCTION (ENGLISH,
FRENCH,SPANISH.CH|NESE)
¢ l6? (5 /a)
<5 158 (5 V4)
QCI I35
«I 126(5)
6
wnwsn) ' (1) 55mm
Mounting depth 55 mm (2 1/; in)
Sony Corporation
Mobile Electronics Company
9-923-48541
%
M
.5
96A0434-ID
English
Printed in Japan
© 19961
Published by Home ASLV Products Div. Quality Engineering Dept.
