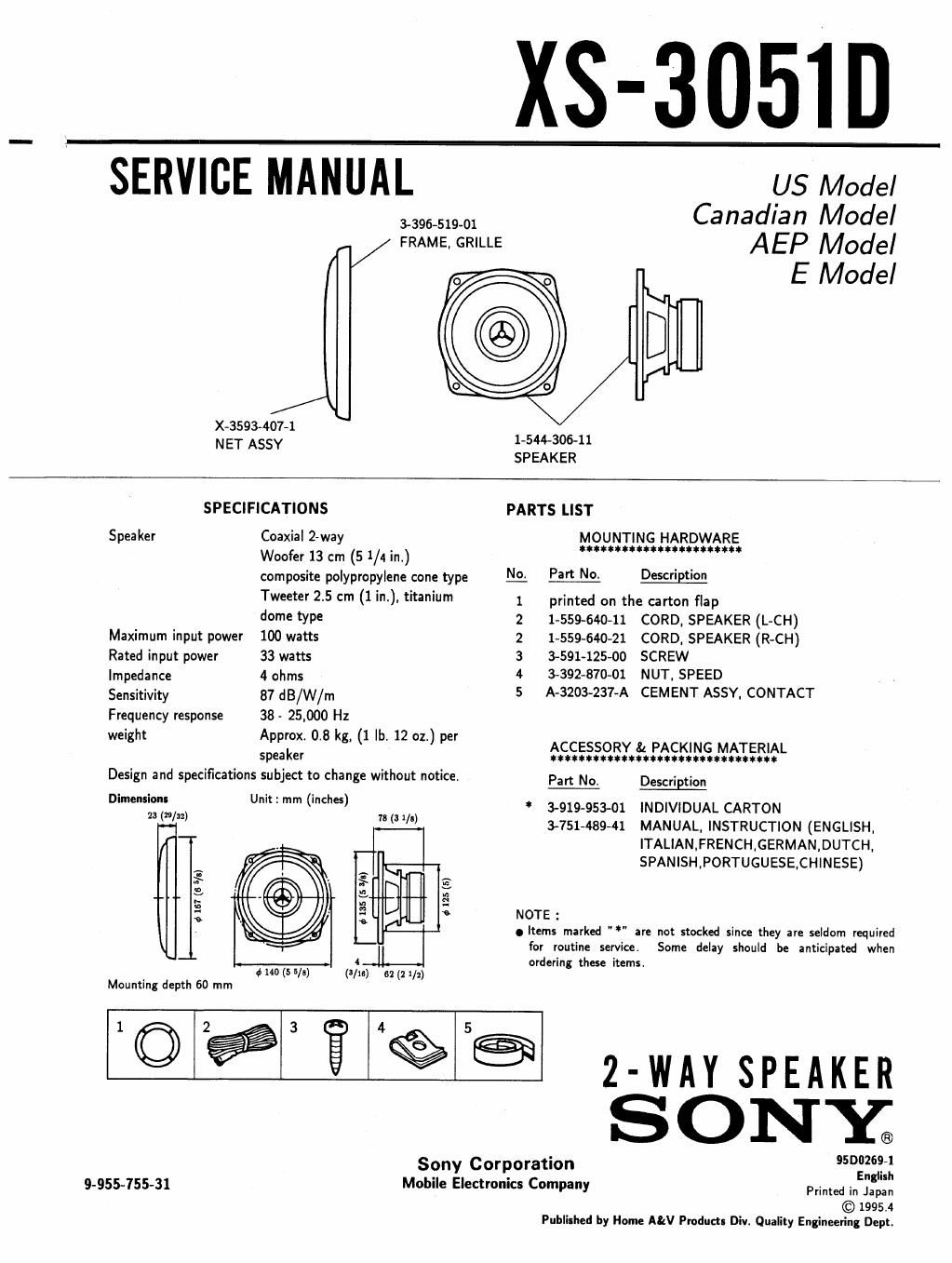

XS-3051D

SERVICE MANUAL

3-396-5 19-01

j/ FRAME, GRILLE

US Model
Canadian Model
AEP Model

E Model

X-3593»407-1
NET ASSY 1544-30641
SPEAKER
SPECIFICATIONS PARTS LIST
Speaker Coaxial 2-way MOUNTING HARDWARE

Maximum input power
Rated input power
Impedance

Sensitivity

Frequency response
weight

Woofer 13 cm (5 1/4 in.)
composite polypropylene cone type
Tweeter 2.5 cm (1 in), titanium
dome type

100 watts

33 watts

4 ohms

87 dB/W/m

38 - 25,000 Hz

Approx. 08 kg, (1 lb. 12 oz.) per
speaker

Design and specifications subject to change without notice

Dimensions
23 (19/52)

l

.9 151 (a 5/5)

Unit: mm (inches)
vs (a 1/.)

a 135 '(5 am
I
(a 125 (5)

4

Mounting depth 60 mm

moon/a) ' (a/n) 62(21/2)

M

(H b 9 h) FJ H

1*ttt**i**#*l*##t$*t

Part No. Description

printed on the carton flap

1-559-640-11 CORD, SPEAKER (L-CH)
l-559~640-21 CORD, SPEAKER (R»CH)
3-591-125-00 SCREW

3-392-870-01 NUT, SPEED

A-3203-237-A CEMENT ASSY, CONTACT

ACCESSORY & PACKING MATERIAL

ttt$**t**#¥titt##t¥****tttt¢

Part No. Description

3-919-953»01 INDIVIDUAL CARTON

3-751-48941 MANUAL, INSTRUCTION (ENGLISH,
ITALIAN,FRENCH,GERMAN,DUTCH,
SPANISH,PORTUGUESE,CHINESE)

NOTE :

0 Items marked "m are not stocked since they are seldom required
for routine service Some delay should be anticipated when
ordering these items.

1©2%3 E 5

@

9-955-755-31

Sony Corporation 950232;:
Mobile Electronics Company Printed in Japan
© 19954

Published by Home AhV Product: Div. Quality Engineering Dept.
