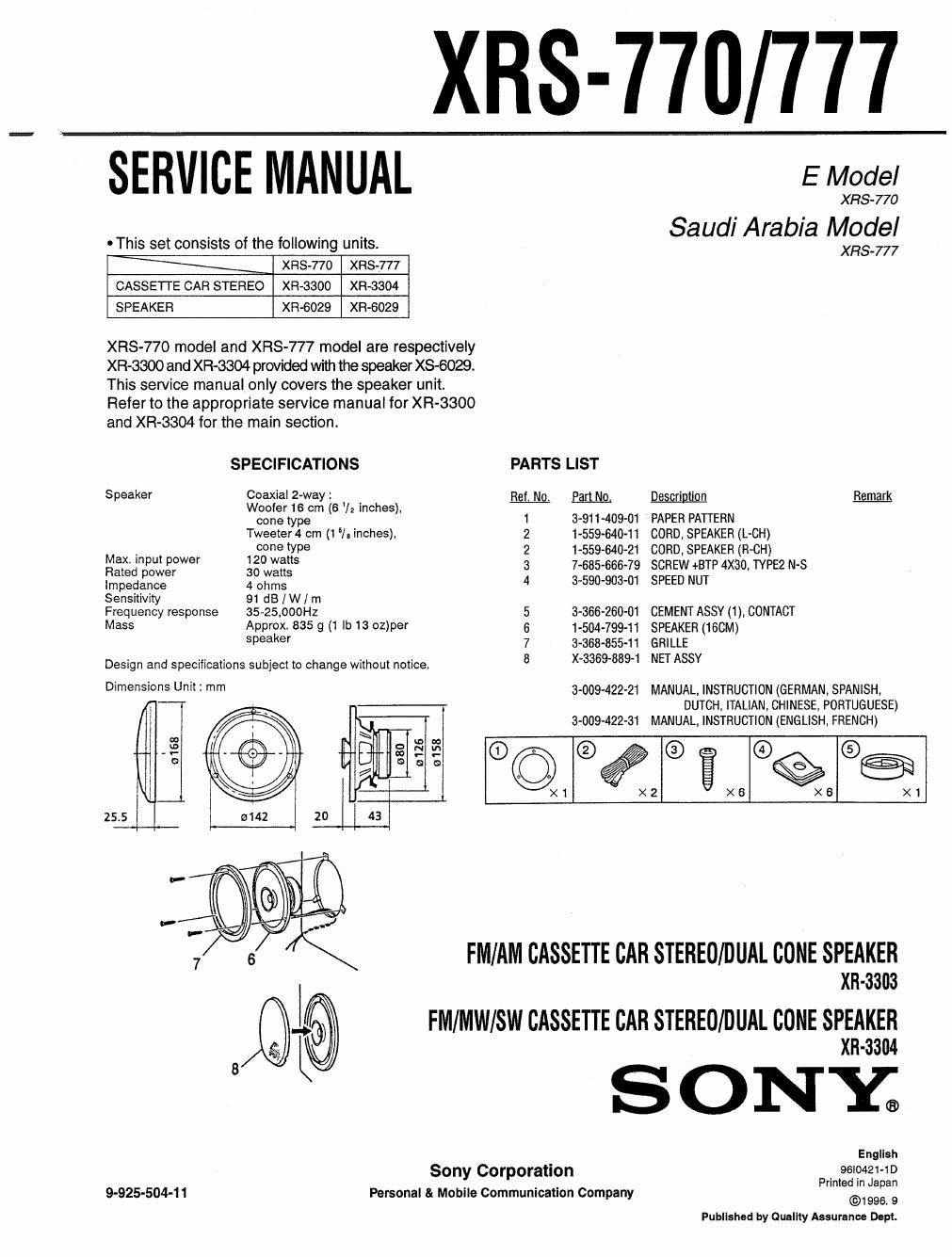

Page 1

XRS-770/7 77

SERVICE MANUAL

-This set consists of the following units.

XRS-770 XRS-777
CASSETTE CAR STEREO XR-3300 XR-3304
SPEAKER XR6029 XR-6029

XFtS-770 model and XRS-777 model are respectively
XR-3300 and XR-3304 provided with the speaker X86029.
This service manual only covers the speaker unit.
Refer to the appropriate service manual for XFt-3300
and XR-3304 for the main section.

Speaker

Max. input power
Rated power
Impedance
Sensitivity
Frequency response
Mass

SPECIFICATIONS

Coaxial 2vway :

Woofer 16 cm (6 l: inches)v
cone type

TweeteM cm (1 5/. inches),
cone type

120 watts

30 watts

4 ohms

91 dB / W I m

35~25,000HZ

Approx. 835 g (1 lb 13 oz)per

speaker

Design and specifications subject to change without notice.

Dimensions Unit: mm

I

25.5 I

080
6126
0158

9-925-504-1 1

E Model
XRS-770
Sa ud/ Arab/a Model
XRS-777
PARTS LIST
Ref. N9. PJILNLL Winn Remark
1 3-911-409~01 PAPER PATTERN
2 1-559-640-11 CORD, SPEAKER (L-CH)
2 1-559-640-21 CORD, SPEAKER (R-CH)
3 7-685-666-79 SCREW +BTP 4X30, TYPE2 NS
4 3-590-903-01 SPEED NUT
5 3-366-26001 CEMENT ASSY (1 ), CONTACT
6 1-504-799-11 SPEAKER (160M)
7 3-368-855-11 GRILLE
8 X-3369-889-1 NET ASSY
3-009422-21 MANUAL, INSTRUCTION (GERMAN, SPANISH,
DUTCH, ITALIAN, CHINESE, PORTUGUESE)
3-009-422-31 MANUAL, INSTRUCTION (ENGLISH, FRENCH)

@%©§ @e@

X6 X6

X1

SONY.

Sony Corporation
Personal & Mobile Communication Company

FM/AM CASSETTE CAR STEREO/DUAL CONE SPEAKER

XR-33II3

FM/MW/SW CASSETTE CAR STEREO/DUAL CONE SPEAKER

XR-3304

E ngllsh

96l0421-1D

Printed in Japan

@1996. 9

Published by Quality Assurance Dept.
