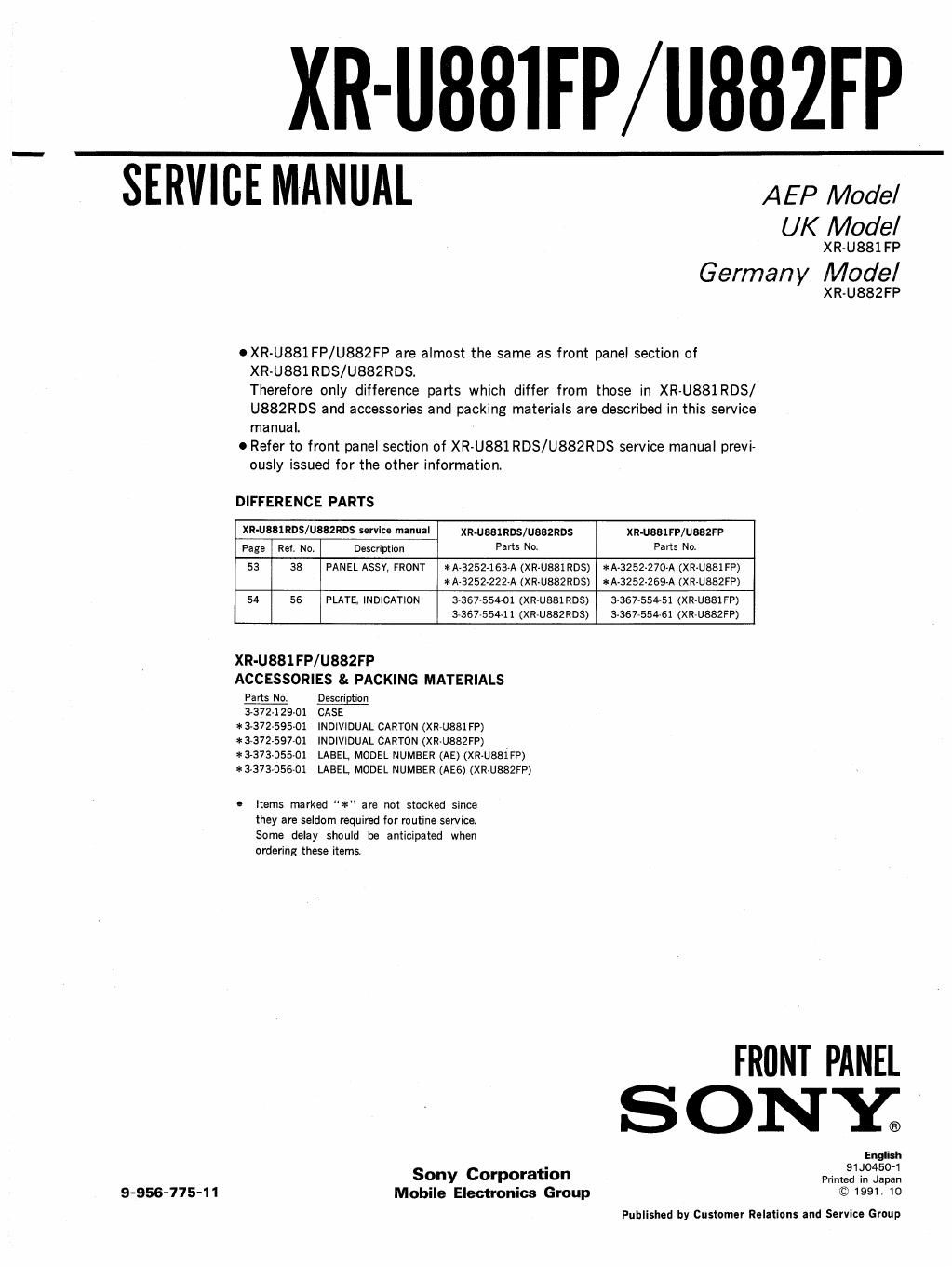

_ XR-U881FP/U882FP

SERVICE MANUAL AEP Model

UK Model

XR-U881FP

Germany Model

XR-U882FP

OXR-U881FP/U882FP are almost the same as front panel section of
XR-U881RDS/U882RDS,
Therefore only difference parts which differ from those in XR-U881RDS/
U882RDS and accessories and packing materials are described in this service
manual.

0 Refer to front panel section of XR-U881RDS/U882RDS service manual previ-
ously issued for the other information.

DIFFERENCE PARTS

XR-U831RDS/U832RDS service manual XR-U881RDS/U882RDS xn-usser/ueezre
Page Ref. Nov Description Parts NO- P335 N0-
53 as PANEL ASSY. FRONT a: Ae3252~163eA (xeusm RDS) ri A~3252»27o-A (XR-UBB! FP)
3252.22 (XR-USSZRDS) *A-3252»269-A (XR-USBZFP)
54 56 PLATE INDICATION 336755401 (xeeuasmos) 3357-55451 (XR-UBBI FF)
3-357554-11 (XR-UBSZRDS) 3367-55461 (XR~U882FP)

XR-U881FP/U882FP
ACCESSORIES & PACKING MATERIALS
Parts No. Descrigtion
3372-125-01 CASE
* 3-372595-01 INDIVIDUAL CARTON (XR-USE] FP)
*3372-597-01 INDIVIDUAL CARTON (XR-U882FP) _
*3373-05501 LABEL, MODEL NUMBER (AE) (XR~U881FP)
*3-373-056-01 LABEL MODEL NUMBER (AE5) (XR~U882FP)

0 Items marked * are not stocked since
they are seldom required for routine service
Some delay should be anticipated when
ordering these items.

FRONT PANEL
SONg

. 91J0450-1
Sony Corporatlon Printed in Japan
9-955-775-11 Mobile Electronics Group © 1991 10

Pubilshad by Customer Relations and Service Group
