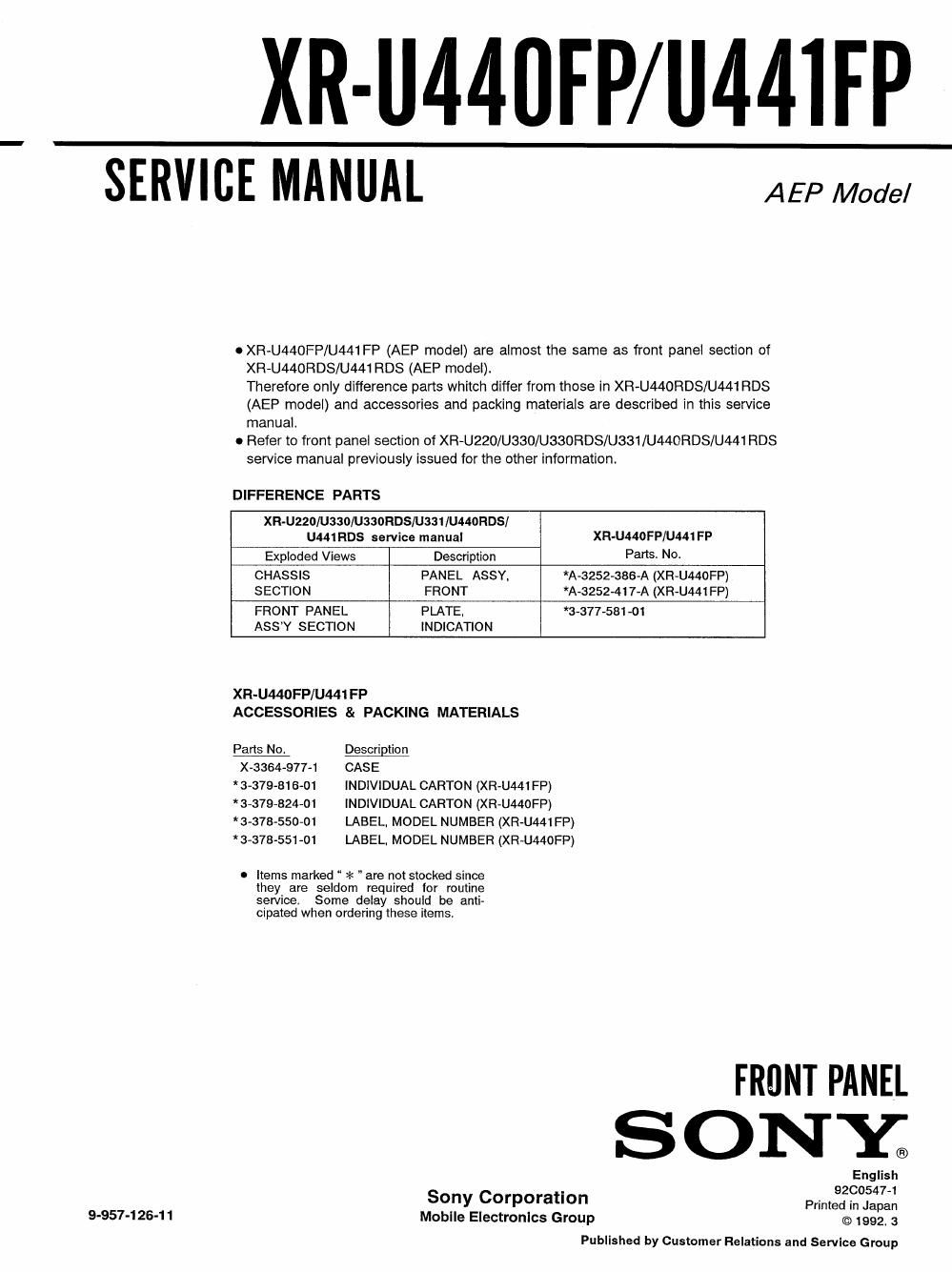

XR-U44UFP/U44IFP

SERVICE MANUAL AEP Model

OXR-U440FP/U441FP (AEP model) are almost the same as front panel section of
XR-U440RDS/U441RDS (AEP model).
Therefore only difference parts whitch differ from those in XR-U440RDS/U441RDS
(AEP model) and accessories and packing materials are described in this service
manual.

0 Refer to front panel section ofXR-U220/U330/U330RDS/U331/U44GRDS/U441RDS
service manual previously issued for the other information.

DIFFERENCE PARTS

XR-U220/U330/U330RDS/U331IU44ORD5/
U441RDS service manual XRUMOFP/U441FP
Exploded Views Description Parts. N04
CHASSIS PANEL ASSY. *A-3252-386-A (XR-U440FP)
SECTION FRONT *A-3252-4 7-A (XR-U441FP)
FRONT PANEL PLATE. *3-377-581-01
ASS'Y SECTION INDICATION

XR-U440FP/U441FP
ACCESSORIES & PACKING MATERIALS

Pans No. Description
X-3364-977-1 CASE

*3-379»B16-01 INDIVIDUAL CARTON (XR-U441FP)
* 3-379-824~01 INDIVIDUAL CARTON (XR-U44OFP)
3-378650-01 LABEL. MODEL NUMBER (XR-U441FP)
*3-378-551-01 LABEL. MODEL NUMBER (XR~U440FP)

0 Items marked >l< " are not stocked since
they are seldom required for routine
service. Some delay should be anti-
cipated when ordering these items.

FRilNT PANEL
SONY.

English

_ 92cos47-i

Sony Corporation Printed in Japan

9-957-126-11 Mobile Electronics Group © 1992. 3
