Page 1

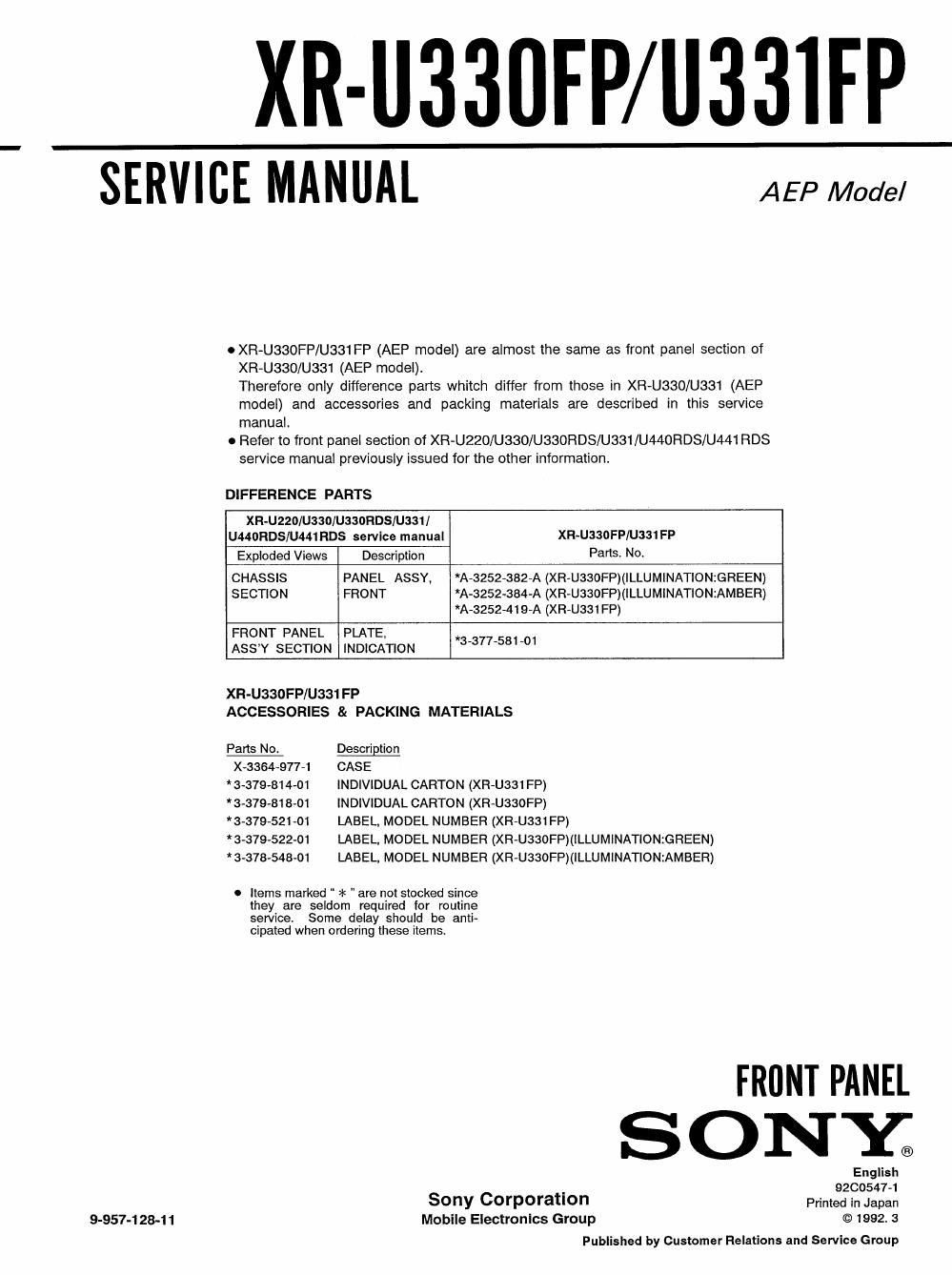

XR-U33IIFP/U33IFP ,

SERVICE MANUAL AEP Model

~XFl-U33OFP/U331FP (AEP model) are almost the same as front panel section of
XR-U330/U331 (AEP model).
Therefore only difference parts whitch differ from those in XR~U330/U331 (AEP
model) and accessories and packing materials are described in this service
manual.

0 Refer to front panel section of XR-U220/U330/U330RDS/U331/U440RDS/U441 RDS
service manual previously issued for the other information.

DIFFERENCE PARTS
XR-UZ20/U330lU330RDS/U331l

U440RDS/U441RDS service manual Xn-UaaoFP/u331FP

Exploded Views Description Parts, N0.
CHASSIS PANEL AssY. *A~3252~382-A (XR»U330FP)(ILLUMINATION:GREEN)
SECTION FRONT "A-3252-384-A (XFI-U330FP)(ILLUMINATIONZAMBEFI)

*A-3252-419-A (XR~U331FP)

FRONT PANEL PLATE,

* - . _
ASS'Y SECTION INDICATION 3 377 58 0

XR-U330FP/ U331 FP
ACCESSORIES & PACKING MATERIALS

Paris No. Desoriglion
X-3364-977v1 CASE
* 3~379-814-01 INDIVIDUAL CARTON (XR-U331FP)
* 3-379-818-01 INDIVIDUAL CARTON (XR-U330FP)
*3-379-521-01 LABEL. MODEL NUMBER (XR-U331FP)
*3v379-522-01 LABEL, MODEL NUMBER (XR-U330FP)(ILLUMlNATlON:GFlEEN)
*3-378548-01 LABEL, MODEL NUMBER (XRAUSSOFPHILLUMINATIONzAMBER)

0 Items marked >l< are not stocked since
they are seldom required for routine
service. Some delay should be anti-
cipated when ordering these items.

FRIINT PANEL

SONY®

English
_ 92C0547-1
SONY Corporation Printed in Japan

9-957-128-11 Moblle Electronlcs Group © 1992. 3

Published by Customer Relations and Servlce Group
