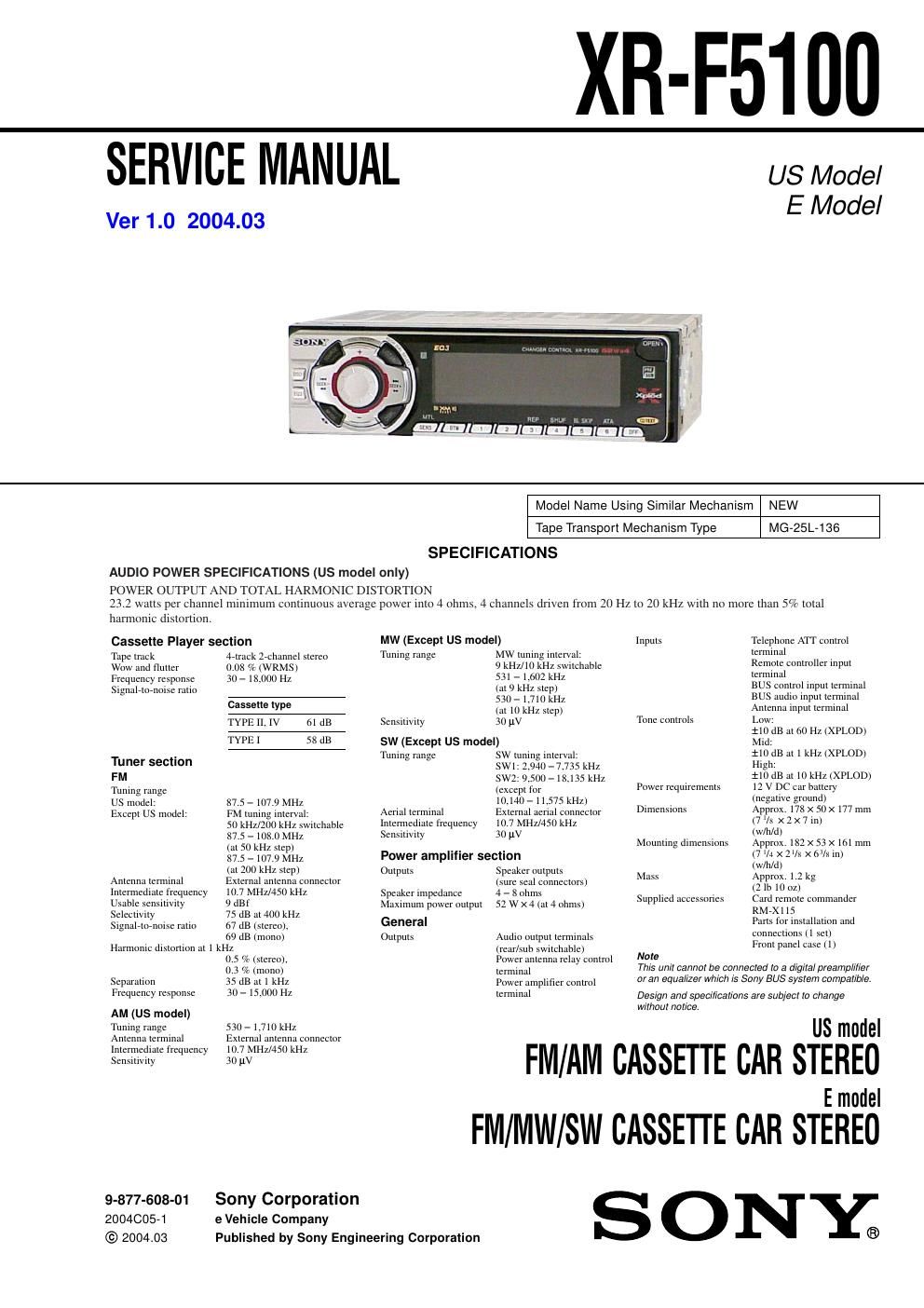

sony xr f 5100 service manual

Extracted text from sony xr f 5100 service manual (Ocr-read)


Page 2

3 XR-F5100 SECTION 1 GENERAL This section is extracted from instruction manual. Location of controls aDSO button bSOURCE (Power on/Radio/Tape/CD* 1/ MD* 1) button To s e l e c t the source. cLIST button dReceptor for the card remote commander eDisplay window fZ (eject) button (located on the front side of the unit, behind the front panel) gOPEN button hEQ3 button iMODE (o) button To c hange operation. jVolume control dial/Select button Rotate to: − Adjust the volume. − Adjust settings. Press to: − Select items. kDSPL (display mode change) button lSENS/MTL button mBTM button nRESET button (located on the front side of the unit, behind the front panel) oNumber buttons Ta p e : (3): REP (5): BL SKIP (6): ATA Radio: To s t o r e s tations/receive stored stations. CD/MD: (3): REP (4): SHUF pFrequency select switch (located on the bottom of the unit) (Except US) See Frequency select switch in the Installation/Connections manual. qOFF (Stop/Power off) button* 2 *2Warning when installing in a car without an ACC (accessory) position on the ignition switch After turning off the ignition, be sure to press and hold (OFF) on the unit until the display disappears. Otherwise, the display does not turn off and this causes battery drain. PUSHDIALSELECT SOURCEDISC/PRESET OPEN 6 5 4 3 BBE SHUF ATABL SKIP REP MTL 2 1 BTM SENS EQ3 DSPL MODE DSO SEEK SEEK LIST OFF rDISC (ALBUM)/PRESET buttons (+/ ) To r e c e ive preset stations/change the disc*1, skip albums* 2. *1When an optional CD/MD unit is connected. *2Available only when an optional CD unit with the MP3 file control function is connected, and MP3 file is played. sSEEK buttons ( /+) To s k i p tracks/fast-forward, reverse a track/ tune in stations automatically, find a station manually/select a setting.The corresponding buttons of the card remote commander control the same functions as those on this unit. aDSPL button bSOURCE button cSEEK ( /+) buttons dOFF button eVOL (+ ) buttons fMODE button gPRESET (DISC/ALBUM) (+ ) buttons hAT T b u t t o n Note If the display disappears by pressing (OFF), it cannot be operated with the card remote commander unless (SOURCE) on the unit is pressed, or a cassette tape is inserted to activate the unit first. SEEK SEEK PUSHDIALSELECT SOURCEDISC/PRESET SENS EQ3 DSPL MODE DSO SEEK SEEK LISTCAT (SEEK) (−): to select leftwards/ .(SEEK) (+): to select rightwards/ > (DISC/PRESET) (+): to select upwards (DISC/PRESET) (−): to select downwards Card remote commander RM-X115 AT T OFF DSPL MODE SOURCE VO L + PRESET+ PRESET SEEK SEEK+ Setting the clock The clock uses a 12-hour digital indication. Example: To set the clock to 10:08 1Press (DSPL) for 2 seconds. The hour indication flashes. 1Rotate the volume control dial to set the hour. 2Press the select button. The minute indication flashes. 3Rotate the volume control dial to set the minute. 2Press (DSPL). The clock starts. After the clock setting is complete, the display returns to normal play mode.
