Sony xr c 9100 service manual

This is the 64 pages manual for sony xr c 9100 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 64
sony xr c 9100 service manual

Extracted text from sony xr c 9100 service manual (Ocr-read)

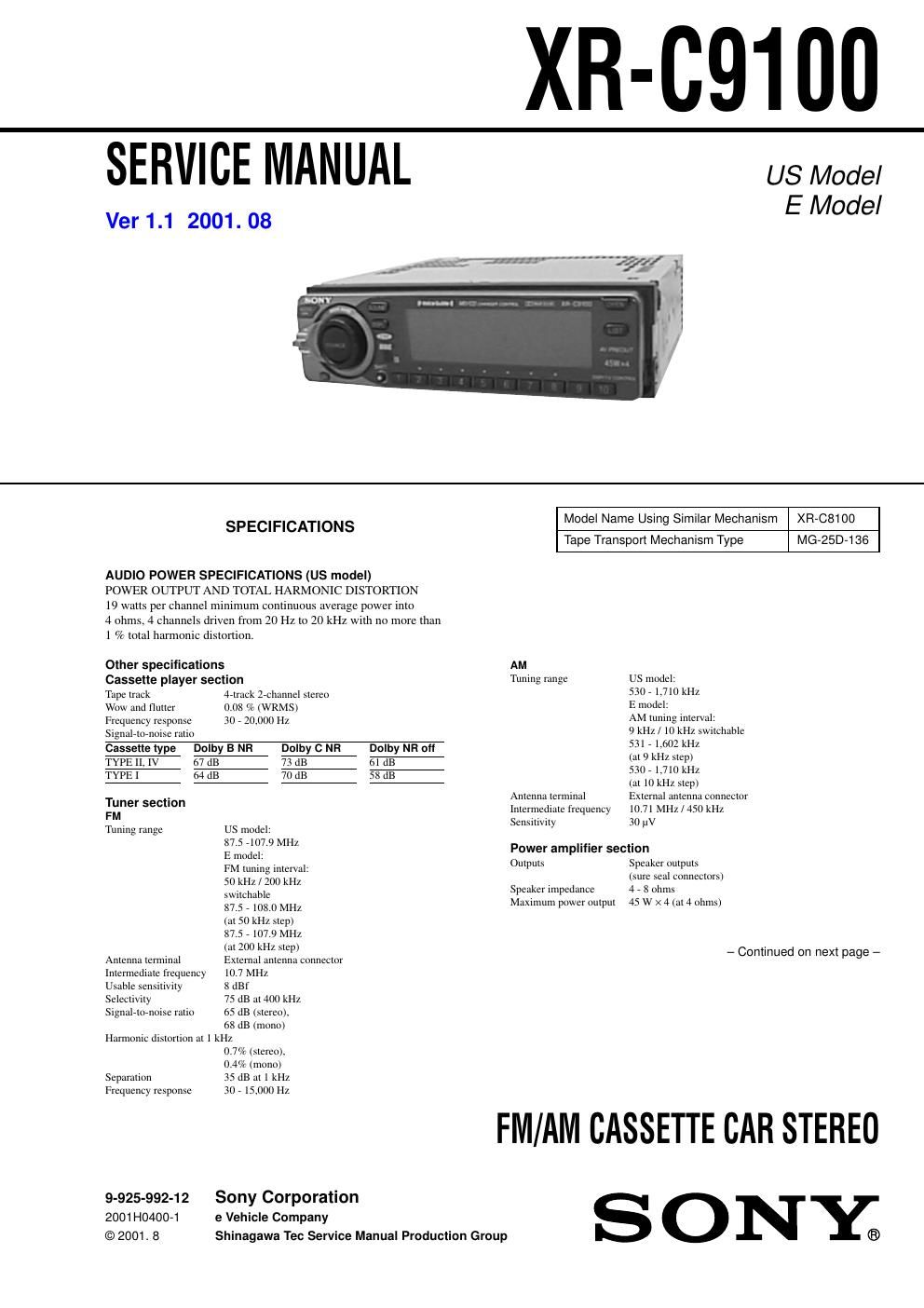

Page 1

Ð 2 Ð TABLE OF CONTENTS 1. GENERAL Location of Controls ............................................................... 3 Getting Started ........................................................................ 4 Setting the Clock .................................................................... 4 Cassette Player ....................................................................... 5 Radio ...................................................................................... 6 Other Functions ...................................................................... 7 CD/MD Unit ........................................................................... 9 DSP ....................................................................................... 13 TV/Video .............................................................................. 15 Connections .......................................................................... 17 2. DISASSEMBLY 2-1. Cover ................................................................................ 19 2-2. Front Panel Assy .............................................................. 19 2-3. Sub Panel Assy ................................................................. 20 2-4. Mechanism Deck .............................................................. 20 2-5. Main Board ...................................................................... 21 2-6. Heat Sink .......................................................................... 21 3. ASSEMBLY OF MECHANISM DECK Housing ................................................................................ 22 Arm (Suction) ....................................................................... 22 Lever (LDG-A) / (LDG-B) ................................................... 23 Gear (Loading FT) ................................................................ 23 Guide (C) .............................................................................. 24 Mounting Position of Capstan/Reel Motor (M901) ............. 24 4. MECHANICAL ADJUSTMENTS........................... 25 5. ELECTRICAL ADJUSTMENTS Tape Section ......................................................................... 25 Tuner Section ........................................................................ 26 6. DIAGRAMS 6-1. IC Pin Description ............................................................ 30 6-2. Block Diagram ÐTape SectionÐ ....................................... 33 6-3. Block Diagram ÐMain SectionÐ ....................................... 35 6-4. Printed Wiring Boards ÐMain SectionÐ ........................... 38 6-5. Schematic Diagram ÐMain SectionÐ ................................ 43 6-6. Printed Wiring Board ÐDisplay SectionÐ ......................... 48 6-7. Schematic Diagram ÐDisplay SectionÐ ............................ 50 7. EXPLODED VIEWS 7-1. Chassis Section ................................................................ 56 7-2. Front Panel Section .......................................................... 57 7-3. Mechanism Deck Section ................................................. 58 8. ELECTRICAL PARTS LIST................................... 59 GeneralOutputs Line outputs (2) Subwoofer output (1) Power antenna relay control lead Power amplifier control lead Telephone ATT control lead Illumination control lead Tone controls Bass ±8 dB at 100 Hz Treble ±8 dB at 10 kHz Power requirements 12 V DC car battery (negative ground) Dimensions Approx. 178 ´ 50 ´ 180 mm (7 1 / 8 ´ 2 ´ 7 1 / 8 in.) (w/h/d) Mounting dimensions Approx. 182 ´ 53 ´ 160 mm (7 1 / 4 ´ 2 1 / 8 ´ 6 3 / 8 in.) (w/h/d) Mass Approx. 1.5 kg (3 lb. 5 oz.) Supplied accessories Rotary commander RM-X4S (1) Wireless remote RM-X47 (1) (E model) Parts for installation and connections (1 set) Front panel case (1) Design and specifications are subject to change without notice. Notes on Chip Component Replacement ·Never reuse a disconnected chip component. ·Notice that the minus side of a tantalum capacitor may be damaged by heat. Dolby noise reduction manufactured under license from Dolby Labo- ratories Licensing Corporation. ÒDOLBYÓ and the double-D symbol a are trademarks of Dolby Laboratories Licensing Corporation.

Page 2

Ð 3 Ð SECTION 1 GENERAL This section is extracted from instruction manual.
