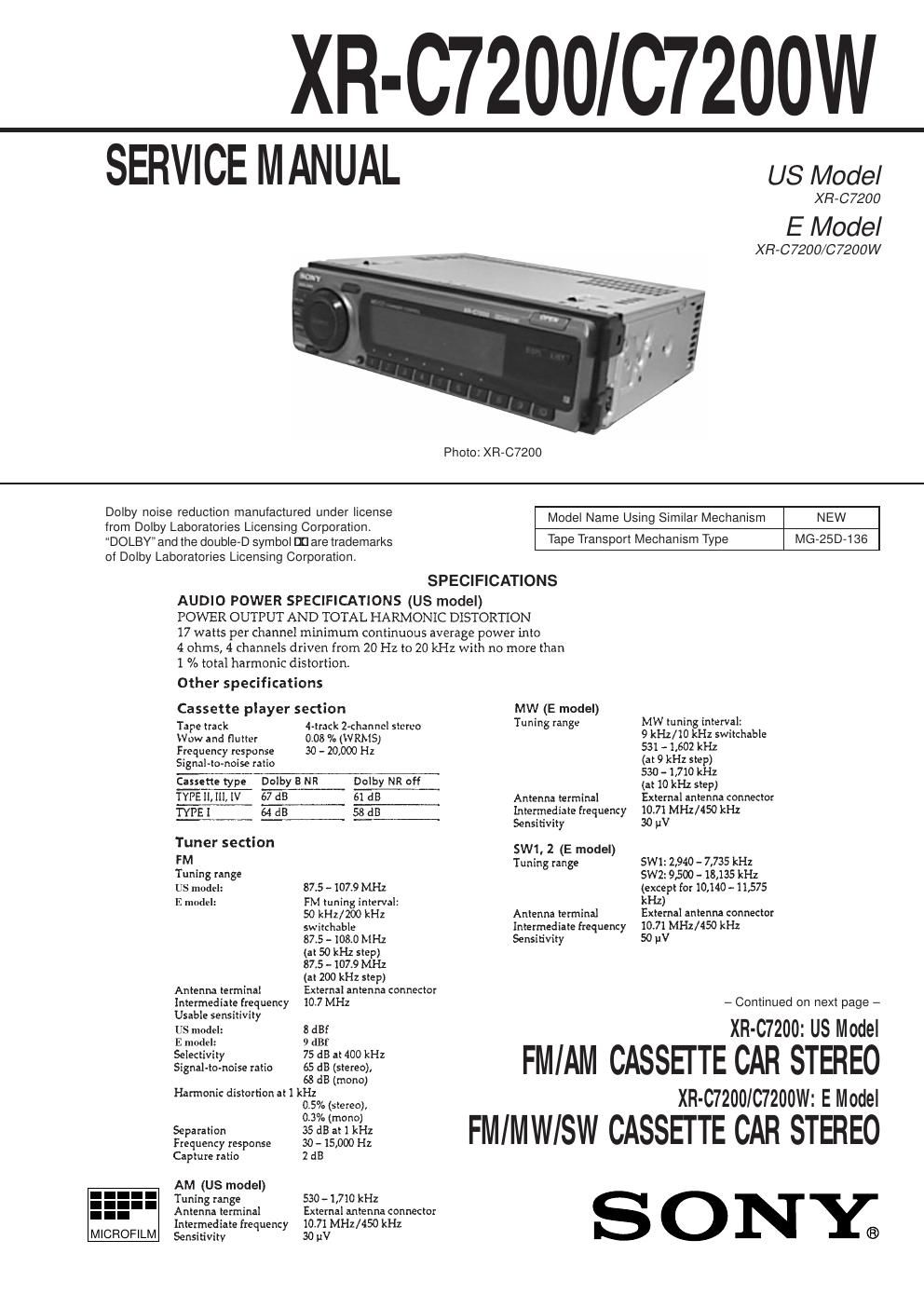

Sony xr c 7200 service manual
This is the 37 pages manual for sony xr c 7200 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony xr c 7200 service manual (Ocr-read)
Page 1
Ð 2 Ð TABLE OF CONTENTS 1. GENERAL Location of Controls ....................................................... 3 Resetting the Unit ........................................................... 4 Detaching the Front Panel ............................................... 4 Setting the Clock ............................................................. 4 Installation ....................................................................... 5 Connections ..................................................................... 7 2. DISASSEMBLY ......................................................... 9 3. ASSEMBLY OF MECHANISM DECK ........... 12 4. MECHANICAL ADJUSTMENTS ....................... 15 5. ELECTRICAL ADJUSTMENTS Test Mode ........................................................................ 15 Tape Deck Section .......................................................... 15 Tuner Section .................................................................. 16 6. DIAGRAMS 6-1. Printed Wiring Board Ð MAIN Section Ð ....................... 19 6-2. Schematic Diagram Ð MAIN Section Ð .......................... 23 6-3. Printed Wiring Boards Ð PANEL Section Ð ................... 28 6-4. Schematic Diagram Ð PANEL Section Ð ........................ 30 6-5. IC Pin Function Description ........................................... 35 7. EXPLODED VIEWS ................................................ 38 8. ELECTRICAL PARTS LIST ............................... 41 Flexible Circuit Board Repairing ¥ Keep the temperature of the soldering iron around 270 ûC dur- ing repairing. ¥ Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ¥ Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement ¥ Never reuse a disconnected chip component. ¥ Notice that the minus side of a tantalum capacitor may be dam- aged by heat.
Page 2
Ð 3 Ð SECTION 1 GENERAL This section is extracted from instruction manual.
