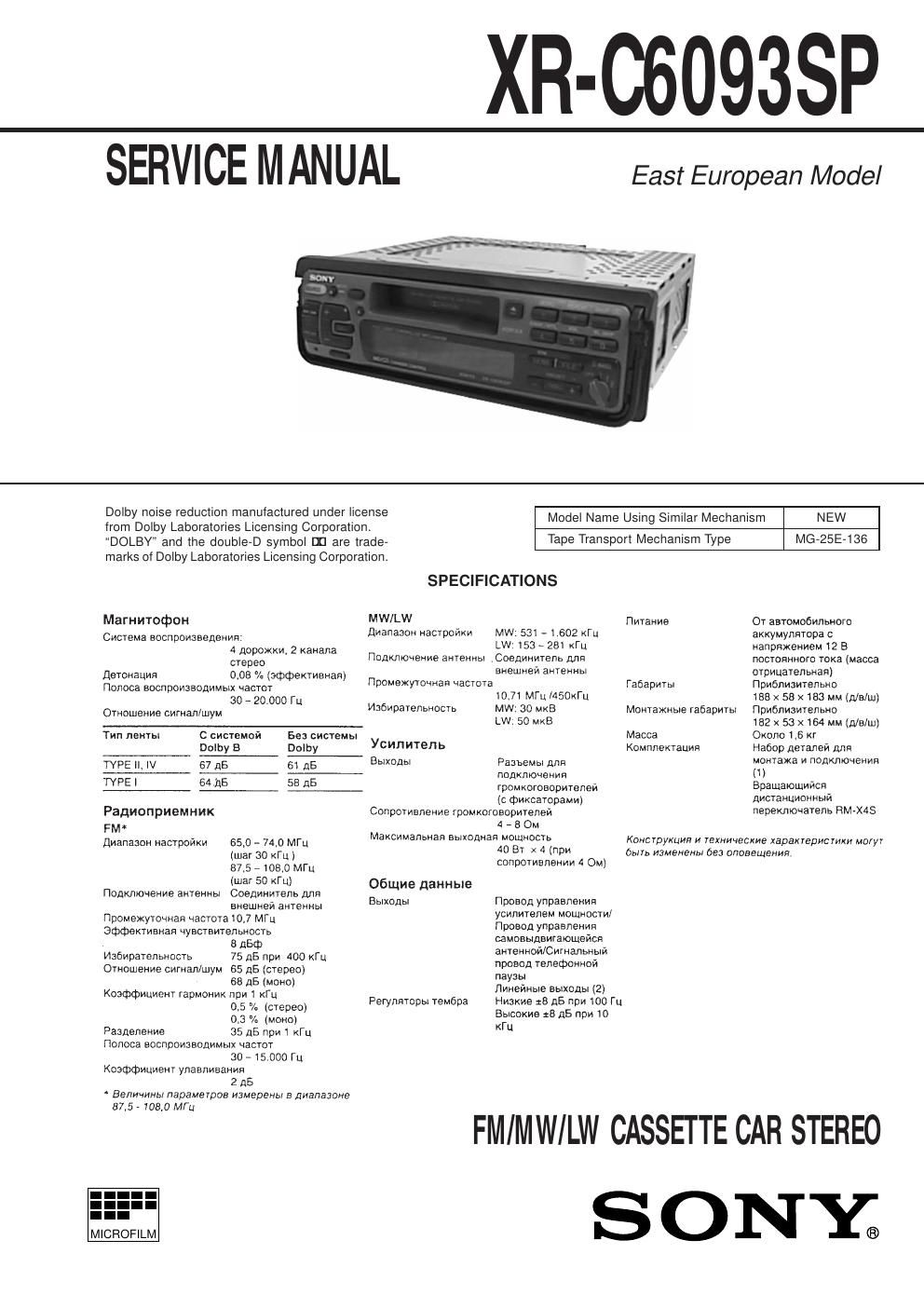

Sony xr c 6093 sp service manual
This is the 39 pages manual for sony xr c 6093 sp service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony xr c 6093 sp service manual (Ocr-read)
Page 1
Ð 2 Ð Flexible Circuit Board Repairing ¥ Keep the temperature of the soldering iron around 270 ûC dur- ing repairing. ¥ Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ¥ Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement ¥ Never reuse a disconnected chip component. ¥ Notice that the minus side of a tantalum capacitor may be dam- aged by heat. ADVARSEL Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner. VARNING Explosionsfara vid felaktigt batteribyte. AnvŠnd samma batterityp eller en likvŠrdig typ som rekommenderas av apparattillverkaren. Kassera anvŠnt batteri enligt gŠllande fšreskrifter. VAROITUS Paristo voi rŠjŠhtŠŠ, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. HŠvitŠ kŠytetty paristo valmistajan ohjeiden mukaisesti.ADVARSEL! Lithiumbatteri-Eksplosionsfare ved fejlagtig hŒndtering. Udskiftning mŒ kun ske med batteri af samme fabrikat og type. LevŽr det brugte batteri tilbage til leverand¿ren. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturerÕs instructions. TABLE OF CONTENTS 1. GENERAL ................................................................... 3 2. DISASSEMBLY ......................................................... 7 3. ASSEMBLY OF MECHANISM DECK ........... 10 4. MECHANICAL ADJUSTMENTS ....................... 13 5. ELECTRICAL ADJUSTMENTS Tape Deck Section .......................................................... 13 Tuner Section .................................................................. 15 6. DIAGRAMS 6-1. IC Pin Function Description ........................................... 18 6-2. Printed Wiring Board Ð MAIN Section Ð ...................... 21 6-3. Schematic Diagram Ð MAIN Section Ð .......................... 25 6-4. Printed Wiring Board Ð POWER Section Ð ................... 30 6-5. Schematic Diagram Ð POWER Section Ð ...................... 33 6-6. Printed Wiring Board Ð PANEL Section Ð .................... 37 6-7. Schematic Diagram Ð PANEL Section Ð ........................ 39 7. EXPLODED VIEWS ................................................ 44 8. ELECTRICAL PARTS LIST ............................... 47
Page 2
Ð 3 Ð SECTION 1 GENERAL This section is extracted from instruction manual.
