Sony xr c 5100 service manual

This is the 34 pages manual for sony xr c 5100 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 34
sony xr c 5100 service manual

Extracted text from sony xr c 5100 service manual (Ocr-read)


Page 1

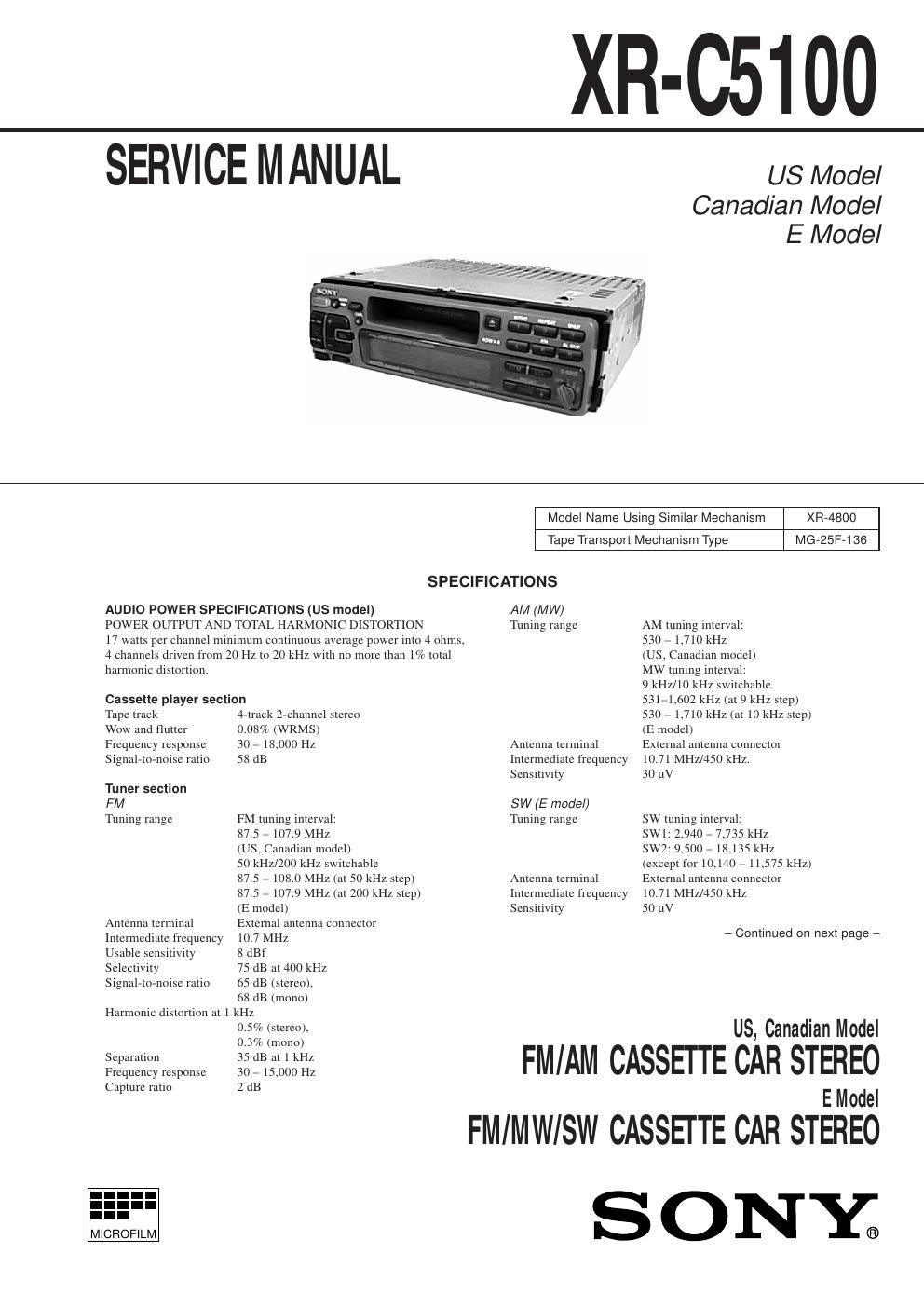

Ð 2 Ð TABLE OF CONTENTS 1. GENERAL Location of Controls ....................................................... 3 Resetting the Unit ........................................................... 4 Detaching the Front Panel ............................................... 4 Setting the Clock ............................................................. 4 Installation ....................................................................... 5 Connection ...................................................................... 7 2. DISASSEMBLY ......................................................... 9 3. ASSEMBLY OF MECHANISM DECK ............ 11 4. MECHANICAL ADJUSTMENTS ....................... 14 5. ELECTRICAL ADJUSTMENTS Test Mode ........................................................................ 14 Tape Deck Section .......................................................... 14 Tuner Section .................................................................. 15 6. DIAGRAMS 6-1. IC Pin Function Description ........................................... 17 6-2. Printed Wiring Board ÐMAIN SectionÐ ........................ 21 6-3. Schematic Diagram ÐMAIN SectionÐ ........................... 23 6-4. Printed Wiring Board ÐPANEL SectionÐ ...................... 27 6-5. Schematic Diagram ÐPANEL SectionÐ ......................... 29 7. EXPLODED VIEWS ................................................ 33 8. ELECTRICAL PARTS LIST ............................... 36 Flexible Circuit Board Repairing ¥ Keep the temperature of the soldering iron around 270 ûC dur- ing repairing. ¥ Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ¥ Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement ¥ Never reuse a disconnected chip component. ¥ Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Power amplifier section Outputs Speaker outputs (sure seal connectors) Speaker impedance 4 Ð 8 ohms Maximum power output 40 W ´ 4 (at 4 ohms) General Outputs Power antenna control lead/Power amplifier control lead/Telephone ATT control lead (E model only) Rear line out (1) Tone controls Bass ± 8 dB at 100 Hz Treble ± 8 dB at 10 kHz Power requirements 12 V DC car battery (negative ground) Dimensions Approx. 188 ´ 58 ´ 181 mm (7 1/2 ´ 2 3/8 ´ 7 1/4 in.) (w/h/d) Mounting dimensions Approx. 182 ´ 53 ´ 164 mm (7 1/4 ´ 2 1/8 ´ 6 1/2 in.) (w/h/d) Mass Approx. 1.2 kg (2 lb. 10 oz.) Supplied accessories Parts for installation and connections (1 set) Front panel case (1) Design and specifications are subject to change without notice.

Page 2

Ð 3 Ð SECTION 1 GENERAL This section is extracted from instruction manual.
