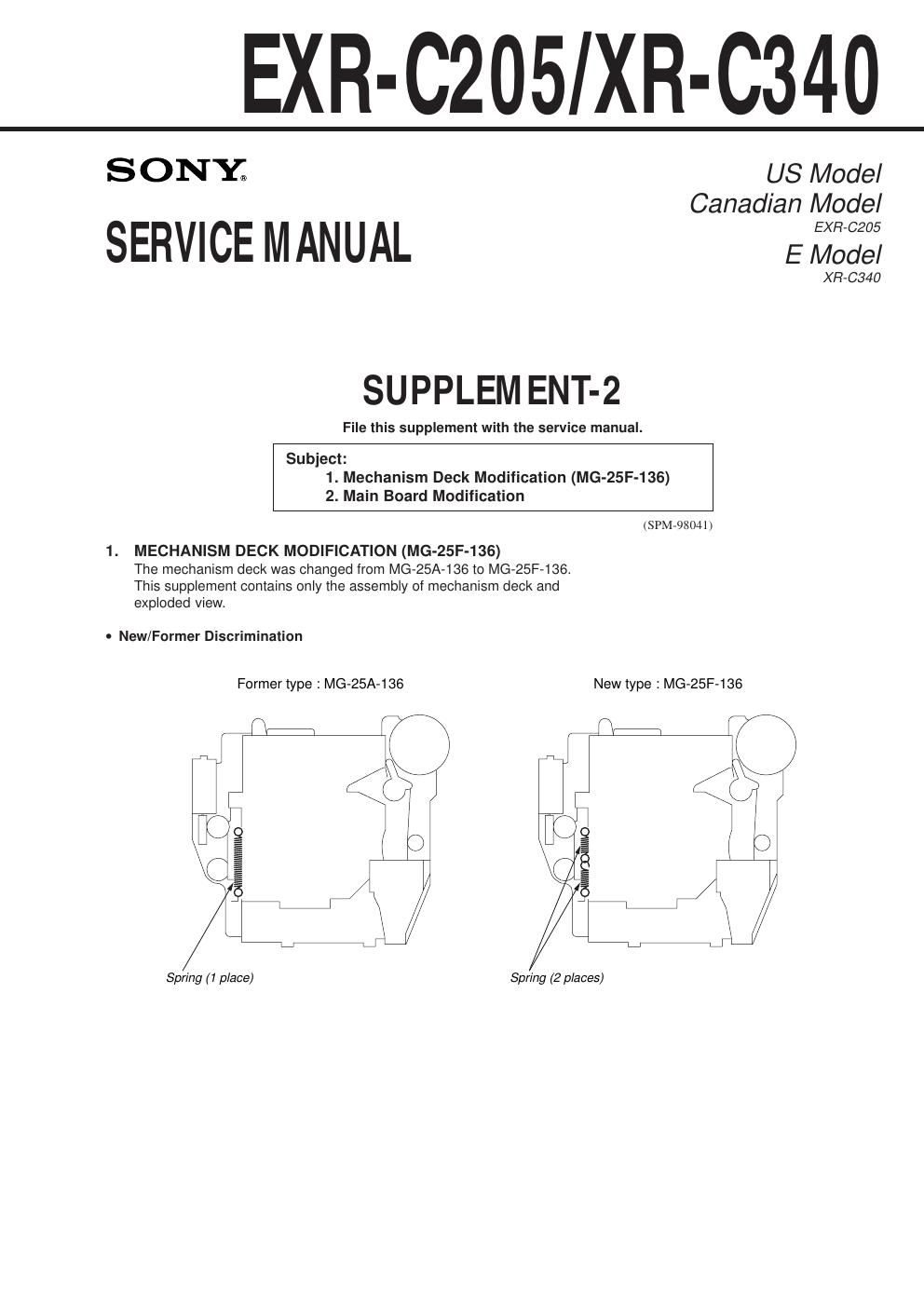

Sony xr c 340 service manual

This is the 11 pages manual for sony xr c 340 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 11
sony xr c 340 service manual

Extracted text from sony xr c 340 service manual (Ocr-read)


Page 1

Ð 2 Ð HOUSING ARM (SUCTION) Note: Follow the assembly procedure in the numerical order given. A part C part B part D part 8 Hold the hanger by bending the claw. 6 Fit projection on D part. 4 Fit claw on B part. 3 Put the housing under A part. 5 Fit projection on C part. 1 Install the catch to the hanger. 2 Install the hanger onto two claws of the housing. 7 Holder the hanger by bending the claw. hanger housing 2 Move the arm (suction) in the arrow direction and fit on projection. 1 Fit the arm (suction) on the shaft. projection 1-1. ASSEMBLY OF MECHANISM DECK

Page 2

Ð 3 Ð LEVER (LDG-A) / (LDG-B) GEAR (LDG-FT) shaft A shaft B shaft C 1 Fit the lever (LDG-A) on shafts A – C and install it. shaft A shaft B 2 Fit the lever (LDG-B) on shafts A and B and install it. 3 type-E stop ring 2.0 gear (LDG-D) 5 gear (LDG-FT) 6 polyethylene washer 2 tension spring (LD-2) 2 tension spring (LD-1) gear (LDG-FB)lever (LDG-A) hole hole 4 Align hole in the gear (LDG-D) with hole the lever (LDG-A). 3 Move the lever (LDG-B ) in the arrow direction. 1
