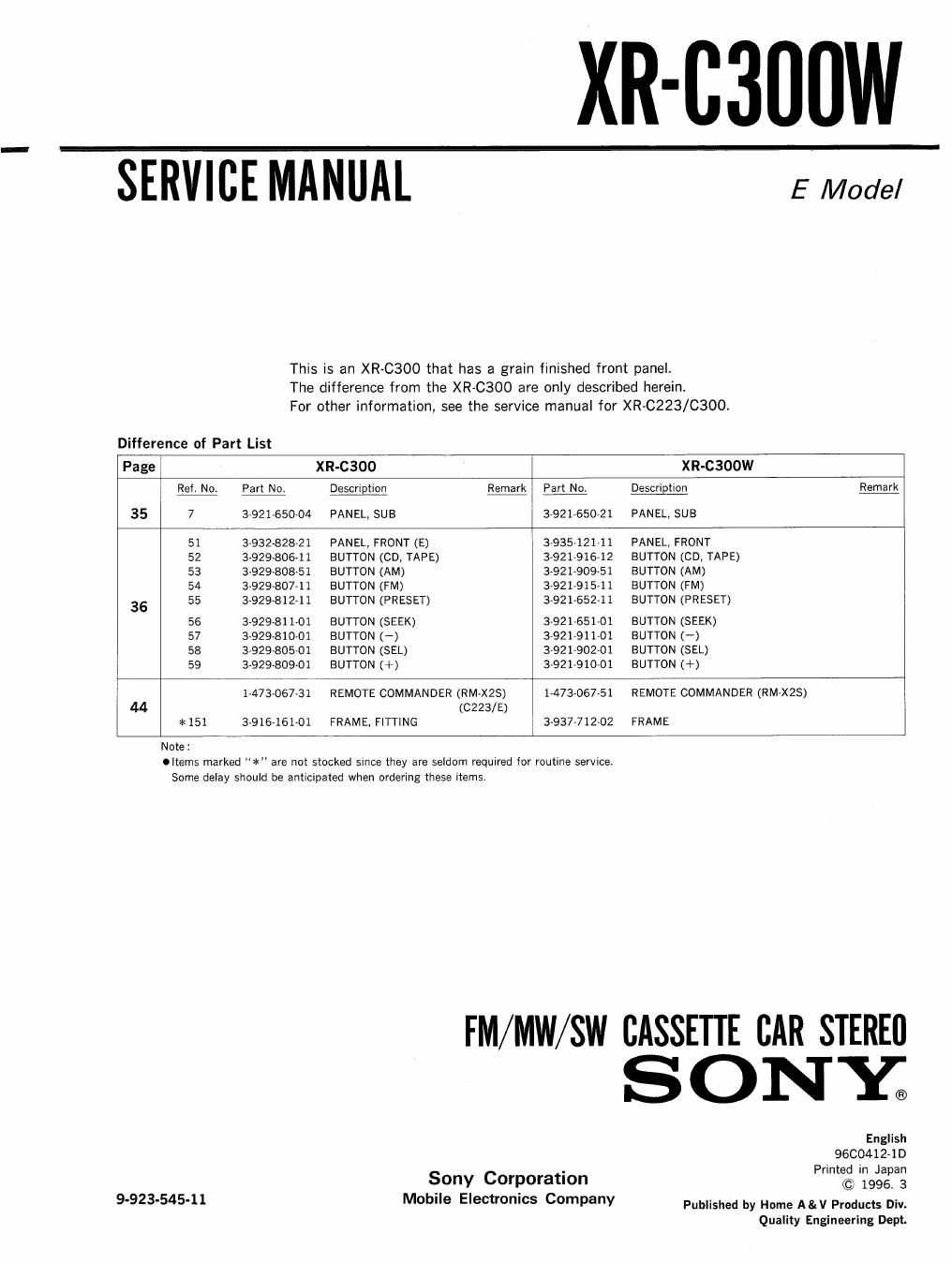

SERVICE MANUAL

XR-C300W

E Model

This is an XR-C3OO that has a grain finished front panel.
The difference from the XR-CBOO are only described herein.
For other information, see the service manual for XR»0223/C300.

Difference of Part List

Page XR-CSOO XR~C3OOW
Ref. No. Part No. Description Remark Part No. Descripfipfl Remark
35 7 392165004 PANEL, SUB 3921-65021 PANEL, SUB
51 3~932~828-21 PANEL, FRONT (E) 3-935-121~11 PANEL, FRONT
52 3-929-806-11 BUTTON (CD, TAPE) 3921-916-12 BUTTON (CD, TAPE)
53 3-929808-51 BUTTON (AM) 3921-90961 BUTTON (AM)
54 3929807-11 BUTTON (FM) 3921-915-11 BUTTON (FM)
36 55 392981241 BUTTON (PRESET) 3921-652-11 BUTTON (PRESET)
56 392981 1-01 BUTTON (SEEK) 3921-65101 BUTTON (SEEK)
57 392981001 BUTTON (-) 3-921-911-01 BUTTON (-)
58 3-929805-01 BUTTON (SEL) 3921-90201 BUTTON (SEL)
59 392980901 BUTTON (+) 3-921-910-01 BUTTON (+)
1473-067-31 REMOTE COMMANDER (RM»X2$) 1-473-067-51 REMOTE COMMANDER (RM-X25)
44 (0223/5)
* 151 391616101 FRAME, FITTING 3-937712-02 FRAME
Note:

Oltems marked *" are not stocked since they are seldom required for routine service.
Some delay should be anticipated when ordering these items.

9-923-545-1 1

FM/ MW/ SW CASSETTE CAR STEREfl

Sony Corporation

Mobile Electronics Company

SONY.

English

9600412-1D

Printed in Japan

© 1996. 3

Published by Home A&V Products Div.
Quality Engineering Dept.
