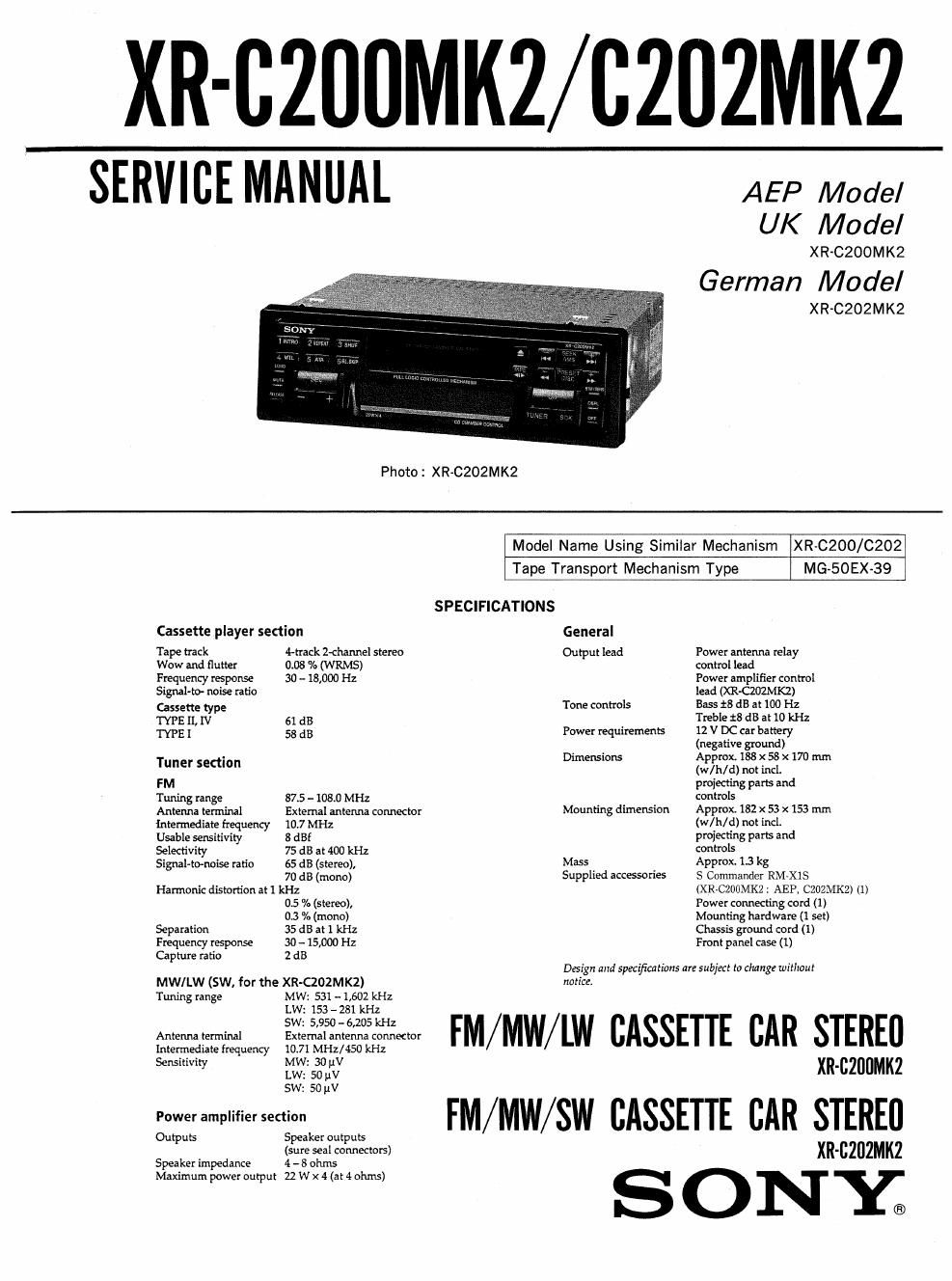

Sony xr c 202 mk2 service manual

Page 2

TABLE OF CONTENTS

Section % fig

1. GENERAL
Button Locations .................................. 3
Setting the Clock ................................. 3
Listening to Tape Playback ................... . r3
Convenient Functions .............................. 4
Tuning in a Station ................................ 4
Memorizing Stations ............................
Traffic Announcement Reception (XR-CZOZMKZ) .. . .5
Other Functions .................................... 5
CD Changer Operation .............................. 6
Connections ........................................ 7

2. DISASSEMBLY

2-1. Sub Panel ....................................... 9

2-2. Heat Sink ....................................... 9

2-3. Mechanism Deck Block .......................... 10

2-4. Main Board .................................... 10

2-5. Front Back Panel

3. ASSEMBLY OF MECHANISM DECK

3-1i Installing the Loading Gears .................... 11

3-2. Installing the Reel Bracket ...................... 11

3-3. Installing the Mode Lever and Pinch Levers ...... 12

3-4. Installing the Cassette Housing .................. 13

3-5. Installing the Loading Lever

3-6. Positioning the Loading Levers .................. 14

3-7i Installing the Gear (Loading F) .................. 14

6.

6-1.
6-2.
6-3
6-4.
6-5.
6-6.
6-7.

7.

7-1.
7-2.
7-3.

Section Title nge
4. MECHANICAL ADJUSTMENTS .................. 15
5. ELECTRICAL ADJUSTMENTS

Deck Section .

Tuner Section . ,.

DIAGRAMS
IC Pin Description .. ............ 19
Block Diagram ................. 21
Circuit Boards Location ........................ 23
Printed Wiring Boards-Main Section- ...... i .24
Schematic DiagramiMain Sectioni ............ 27
Printed Wiring BoardiPanel Section- .......... 32
Schematic Diagram-Panel Section- ............ 34
EXPLODED VIEWS
Chassis Section .................................. 40
Front Panel Section ............ 41
Mechanism Deck Section . . . ............ 42
ELECTRICAL PARTS LIST ...................... 43
