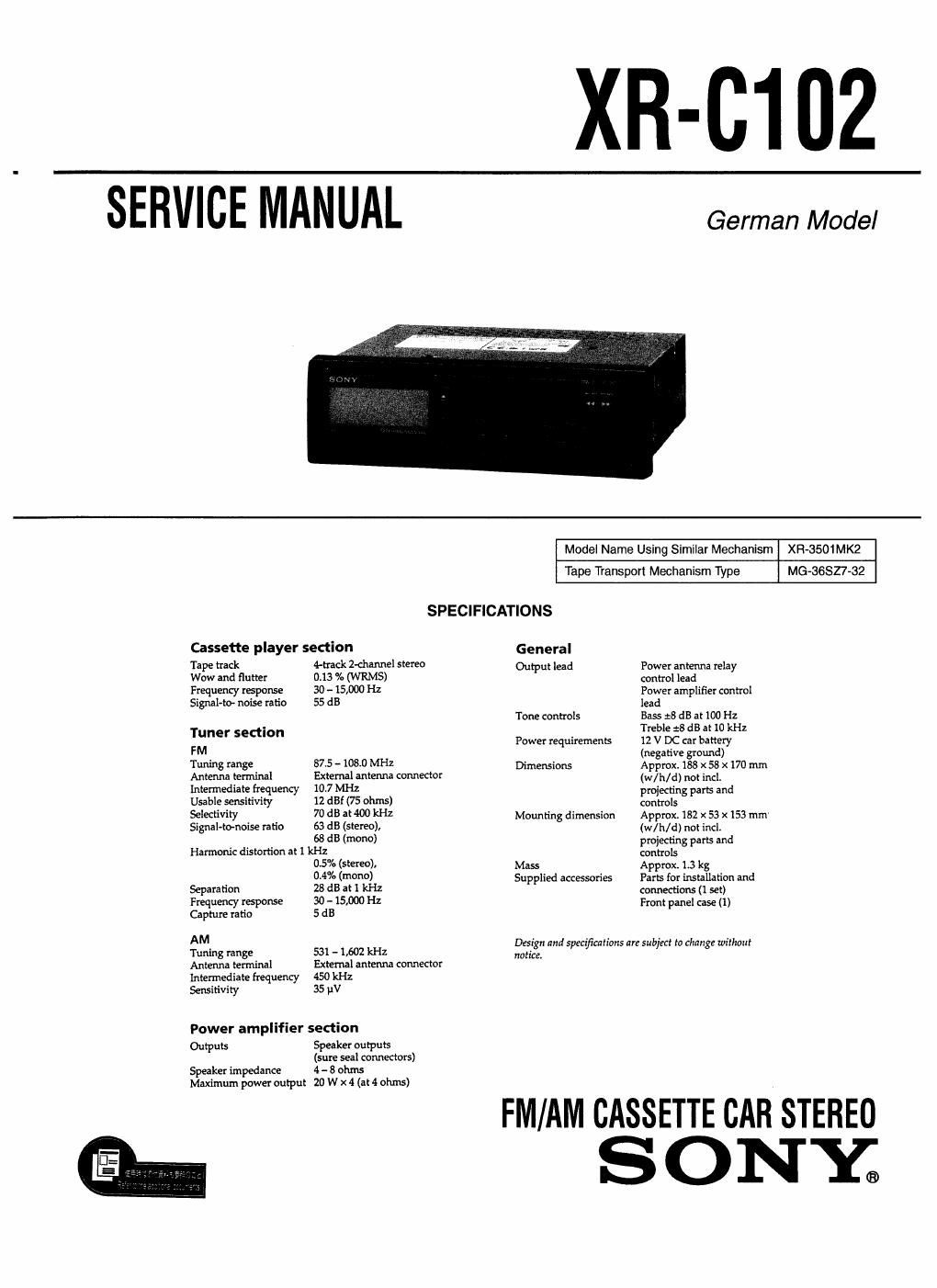

XR-CIOZ

SERVICE MANUAL

German Model

Model Name Using Similar Mechanism XFi-3501MK2

Tape Transport Mechanism Type

MG-36SZ7-32

SPECIFICATIONS
Cassette player section General
Tape track rack 2-channel stereo Output lead
Wow and flutter 0.13 % (W RMS)
Frequency response 30 - 15,000 Hz
Signal-to noise ratio 55 dB
Tone controls

Tuner section

FM
Tuning range 87.5 - 108.0 MHz
Antenna terminal External antenna connector

Intermediate frequency 1017 MHz

Usable sensitivity 12 dBf (75 ohms)
Selectivity 70 dB at 400 kHz
Signal-tortoise ratio 63 dB (stereo),
68 dB (mono)
Harmonic distortion at 1 kHz
015% (stereo),
0.4% (mono)
Separation 28 dB at 1 kHz
Frequency response 30 - 15,000 Hz
Capture ratio 5 dB
AM
Tuning range 531 - 1,602 kHz

Antenna terminal External antenna connector
Intermediate frequency 450 kHz
Sensitivity 35 uV

Power amplifier section

Outputs Speaker outputs
(sure seal connectors)
Speaker impedance 4 - 8 ohms

Maximum power output 20 W x 4 (at 4 ohms)

Power requirements

Dimensions

Mounting dimension

Mass
Supplied accessories

Power antenna relay
control lead

Power amplifier control
lead

Bass :8 dB at 100 Hz
Treble :8 dB at 10 kHz

12 V DC car battery
(negative ground)

Approx. 188 x 58 x 170 mm
(w/h/d) not incl.
projecting parts and
controls

Approx 182 x 53 x 153 mm
(w/h/d) not incl.
projecting parts and
controls

Approx. 1.3 kg

Pars (or installation and
connections (1 set)

Front panel case (1)

Design and specifications are subject to change without

notice.

FM/AM CASSETTE CAR STEREO

SONY;

Page 2

2-1,
2-2.
2-3.
2-4.
2-5.

7.

TABLE OF CONTENTS

GENERAL
Button Locations.
Setting the Clock .
Cassette Player Operation ..
Radio Reception .............
Traffic Anouncement Reception
Other Functions ..........
CD Changer Operation ..
Maintenance
Connections.


DISASSEMBLY
Cover
Lock Assy
MD Block
Heat Sink
Main Board ..

MECHANICAL ADJUSTMENTS .............................. 12

ELECTRICAL ADJUSTMENTS
Deck Section ..
Tuner Section ..


DIAGRAMS
IC Pin Description ......
Printed Wiring Boards
Schematic Diagram

EXPLODED VIEWS
Chassis Section
Front Panel Section
Mechanism Section (1) ..
Mechanism Section (2) ..

ELECTRICAL PARTS LIST ...................................... 32

Notes on Chlp Component Replacement
- Never reuse it disconnected chip component.
0 Notice that the minus side of a tantalum capacitor may be dam-

aged by heat.

-2-
