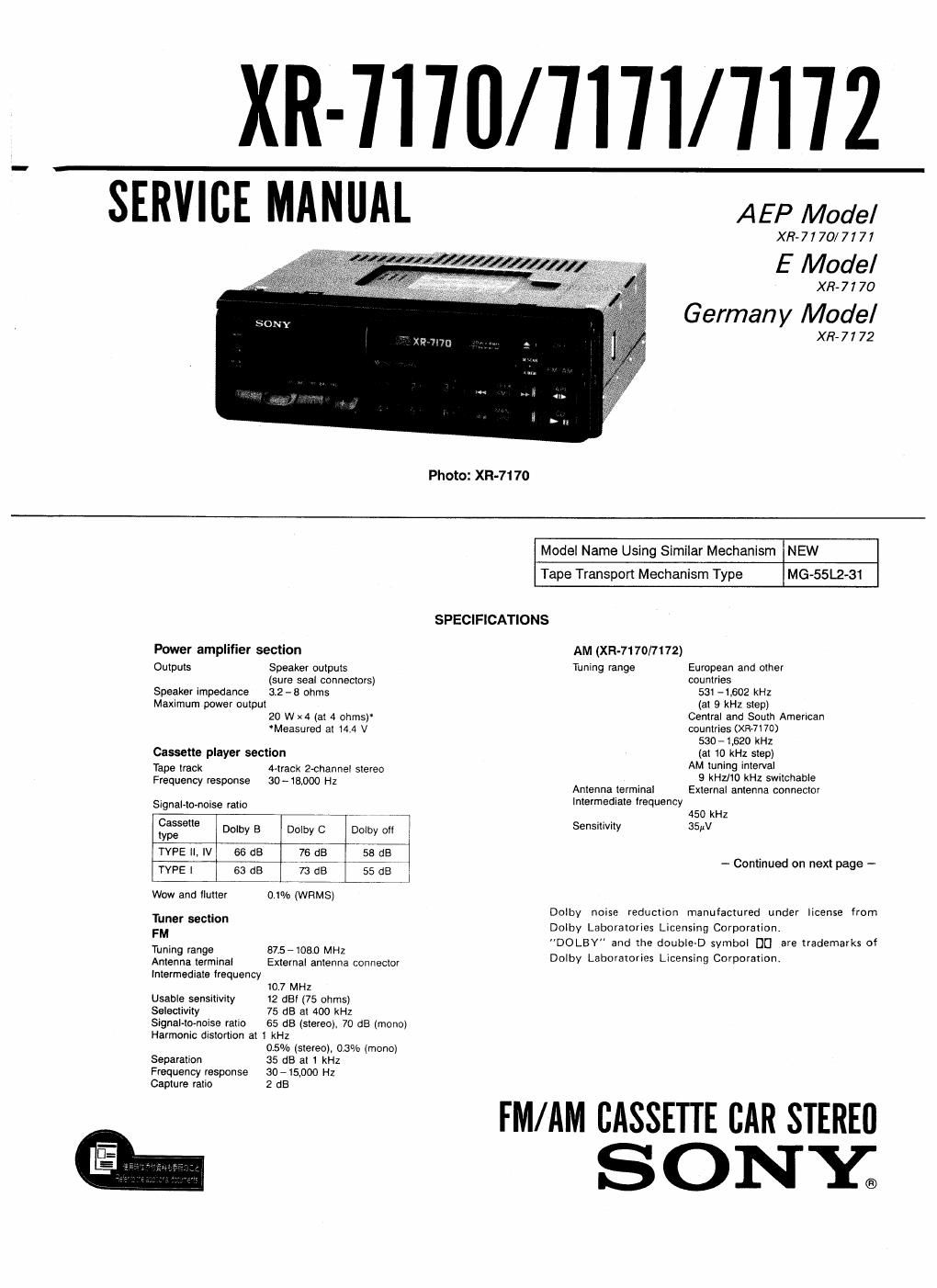

Sony xr 7171 service manual

This is the 44 pages manual for sony xr 7171 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 44
sony xr 7171 service manual

Extracted text from sony xr 7171 service manual (Ocr-read)


Page 2

XR-71 70/71 71/71 72

MW/LW (XFI-7171)
Yuning range MW: 531 4,602 kHz

LW: 153-281 kHz
Antenna terminal External antenna connector

Intermediate lrequency

450 kHz
Sensitivity MW: 35W
LW: 70uV
General
Output lead Power antenna relay control

lead
Power amplifier control lead
Bass :10 dB at 100 Hz
Treble :10 dB at 10 kHz
+10 dB at 100 Hz
+6 dB at 10 kHz
12 V DC car battery
(negative ground)
Dimensions (wilhout bracket)
Approx. I78 x 50 x153 mm
(wlh/d).
not incl. projecting parts and
controls

Tone controls
Loudness

Power requirements

Mounting dimensions

Approx. 182 x 53 x145 mm
(wlhld).

not incl. proiecting parts and

contnrols

Weight Approx. 1.9 kg

Accessories supplied

Mounting hardware (I set)

Design and specifications subject to change without
notice.

TABLE OF CONTENTS

Section Title Page
Specifications ~~~~~~~~~~~ A A 1
Note for Lithium battery 2
1. GENERAL
Location and Function of Controls ----------- 3
Installation .. . . . . . ....................... 4
Connections ............. 4 . . . . 6
Cassette Deck Operation . . 8
Radio Reception --------- - - - . ........ . . . . . 9
CD Operation . ........................ . . . 10
Maintenance ............................. 11
2. DISASSEMBLY ......................... 12
3. ADJUSTMENTS
3-1. Mechanical Adjustment ------ . -------- - - - - ~ 14
3-2. Electrical Adjustments
Deck Section
Tuner Section
4. DIAGRAMS
4-1. IC301 ( u PD75516G) Functional
Description . . . . . . . 20
4~2. Schematic Diagram . ~ ~ ~ ~ ~ . 25
4-3. Printed Wiring Boards ...... . ..... . 31
5. EXPLODED VIEWS ------------------ ' 35
6. ELECTRICAL PARTS LIST ---------- . - 38

Note for Lithium Battery

CAUTION

Danger of explosion il battery is incorrectly
replaced. Replace only with the same or
equivalent type recommended by the equipment
manufacturer. Discard used batteries according
to manufacturer's instructions.

ADVARSELI
Lithiumbatteri-Eksvlosionsiare ved leilagtig héndtering.
Udskittning ma kun ske med batteri
at samme fabrikat 03 type.

Lever det bmgte batteri tilbage til leverandcren.

ADVARSEL

Lithiumbatteri - Eksplosionslaret
Ved utskilting benyttes kun batteri som
anbelalt av appamtlabrikanten.
Brukt batteri returneres apparatleverandtren.

VARNING

Explosionslara vid telaktigt batteribyte.
Anvand samma battefityp eller en ekvivalent
typ som rckommenderas av apparaltillverkaren.
Kassera anviint batteri enligt labrikantens
instmklion.

VAROITUS

Paristo voi rtiiahtaa. ios se on virheellisesti asennettu.
Vaihda pan'sto ainoastaan laitevalmistainn suositlelemaan
tyyppiin. Havitfa kaytetty paristo valmistaian ohjeiden
mukaisesti.
