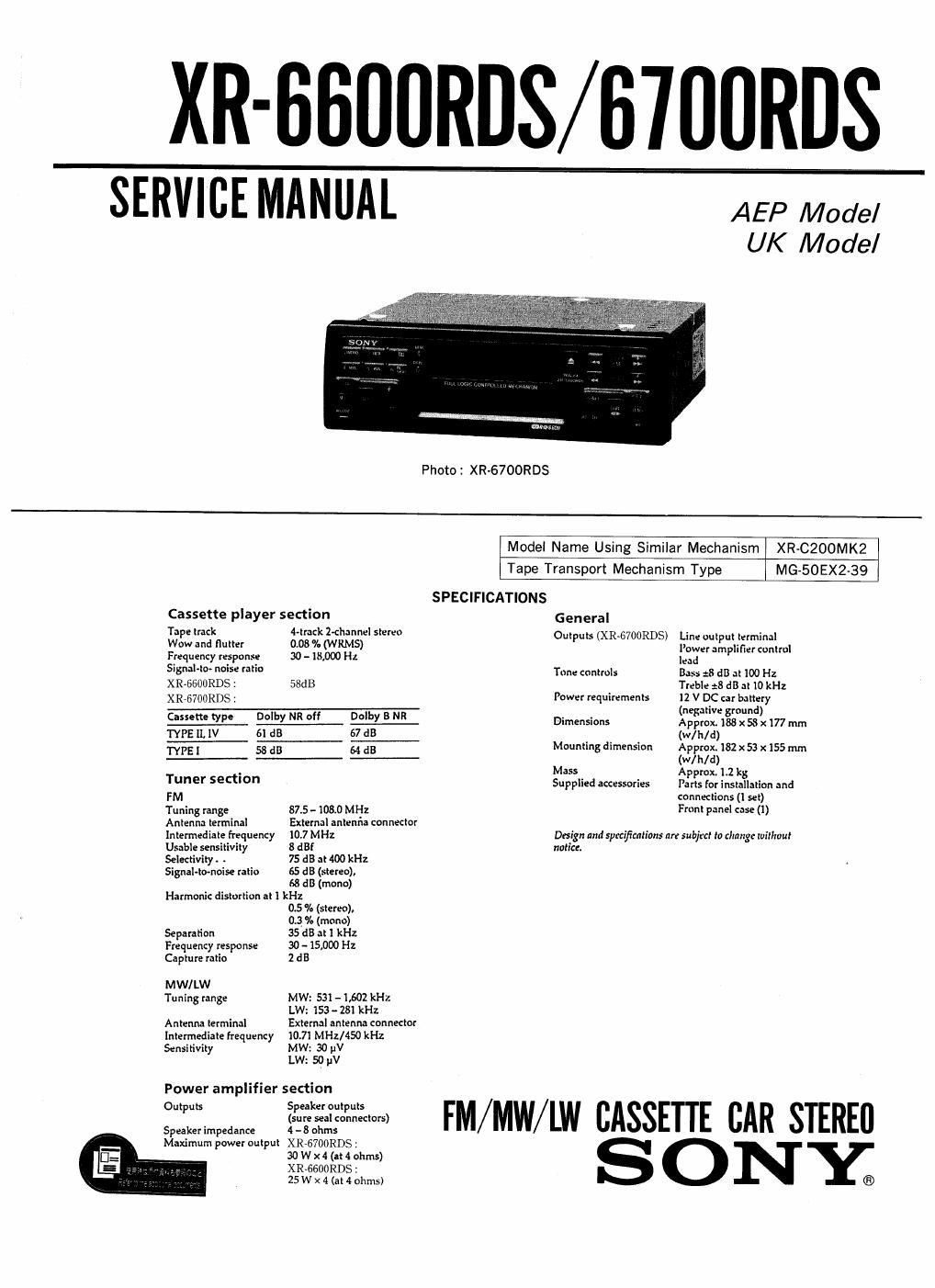

Sony xr 6700 rds service manual

Page 2

TABLE OF CONTENTS

Section Lfle P35
1. GENERAL
Location of Controls ....................
Setting the Clock ................................. 3
Cassette Player Operation ......................... 3
Radio Reception ................................... 4
RDS Functions ................................... 5
Other Functions .................................... 7
Connections ........................................ 8
2. DISSASSEMBLY
2-1. Sub Panel Assy . . . ...................... 10
2-2. Amplifier Board ....... ..10
2-3. Mechanism Deck Block . .. .11
2-4. Main Board ........................... , .11
2-5. Key Board ..................................... 12
3. ASSEMBLY OF MECHANISM DECK
3-1. Installing the Loading Gears .................... 13
3-2. Installing the Reel Bracket ...................... 13
3-3. Installing the Mode Lever and Pinch Levers ...... 14
3-4. Installing the Cassette Housing . . .
3-5. Installing the Loading Lever
3-6. Positioning the Loading Levers .
3-7. Installing the Gear (Loading F) ......
4. MECHANICAL ADJUSTMENTS .................. 17
5. ELECTRICAL ADJUSTMENTS
Deck Section ...................................... 17
Tuner Section .................................... 18
6. DIAGRAMS
6-1. IC Pin Description ....................
6-2. Printed Wiring Boards-Main Section-
6v3. Schematic Diagravaain Section- ............
64. Schematic Diagram-Amplifier Section- ........ 31
6-5. Schematic Diagram4Panel Section? ............ 33
6-6. Printed Wiring Board-Panel Section? .......... 35
7. EXPLODED VIEWS
7-1. Chassis Section ..........................
7-2. Front Panel Section
73. Mechanism Deck Section ........................ 42
8. ELECTRICAL PARTS LIST ...................... 43

Dolby noise reduction manufactured under license from Dolby Labora-
tories Licensing Corporation.
"DOLBY" and the double-D symbol DU are trademarks of Dolby Labora-
tories Licensing Corporation.
