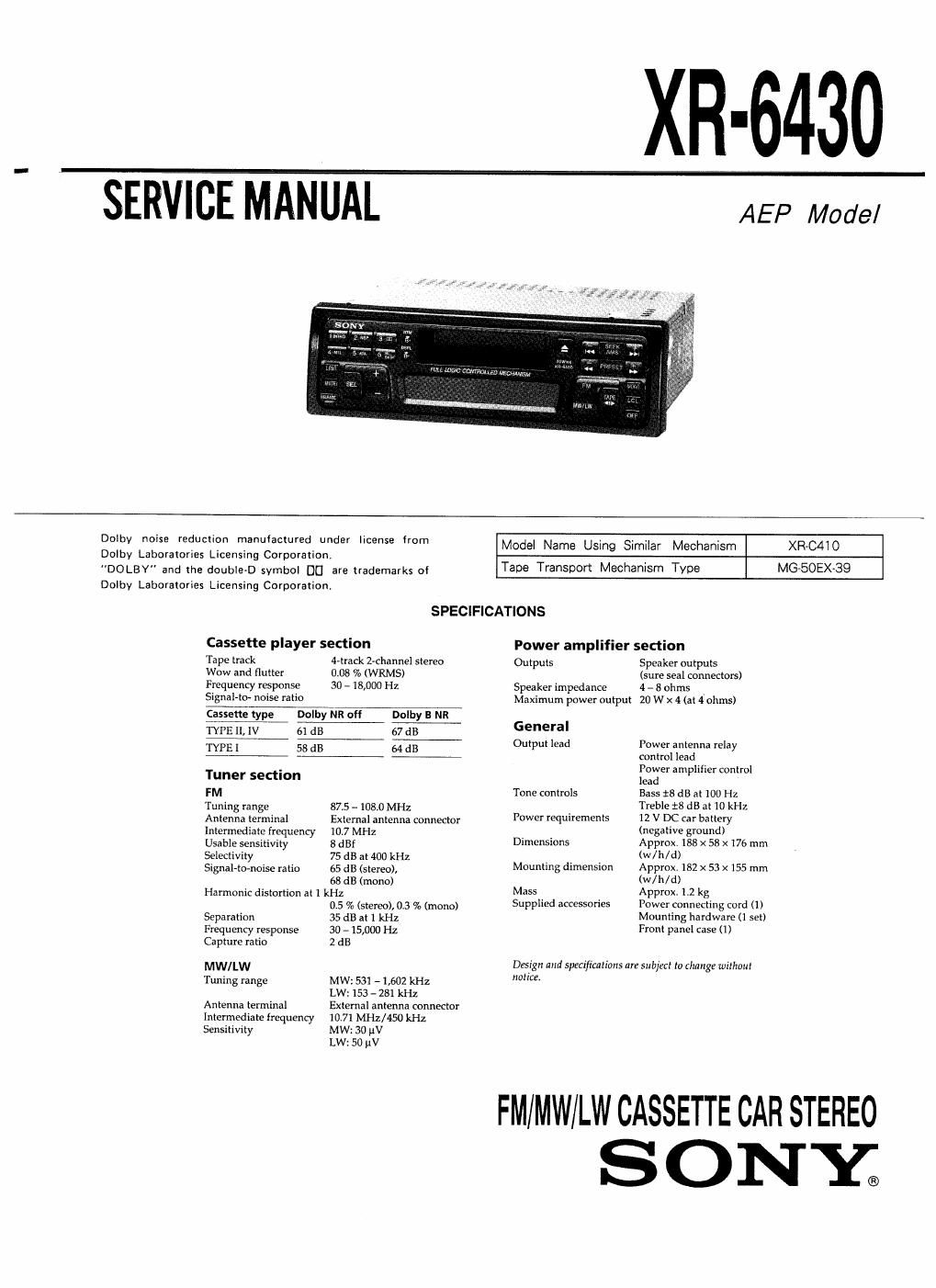

Page 1

XR-6430

SERVICE MANUAL

AEP Model

Dolby noise reduction manulactured under license trom

Dolby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol DC] are trademarks ol
Dolby Laboratories Licensing Corporation

Model Name Using Similar Mechanism

XR-C4l O

Tape Transport Mechanism Type

MG-50EX-39

SPECIFICATIONS

Cassette player section

Power amplifier section

Tape track

Wow and flutter
Frequency response
Signal-to~ noise ratio

Cassette type
TYPE 11, 1V _
TYPE I

Tuner section
FM

Tuning range

Antenna terminal
Intermediate trequency
Usable sensitivity
Selectivity
Signal-to-noise ratio

4-track 2~channel stereo
0.08 % (WRMS)
30 - 18,000 Hz

Dolby B NR
67 dB
64 dB

87.5 ~ 108A) MHz

External antenna connector
10.7 MHz

8 dBf

75 dB at 400 kHz

65 dB (stereo),

68 dB (mono)

Harmonic distortion at 1 kHz

Separation
Frequency response
Capture ratio

MW/LW

Tuning range

Antenna terminal
Intermediate trequency
Sensitivity

0.5 % (stereo), 0.3 % (mono)
35 dB at 1 kHz

30 - 15,000 Hz

2 dB

MW: 531 - 1,602 kHz

LW: 153 - 281 kHz
External antenna connector
10.71 MHZ/450 kHz

MW: 30 av

LW: 50 11V

Outputs

Speaker impedance
Maximum power output

General
Output lead

Tone controls

Power requirements
Dimensions
Mounting dimension

Mass
Supplied accessories

Speaker outputs
(sure seal connectors)
4 - 8 ohms >

20 W x 4 (at 4 ohms)

Power antenna relay
control lead

Power amplifier control
lead

Bass :8 dB at 100 Hz
Treble :8 dB at 10 kHz

12 V DC car battery
(negative ground)

Approx. 188 X 58 x 176 mm
(w/h/d)

Approx.182 x 53 x155 mm
(w/h/d)

Approx 1.2 kg

Power Connecting cord (1)
Mounting hardware (1 set)
Front panel case (I)

Design and specifications are subject to change without

nolitz.

FM/MW/LW CASSETTE CAR STEREO
S 0 NY;
