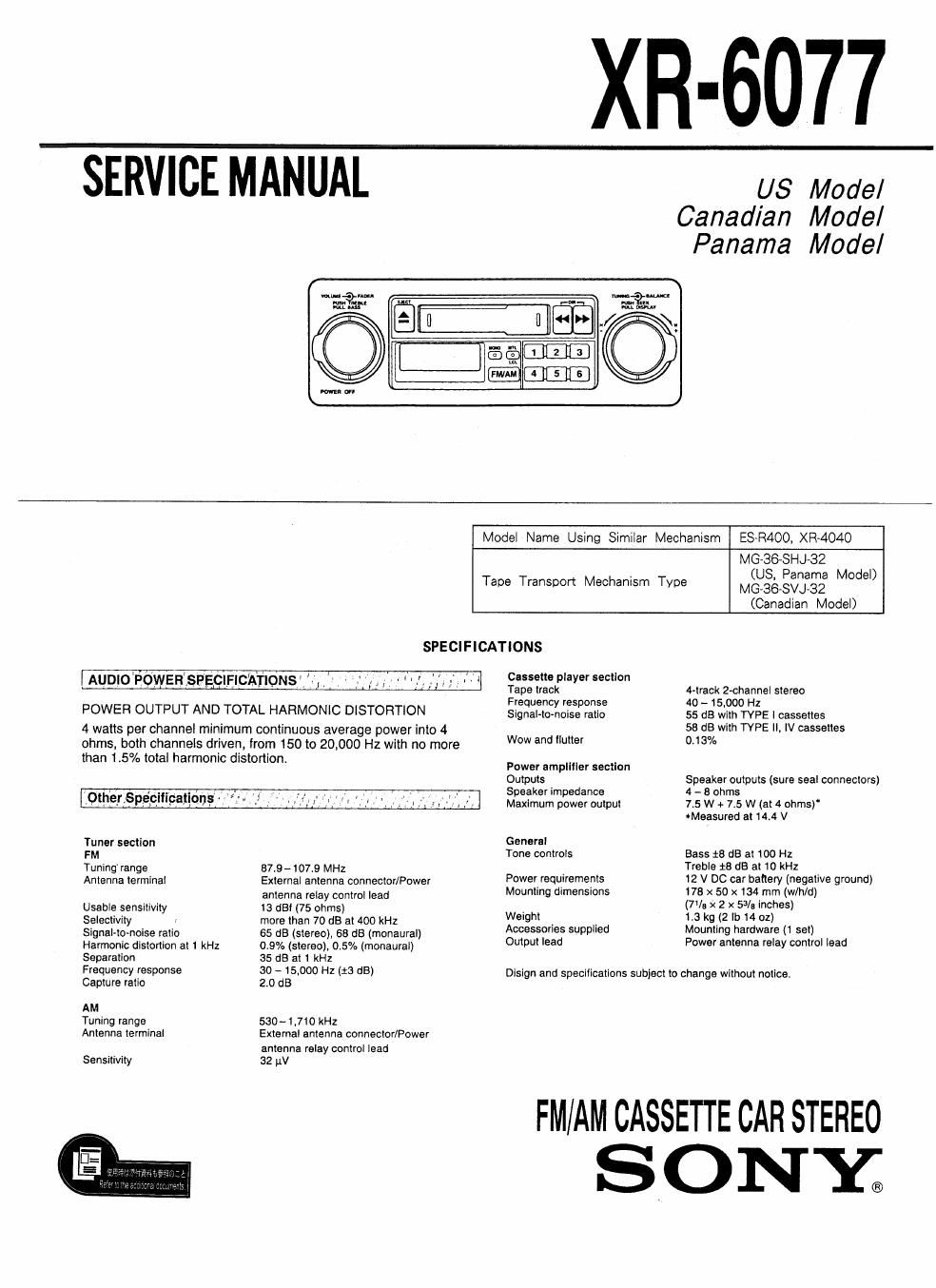

Page 1

R-6077

SERVICE MANUAL

US Model
Canadian Model
Panama Model

$.33 g [1 EB an?

ESVR400, XR-404O
MG-36-SHJ-32
(US, Panama Model)
MG-SG-SVJ-32
(Canadian Model)

Model Name Using Similar Mechanism

Tape Transport Mechanism Type

SPECIFICATIONS

.m ,- l
'il

lAUDIO[POWER'SPEQFIC'ATIONS' 1"," , :4 1' Cassette player sectlon

POWER OUTPUT AND TOTAL HARMONIC DISTORTION

4 watts per channel minimum continuous average power into 4
ohms, both channels driven, from 150 to 20,000 Hz with no more

than 1.5% total harmonic distortion.

Tape track
Frequency response
Signal-to-noise ratio

Wow and flutter

Lmherfipeiwicarions

Tuner section
FM

Tuning range
Antenna terminal

Usable sensitivity
Selectivity i
Signal-to-noise ratio
Harmonic distortion at 1 kHz
Separation

Frequency response
Capture ratio

AM
Tuning range
Antenna terminal

Sensitivity

819-1078 MHZ

External antenna connector/Power
antenna relay control lead

13 dBl (75 ohms)

more than 70 dB at 400 kHz

65 dB (stereo). 68 dB (monaural)
0.9% (stereo). 0.5% (monaural)

35 dB at 1 kHz

30 -15.000 Hz (13 dB)

2.0 dB

530 ~1.710 kHz

External antenna connector/Power
antenna relay control lead

32 av

Power amplitler section
Outputs

Speaker impedance
Maximum power output

General
Tone controls

Power requirements
Mounting dimensions

Weight
Accessories supplied
Output lead

4-track 2-channel stereo

40 - 15,000 Hz

55 dB with TVPE | cassettes

58 dB with TYPE ll, IV cassettes
0.13%

Speaker outputs (sure seal connectors)
4 - 8 ohms

7.5 W + 7.5 W (at 4 ohms)

*Measured at 144 V

Bass t6 dB at 100 Hz

Treble 18 dB at 10 kHz

12 V DC car battery (negative ground)
178 x 50 x134 mm (w/h/d)

(71/; x 2 x 53/; inches)

1.3 kg (2 lb 14 oz)

Mounting hardware (1 set)

Power antenna relay control lead

Disign and specifications subject to change without notice.

FM/AM CASSETTE CAR STEREO
S.ONY®
