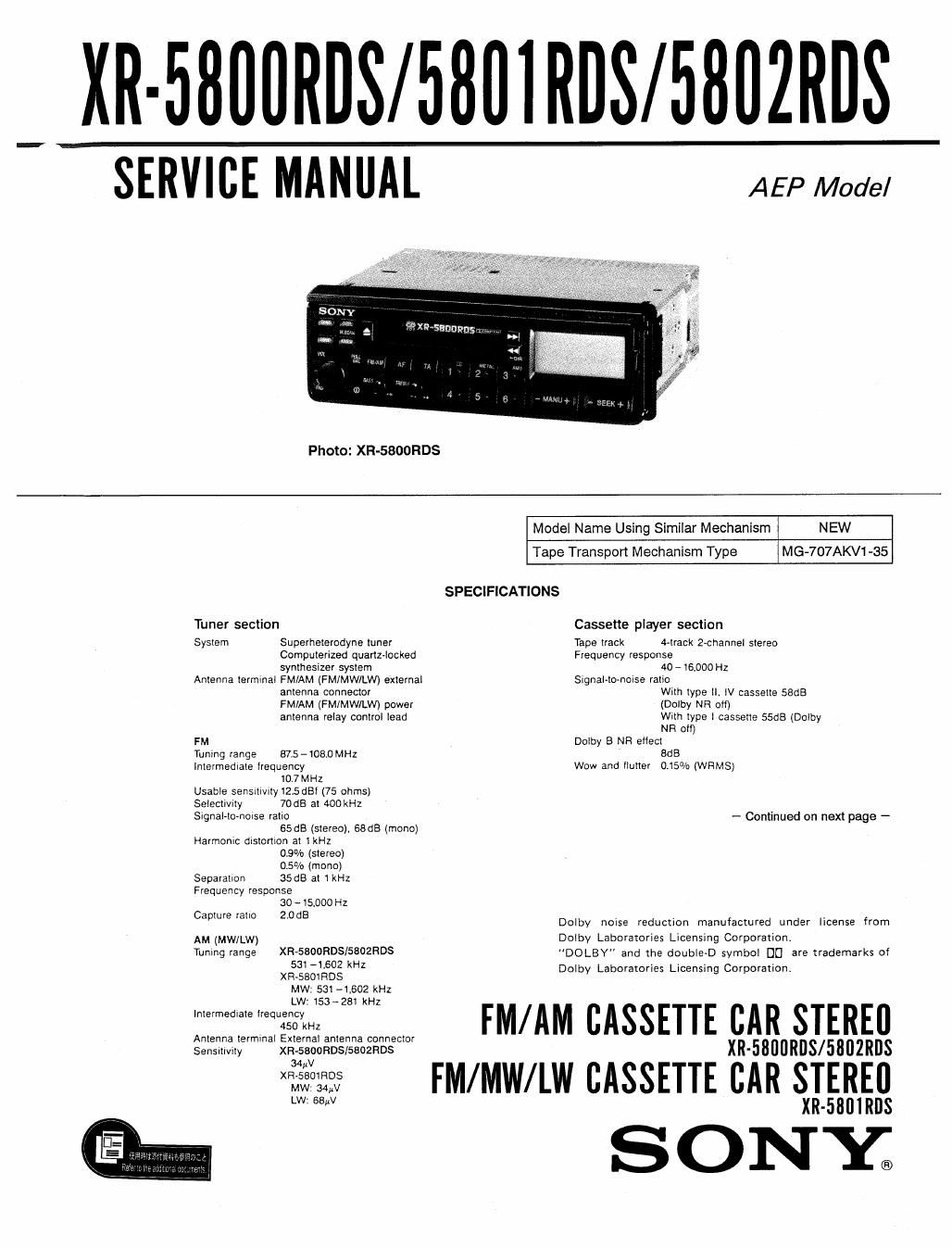

Page: 1 / 63
sony xr 5802 rds service manual

Extracted text from sony xr 5802 rds service manual (Ocr-read)


Page 2

XR-5800RDS/5801RDS/5802RDS

Power amplifier section

Outputs Speaker outputs (sure seal
connectors)
Preamp outputs (phono jacks)
Speaker impedance
3.2 -8 ohms
Maximum power output
25W x 2 (at 4 ohms)
15W x 4 (at 4 onms)
'Measured at MAV

General

Tone controls Bass :8 dB at 100 Hz

Treble :8 dB at 10 kHz

Loudness +6 dB at I00 Hz
+6 dB at IO kHz
Output lead Power antenna relay control lead

Power requirements
12 V DC car battery (negative
ground)
Approx. 178 x 50x160 mm (w/h/d)
not incl. projecting pans and
controls
Mounting dimensxons
Approx. tBZ x 53 x145 mm wlh/d)
not incl. projecting parts and
controls
Weight Approx. 13 kg
Accessories supplied
Mounting hardware (1 set)

Dimensions

Design and specifications subject to change without
notice.

TABLE OF CONTENTS

Section Title Page
Specifications .................................. 1

1. GENERAL

Location and FUnction of Controls ----------- 3
Installation . . . ........................... 4
Connemkms ............................. 5
Tape Playback 6
Automatic Tuning ............... . ....... . 6
Manual Tuning ........................... 5
Memory Preset Tuning 7
Overview of the RDS Function ------------- 7
StatiOn Name Display ..................... 7
Automatic Re-tuning . - 8
Traffic Infomation Reception --------------- 8
Maintenance .......................... . . . 8
2, DISASSEMBLY . . . . . .................... 9
3. ADJUSTMENTS
3-1. Mechanical Adjustment -------------------- 12
Torque Measurement ...................... 12
3-2. Electrical Adjustment Deck Section -------- 12
Tuner Section ...................... . ..... 13
4. DIAGRAMS
4-1. Printed Wiring Boards ---------- . - - ~ - ----- 18
4-2. Schematic Diagram -------------- . -------- 23
5. EXPLODED VIEWS ----------------- - - . 30
