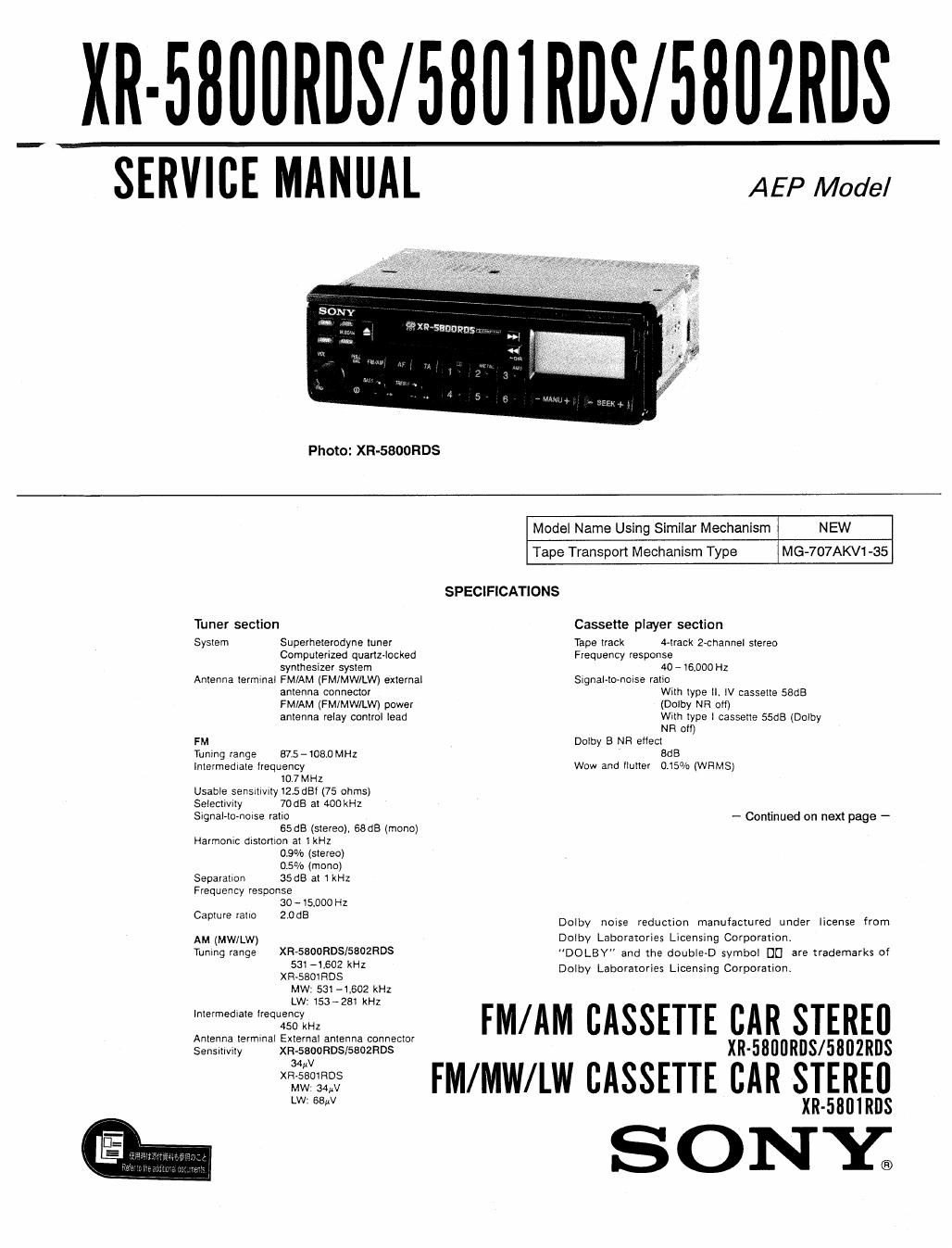

Sony xr 5801 rds service manual
This is the 63 pages manual for sony xr 5801 rds service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony xr 5801 rds service manual (Ocr-read)
Page 2
XR-5800RDS/5801RDS/5802RDS
Power amplifier section
Outputs Speaker outputs (sure seal
connectors)
Preamp outputs (phono jacks)
Speaker impedance
3.2 -8 ohms
Maximum power output
25W x 2 (at 4 ohms)
15W x 4 (at 4 onms)
'Measured at MAV
General
Tone controls Bass :8 dB at 100 Hz
Treble :8 dB at 10 kHz
Loudness +6 dB at I00 Hz
+6 dB at IO kHz
Output lead Power antenna relay control lead
Power requirements
12 V DC car battery (negative
ground)
Approx. 178 x 50x160 mm (w/h/d)
not incl. projecting pans and
controls
Mounting dimensxons
Approx. tBZ x 53 x145 mm wlh/d)
not incl. projecting parts and
controls
Weight Approx. 13 kg
Accessories supplied
Mounting hardware (1 set)
Dimensions
Design and specifications subject to change without
notice.
TABLE OF CONTENTS
Section Title Page
Specifications .................................. 1
1. GENERAL
Location and FUnction of Controls ----------- 3
Installation . . . ........................... 4
Connemkms ............................. 5
Tape Playback 6
Automatic Tuning ............... . ....... . 6
Manual Tuning ........................... 5
Memory Preset Tuning 7
Overview of the RDS Function ------------- 7
StatiOn Name Display ..................... 7
Automatic Re-tuning . - 8
Traffic Infomation Reception --------------- 8
Maintenance .......................... . . . 8
2, DISASSEMBLY . . . . . .................... 9
3. ADJUSTMENTS
3-1. Mechanical Adjustment -------------------- 12
Torque Measurement ...................... 12
3-2. Electrical Adjustment Deck Section -------- 12
Tuner Section ...................... . ..... 13
4. DIAGRAMS
4-1. Printed Wiring Boards ---------- . - - ~ - ----- 18
4-2. Schematic Diagram -------------- . -------- 23
5. EXPLODED VIEWS ----------------- - - . 30
