sony xr 5450 fp service manual

Extracted text from sony xr 5450 fp service manual (Ocr-read)


Page 1

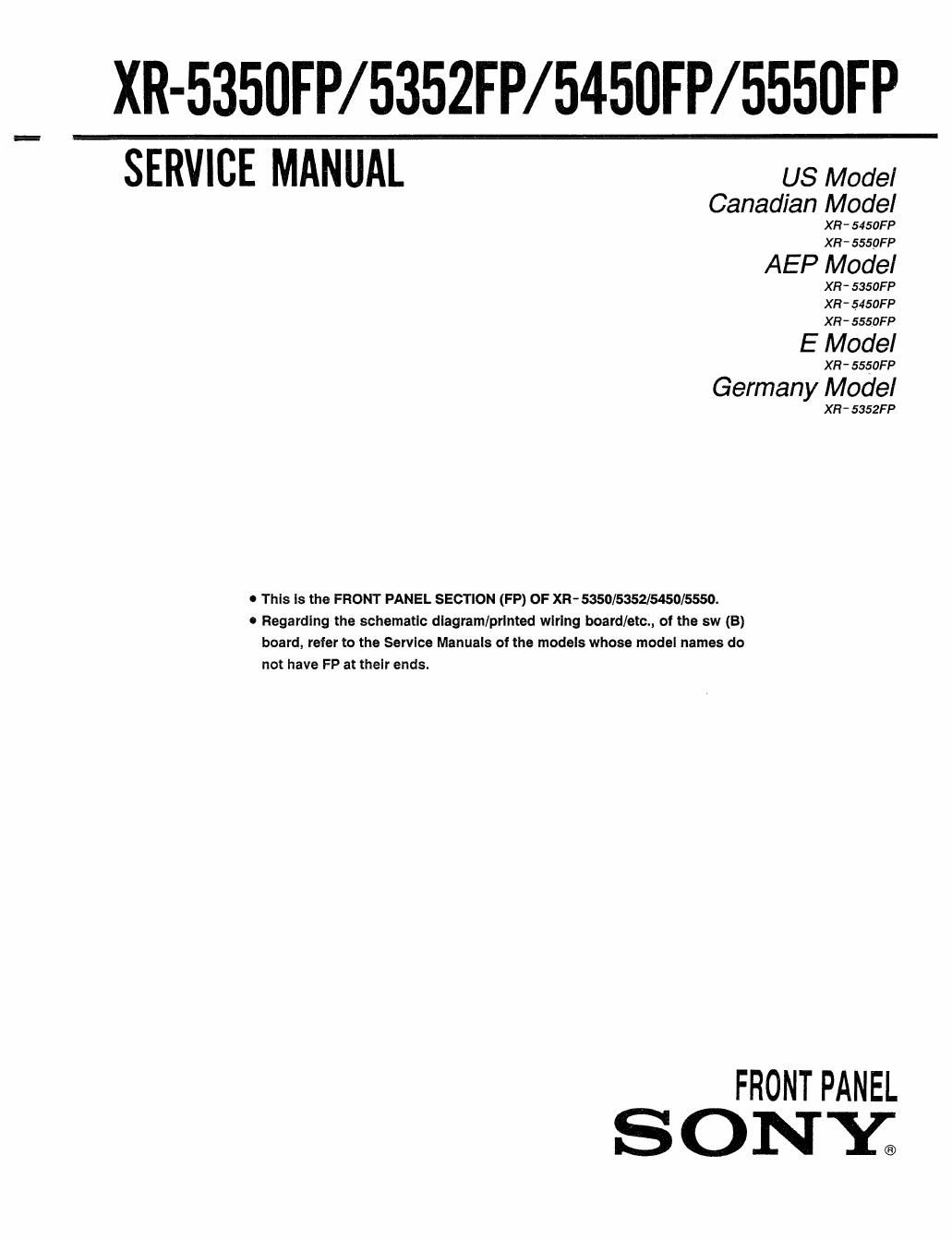

_X-R 5350FP/5352FP/5450FP/5550FP

_SERVICE MANUAL us Model

Canadian Model
XR- 5450FP
XR- 5550FP

AEP Model

XH' 5350FP
XR- 5450FP
XR 5550FP

E Model

xn- 555on

Germany Model

XR- 5352FP

0 This Is the FRONT PANEL SECTION (FP) OF XR- 5350/5352/5450/5550.

0 Regarding the schematic diagram/prlnted wiring board/eta, of the sw (B)
board, refer to the Service Manuals of the models whose model names do
not have FP at their ends.

FRONT PANEL

SONE

Page 2

XR- 5350FP/5352FP/5450FP/5550FP

NOTE:

0 -xx. -X mean standardized parts. I
so they may have some differences
from the original one.

FRONT PANEL SECTION

EXPLODED VIEWS

Items marked 8" are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items

24

The mechanical parts with no reference
number in the exploded Views are
not supplied.

7
Ref No. Part No. Descrigtion Remarks Ref. No. Part No. Description Remarks
5 3-375~352-01 BUTTON (13) (545017?) 16 3-375-353-01 BUTTON (4)
5 3-315-352-11 BUTTGT (1-3) (SSSOFP) T7 3-315-351-01 BUTTON (RT) (EXCEPT 53521?)
5 3-375-352-21 BUTTON (1-3) (SKSOFP/535ZF'P) I'l 3-377-63Z-II BUTTW (R4) (SSSZFP)
6 3-375-347-5T PANEL. FRTNT (5350!?) 18 3-375-357-0I BUTTON (Z GANG)
6 3-375-347-61 PANEL. FRUIT (535217?) 19 3-375-353-01 BUTTM (RHEASE)
6 3-375-347-71 PANEL, FRONT (545017?) 20 3-375-313-01 SPRIM (RELEASE)
6 3-375-347-91 FAITH, FRONT (5550!?) t 21 3-357-087-01 HOLDER (LCD)
7 3-375-361-01 BUTTON (REV) t 22 A-3273-738-A SI(B)BOARD, MAPLE? (5450FP:AEF)
8 3-375-360-01 BUTTON (FF) 8 22 A-3273-782-A SI(B)BOARD. WHITE (STSOFP:US,Canadian/
9 3~375-37Z-01 SPRING (FF RETI) 5350FP/5550FP)
t 22 A-3273-989-A S'(B)BOARD, W (535217?)

10 3~375-356-01 BUTTON (#)
TI 3-375-355-01 BUTTGT (SEL) 23 3-375-348-01 PANEL. FRONT BACK
TZ 3~375-354-01 BUTTON (-) 24 3-318-757-01 PLATE (F-S), GROUND
13 X3364-976-l BUTTON ASSY, EJECT [£0101 1-808-915-11 DISPLAY, LIQUID CRYSTAL
14 3-375-371-01 SPRING (EJECT) #1 7-685-105-19 SCREW +P 2X8 TYFEZ NON-SLIT

#4 7-685-104-19 SCREI +17 2X6 TYPEZ NON-SLIT

15 3-377-617411 BUTTON (ll/SEEK)

Engllsh

_ 92016754

Sony Corporation Printed in Japan

9-957-174-11 Moblle Electronlcs Group ©1992A

Publlahed by Customer fi-mlons and Service Group
