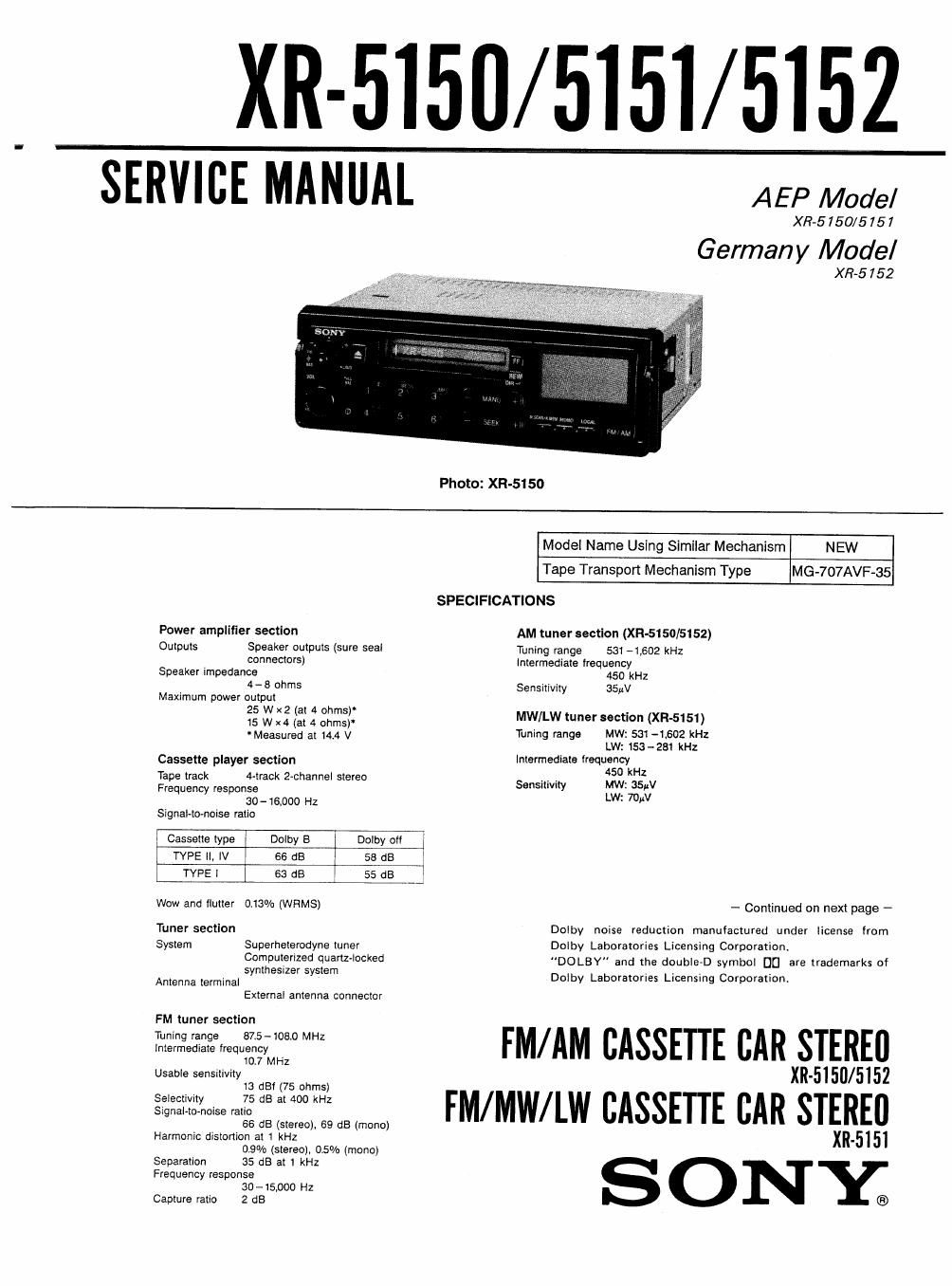

XR-5150/ 5151/ 5152

SERVICE MANUAL

AEP Model

XR-5I50/5757

Germany Model

XR-5 752

Photo: XII-5150

Power amplifier section

Outputs Speaker outputs (sure seal
connectors)

Speaker impedance
4 ~ 8 ohms

Maximum power output
25 W xa (at 4 ohms)
15 W x4 (at 4 ohms)
' Measured at 144 V

Cassette player section

Tape track 4-track 2-channel stereo
Frequency response
Bil-16,000 Hz
Signal-tonoise ratio
Cassette type Dolby B Dolby oit
TYPE II, IV 66 dB 58 dB
TYPE I 63 dB 55 dB

Wow and flutter 0.13% (WFiMS)

Tuner section

System Superneterodyne tuner
Computerized quartz»locked
synthesizer system

Antenna terminal
External antenna connector

FM tuner section
Tuning range 875-1080 MHz
intermediate frequency

10.7 MHZ
Usable sensitivity

13 def (75 ohms)
Selectivity 75 dB at 400 kHz
Signal

66 dB (stereo), 69 dB (mono)
Harmonic distortion at 1 kHz

0.9% (stereo). 05% (mono)

Separation 35 dB at 1 kHz
Frequency response
30- l5,000 Hz

Capture ratio 2 dB

Model Name Using Similar Mechanism NEW
Tape Transport Mechanism Type MG-7o7AVF-35

SPECIFICATIONS

AM tuner section (XE-51505152)

Tuning range 531 -1,602 kHz
Intermediate lrequency

450 kHz
Sensitivity SSW

MW/LW tuner section (XE-5151)

Tuning range MW: 531-1502 kHz
LW: 153 - 281 kHz
Intermediate frequency
450 kHz
Sensitivity MW: 35pV
LW: 70W

- Continued on next page -

Dolby noise reduction manufactured under license from
Doiby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol DC] are trademarks of
Dolby Laboratories Licensing Corporation

EM/AM CASSETTE CAR STEREII

XR-515ll/5152

FM/MW/LW CASSETTE CAR STEREII

XR-5ISI

SONY;

Page 2

XR-5150/51 51/5152

General
Tone controls Bass :8 dB at 100 Hz

Treble :3 dB at to kHz

Loudness +10 dB at 100 Hz
+6 dB at 10 kHz
Output lead Power antenna relay control lead

Power requirements
12 V DC car battery
(negative ground)
Approx. 178 x 50x 154 mm
(w/hld)
not incl. projecting parts and
controls
Mounting dimensions
Approx. 182 x 53 x145 mm
(wlhld)
not incl. projecting parts and
controls
Weight Approx. 1.4 kg
Accessories supplied
Mounling hardware (1 set)

DimenSIons

Design and specifications subject to change wilhoul
notice.

Note for Lithium Battery

CAUTION

Danger of explosion if battery is incorrectly
replaced. Replace only with the same or
equivalent type recommended by the equipment
manufacturer. Discard used batteries according
to manufacturer's instructions

ADVARSEL I

Udskiltning ma ltun ske med balleri
at samme fabrikat og type.
Lever det brugte balleri tilbage til leveranderen.

Lithiumbutlcri~Eksplosionslare ved [cilaglig hAndtering.

ADVARSEL

Lilhiumbatterie Eksplosionsfare.
Ved utskilling benyttes kun hatteri som
anbeialt av apparatiabrikanlen.
Brukt batteri relumeres apparatleverandrzrcn.

VARNING

Explosionsfarn vid ielaktigt batteribyte.
Anvand samma batterityp eller en ekvivalent
typ som rekommenderas av apparattillverkaren.
Kassera anvfmt balteri enlist Iabrikantens
instruktion.

VAROITUS

Parislo voi rajamaa. 505 so on virhcellisesti asennetlu.
Vaihda paristo ainoaslaan lailcvalmislaian suosittelemaan
tyyppiin. Hzivita kdylelty paristo valmistajnn ohieiden
mukaisesti.

TABLE OF CONTENTS


Section M Page
Specifications ..................... . ............ 1
1. GENERAL
Location and Function of Controls . 3
Installation ----- . 4
Connections ............................. 5
Cassette Deck Operation ~ - - . - - 7
Radio Reception ----------- . . 8
2. ADJUSTMENTS
2-1. Mechanical Adjustment - ~ ~ 10
2-2. Electrical Adjustment
- Deck Section _ .............. . . ........ 10
- Tuner Section _ . . ............ . ........ 11
3. DIAGRAMS
3-1. IC Block Diagrams - 13
3-2. Printed Wring Boards - 15
33. Schematic Diagram ........ . . ............. 19
4. EXPLODED VIEWS - 23
5. ELECTRICAL PARTS LIST ~ . ---------- 28
