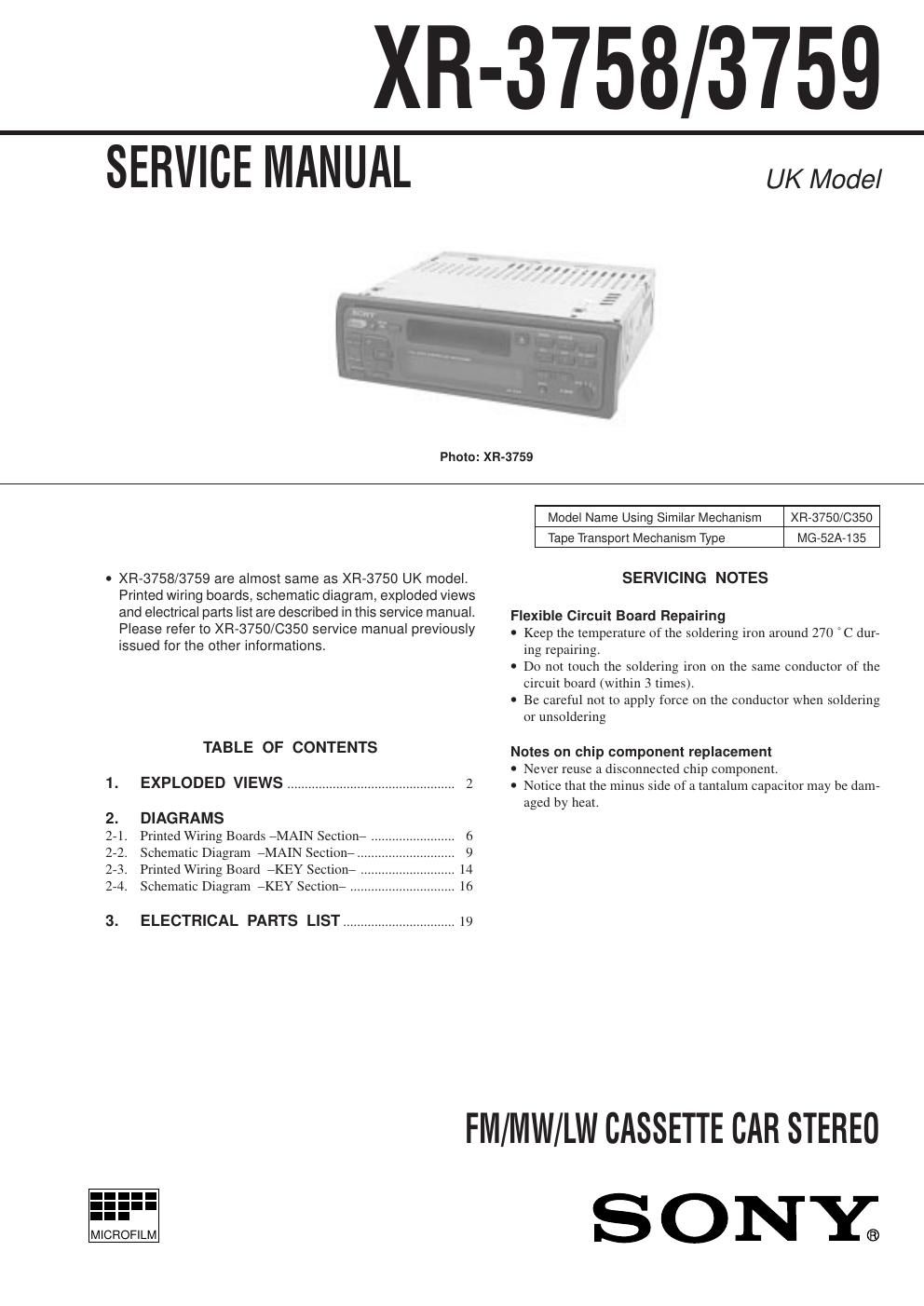

Sony xr 3758 service manual
This is the 14 pages manual for sony xr 3758 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony xr 3758 service manual (Ocr-read)
Page 1
Ð 2 Ð NOTE: ·-XX and -X mean standardized parts, so they may have some difference from the original one. ·Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) Parts Color Cabinet's Color·Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. ·The mechanical parts with no reference num- ber in the exploded views are not supplied. ·Hardware (# mark) list and accessories and packing materials are given in the last of the electrical parts list. SECTION 1 EXPLODED VIEWS Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 3-009-294-01 PANEL, SUB 2 3-935-003-01 SPRING, TORSION 3 3-932-205-21 DOOR, CASSETTE (XR-3758) 3 3-932-205-71 DOOR, CASSETTE (XR-3759) 4 X-3367-636-1 LOCK ASSY *5 3-010-376-01 INSULATOR *6 A-3309-950-A MAIN BOARD, COMPLETE (XR-3759) *6 A-3309-953-A MAIN BOARD, COMPLETE (XR-3758) 7 3-915-923-01 SCREW, GROUND POINT *8 X-3373-504-1 COVER ASSY*10 3-012-264-01 BRACKET (52) *11 3-010-471-01 HEAT SINK 12 9-911-840-XX CUSHION (U) *13 3-009-813-11 CHASSIS (XR-3758) *13 3-009-813-31 CHASSIS (XR-3759) *15 A-3309-913-A CONNECTOR BOARD, COMPLETE (XR-3758) *15 A-3313-078-A CONNECTOR BOARD, COMPLETE (XR-3759) *18 3-012-860-01 CAP (52), RUBBER *19 3-009-816-01 BRACKET (IC) (ISO) F801 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) (10A) (1) CHASSIS SECTION 8 F801 10 #3 MG-52A-135 7 6 5 4 3 Front panel assÕy #2 #3 #3 1 218 #3 13 15 #3 12 #3 19 not supplied #1 #1
Page 2
Ð 3 Ð (2) FRONT PANEL SECTION 53 54 5259 60 62 LCD901 not supplied (KEY board)#5 #5 PL901 65 66 61 51 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 3-009-301-01 BUTTON (BASS) 52 3-010-472-01 BUTTON (L2) (+. Ð) 53 3-009-304-01 BUTTON (RELEASE) 54 3-935-119-01 SPRING (RELEASE) 56 X-3373-702-1 PANEL SUB ASSY (XR-3759) 56 X-3373-703-1 PANEL SUB ASSY (XR-3758) 57 3-009-300-01 BUTTON (SOURCE) 58 3-009-297-11 BUTTON (L) (+ + ). SEEK AMS. = 0 Ð. r. OFF. SEL. MUTE) 59 3-010-473-01 BUTTON (1Ð3) (6. 1. 2. 3) 60 3-010-474-11 BUTTON (4Ð6) (4. 5. 6) 61 3-009-315-01 BUTTON (R) (3) (BTM. LCL. DSPL) *62 3-010-282-01 PLATE (LCD), GROUND *63 3-012-669-01 SHEET (REFLECTOR) *64 3-009-302-01 PLATE (LCD), LIGHT GUIDE *65 3-009-303-02 HOLDER (LCD) 66 3-010-519-01 PANEL, FRONT BACK LCD901 1-801-678-11 DISPLAY PANEL, LIQUID CRYSTAL PL901 1-517-633-21 LAMP, PILOT (LCD BACK LIGHT) PL902 1-517-633-21 LAMP, PILOT (LCD BACK LIGHT) 58 57 56 64 63 PL902
