Sony xr 3740 service manual

This is the 42 pages manual for sony xr 3740 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 42
sony xr 3740 service manual

Extracted text from sony xr 3740 service manual (Ocr-read)

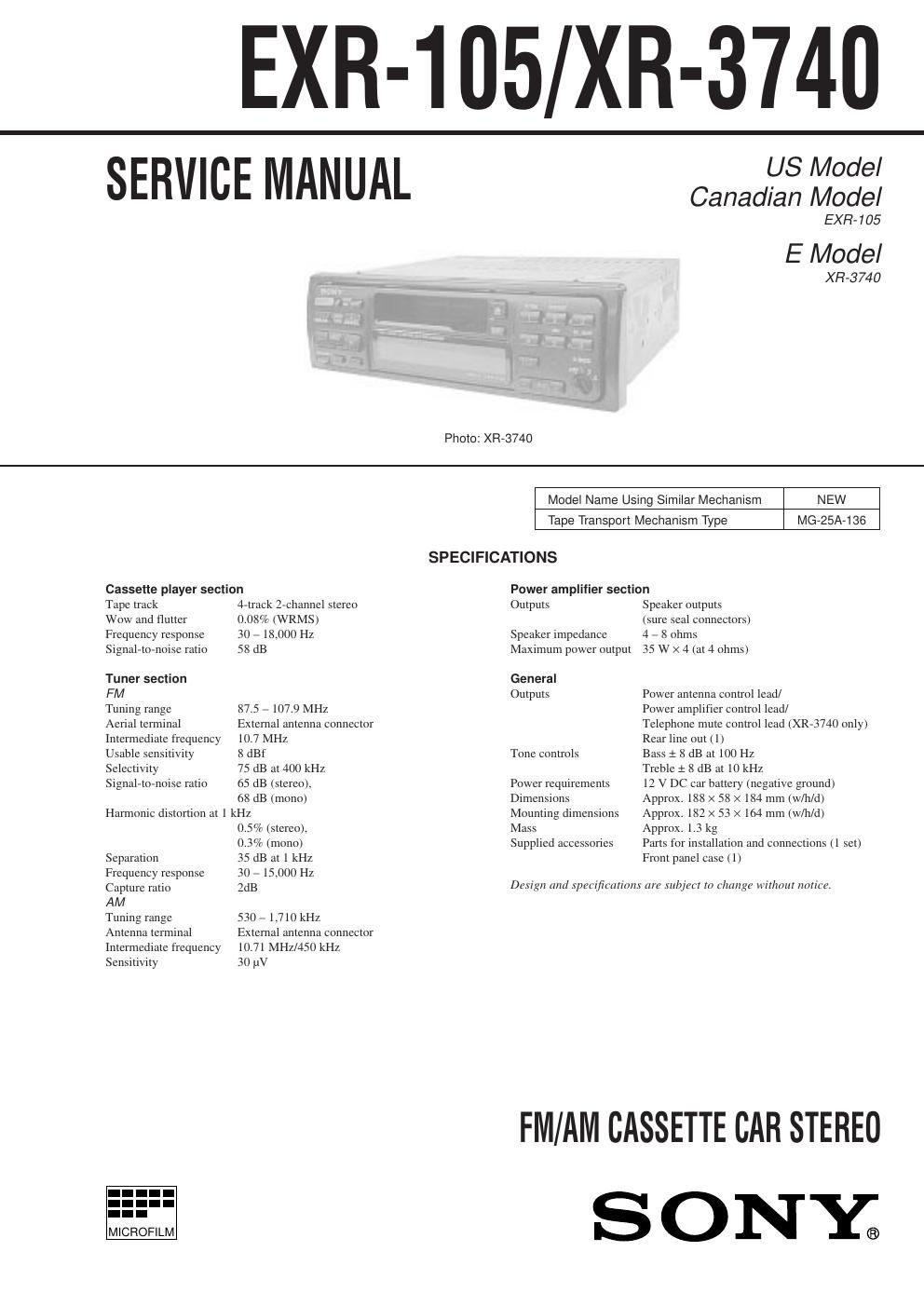

Page 1

Ð 2 Ð TABLE OF CONTENTS 1. GENERAL Location of Controls ........................................................ 3 Getting started ................................................................. 3 Setting the Clock ............................................................. 4 Adjusting the Sound Characteristics ............................... 4 Muting the Sound ............................................................ 4 Changing the Sound and Beep Tone ................................ 4 Installation ....................................................................... 5 Connections ..................................................................... 6 2. DISASSEMBLY .......................................................... 8 3. ASSEMBLY OF MECHANISM DECK ........... 10 4. MECHANICAL ADJUSTMENTS ....................... 13 5. ELECTRICAL ADJUSTMENTS ......................... 13 6. DIAGRAMS 6-1. IC Pin Function Description ............................................ 14 6-2. Printed Wiring Board Ð MAIN Section Ð ....................... 19 6-3. Schematic Diagram Ð MAIN Section Ð .......................... 21 6-4. Printed Wiring Board Ð KEY Section Ð ......................... 25 6-5. Schematic Diagram Ð KEY Section Ð ............................ 27 7. EXPLODED VIEWS ................................................ 29 8. ELECTRICAL PARTS LIST ................................ 32 SERVICING NOTES Flexible Circuit Board Repairing ·Keep the temperature of the soldering iron around 270 û C dur- ing repairing. ·Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ·Be careful not to apply force on the conductor when soldering or unsoldering Notes on chip component replacement ·Never reuse a disconnected chip component. ·Notice that the minus side of a tantalum capacitor may be dam- aged by heat.

Page 2

Ð 3 Ð SECTION 1 GENERAL This section is extracted from instruction manual.
