Sony xr 1700 service manual

This is the 28 pages manual for sony xr 1700 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

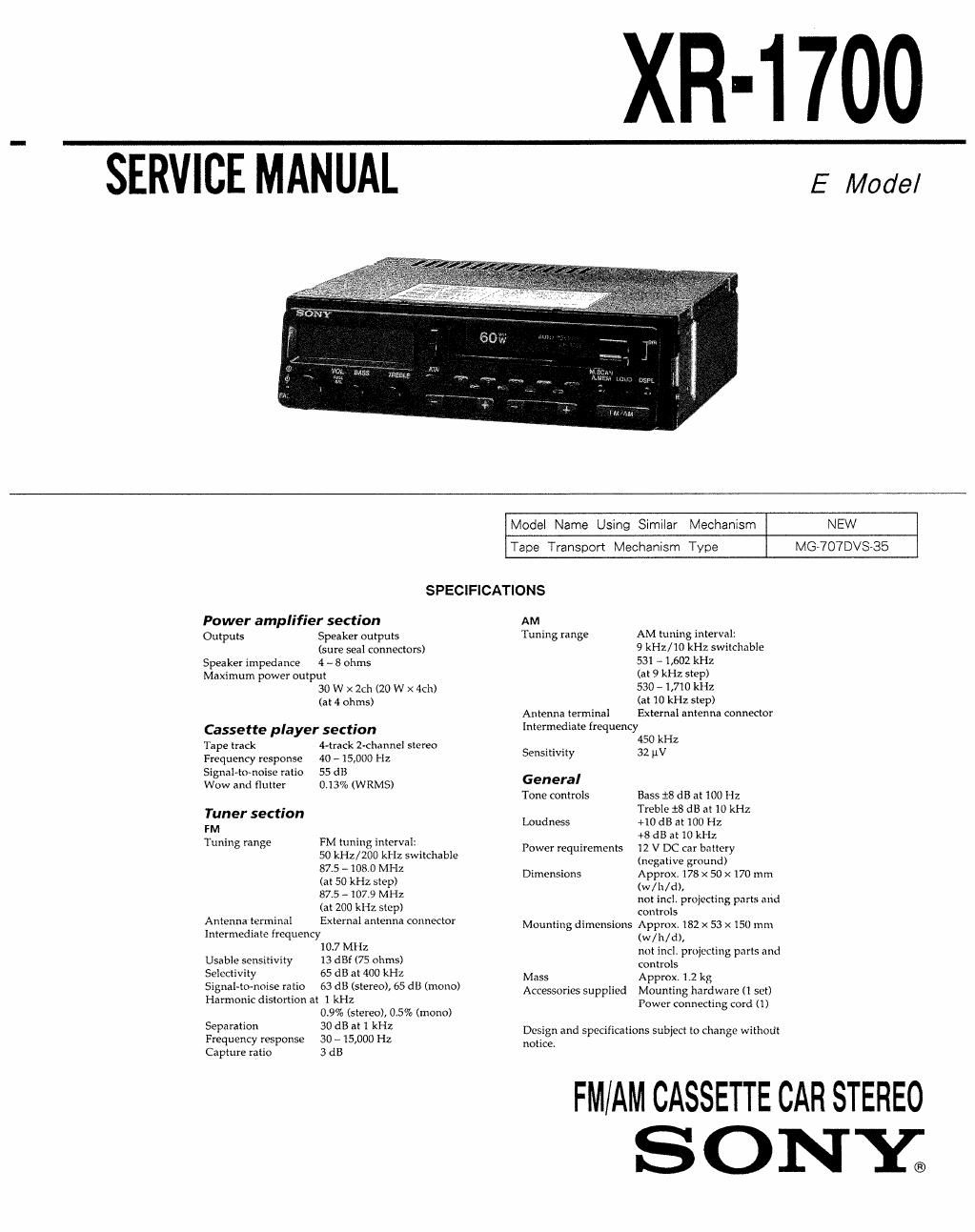

Page: 1 / 28
sony xr 1700 service manual

Extracted text from sony xr 1700 service manual (Ocr-read)


Page 2

TABLE OF CONTENTS

Section Title Page

. GENERAL
Location and Function of Control
Listening to the Tape Playback
Setting the Clock
Tuning in a Station -----------------
Using the Memory Preset Tuning ~~
Installation


Connections~--
2. EXPLANATION OF IC TERMINALS ~~~~~~~~~~~~~~~~~~~~ 8
3. ADJUSTMENTS
3-1. Mechanical Adjustments -------------------------------------- 9
3-2, Electrical Adjustments ......................................... 9

4. DIAGRAMS
4-1, Printed Wiring Boards ..............................
4-2r Schematic Diagram ---------------------------------

..15

..19

5. EXPLODED VIEWS
5-1. Chassis Assembly~l ~~
5-2. Chassis Assembly-
5-3. MD Section~1


5-4, MD Section-2 u
55. MD Section-3 ------------------------------------------- 28
6. ELECTRICAL PARTS LIST ------------------------------- 29

Flexible Circuit Board Repairing

0 Keep the temperature of the soldering iron around
270°C during repairing.

0 Do not touch the soldering iron on the same conduc-
tor of the Cir-onit board (within 3 times),

0 Be careful not to apply force on the conductor when
soldering or unsoldering.

Notes on chip component replacement

0 Never reuse a disconnected chip component.
0 Notice that the minus side of a tantalum capacitor
may be damaged by heat.
