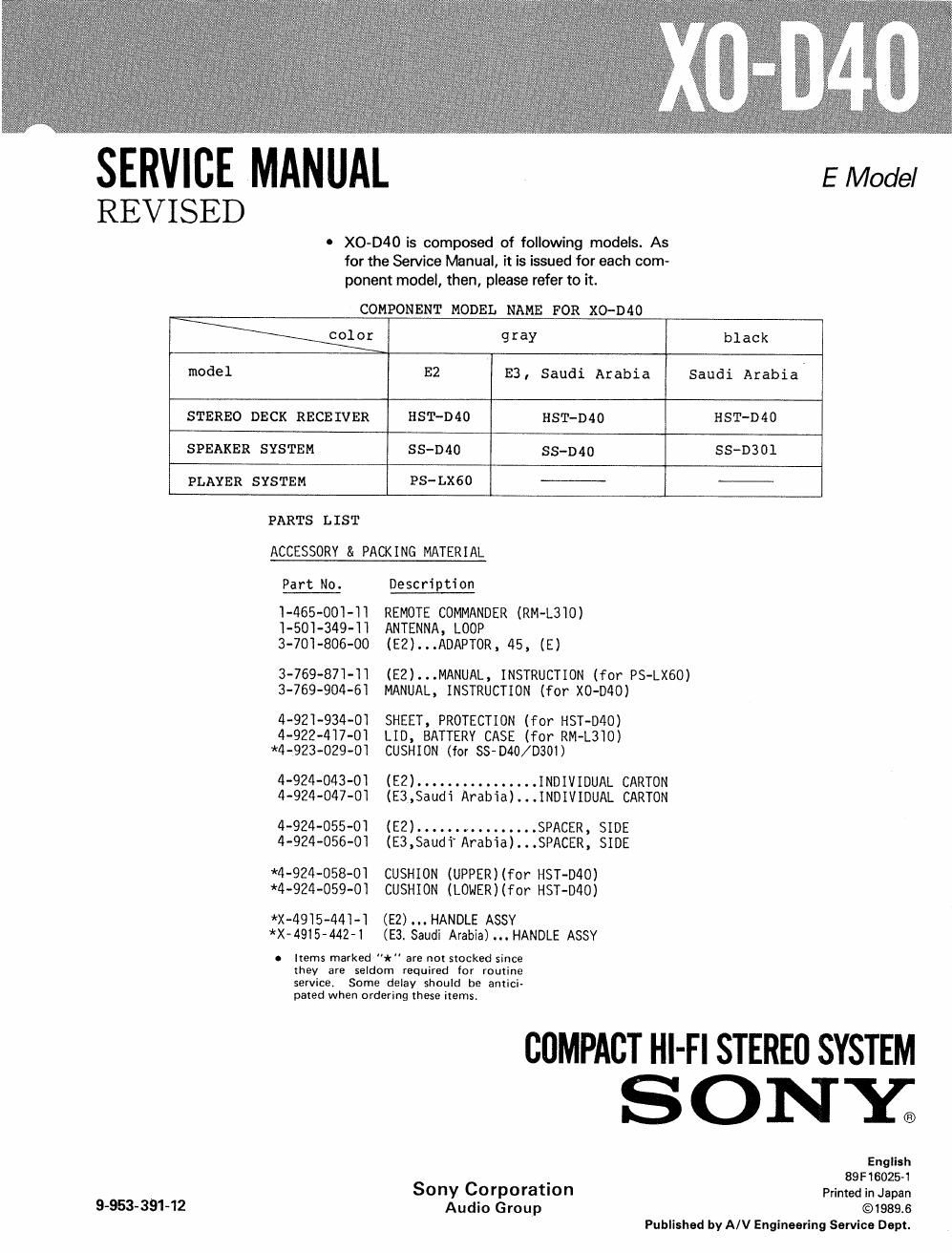

SERVICE MANUAL E Model

REVISED

0 XO-D4O is composed of following models. As
for the Service Manual, it is issued for each com-
ponent model, then, please refer to it.

COMPONENT MODEL NAME FOR X0~D40

color gray black
model E2 E3, Saudi Arabia Saudi Arabia
STEREO DECK RECEIVER HST-D40 HST-D40 HST-D40
SPEAKER SYSTEM SS-DIIO SS~D40 SS-D301
PLAYER SYSTEM PS~LX60
PARTS LIST

ACCESSORY & PACKING MATERIAL

Part No. Description

1-465-OOl-Il REMOTE COMMANDER (RM-L310)
1-501-349-ll ANTENNA, LOOP
3-701-806-00 (E2)...ADAPTOR, 45, (E)

3-769-871-I'l (E2)...MANUAL, INSTRUCTION (for PS-LXGO)
3-769-904-61 MANUAL, INSTRUCTION (for XO-D40)

4-921-934-01 SHEET, PROTECTION (for HST-D40)
4-922-417-01 LID, BATTERY CASE (for RM-L3IO)
*4-923-029-OI CUSHION (for SS»D40/DBOI)

4-924-04301 (E2).......... ...... INDIVIDUAL CARTON
4-924-047-01 (E3,Saudi Arabia)...INDIVIDUAL CARTON
4-924-055-01 (E2) .......... .......SPACER, SIDE

4-924-056-01 (E3,Saudl Arabia). . .SPACER, SIDE

*4-924-058-01 CUSHION (UPPERHfor HST-D40)
*4-924-059-0I CUSHION (LONERHfor HST-D40)

*X-4915-44I-l (E2) ... HANDLE ASSY
*X-4915-442-1 (E3 Saudi Arabia) ... HANDLE ASSY

0 Items marked "*" are not smcked since
they are seldom required for routine
service. Some delay should be antici»

COMPACT Hl-Fl S :REO SYSTEM

SONE

English

. 89F16025-1

Sony Corporatlon Printed in Japan

9-953-391-12 Audio Group ©1989.6

Published by A/V Engineering Service Dept.
