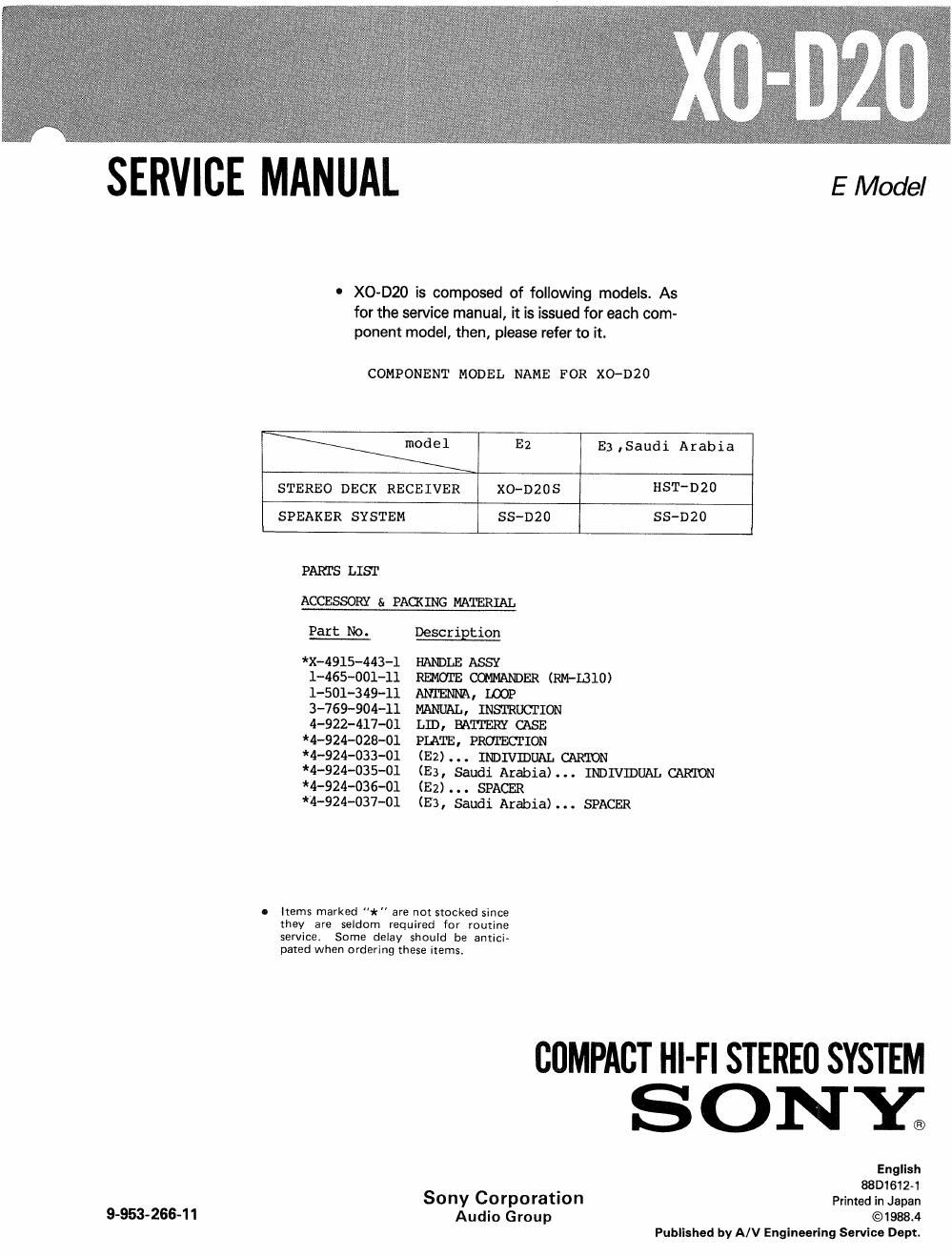

SERVICE MANUAL EModel

0 XO-D20 is composed of following models. As
for the service manual, it is issued for each com-
ponent model, then, please refer to it.

COMPONENT MODEL NAME FOR XO-DZO

model E2 33 ,Saudi Arabia
STEREO DECK RECEIVER XO-DZOS HST-D20
SPEAKER SYSTEM SS-DZO SS-D20

PARTS LIST
ACCESSORY & PACKING MATERIAL

Part No. Description

*X-4915-443-l HANDLE ASSY

1-465-001-11 REMOTE CGTMANDER (RM-L310)
1-501-349-11 Am, LOOP
3-769-904-11 MAME-TL, INSI'RUCIION
4-922-4l7-Ol LID, EK'ITERY (ESE
*4-924-028-01 PLATE, PROI'ECIION
*4-924-033-01 (E2) . . . INDIVIDUAL CAR'ION

*4-924-035-01 (E3, Saudi Arabia) INDIVIDUAL CANON
*4-924-036-01 (E2) . . . SPACER

*4-924-037-01 (ES, Saudi Arabia) SPACER

0 Items marked *" are not stocked since
they are seldom required for routine
service Some delay should be antici-
pzned when ordering these items.

COMPACT HI-FI STEREO SYSTEM

SONY;

English

. 88D1612-l

Sony Corporation Printed in Japan

9-953-266-11 Audio Group ©1988.4

Published by A/V Engineering Service Dept.
